Quick Details
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Application:
-
wood cutting
-
Weight (KG):
-
1500 KG
-
Max.Working Width(mm):
-
1600mm
-
Core Components:
-
machine
-
Name:
-
bandsaw sawmill with electric and diesel engine
-
Max. wood diameter:
-
650mm - 1600mm
-
Band wheel diameter:
-
500mm - 700mm
-
Main Motor power:
-
7.5 kw - 18.5 kw
-
Blade speed: ordinary standard speed:
-
20-25m/s
-
Rail length (standard model):
-
5900mm
-
Keywords:
-
portable horizontal bandsaw sawmill
-
Weight:
-
650kg - 1400kg
-
type:
-
gasoline, diesel and electric
-
Service:
-
we can add tires
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sawmillworld
-
Usage:
-
cutting wood
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Application:
-
wood cutting
-
Weight (KG):
-
1500 KG
-
Max.Working Width(mm):
-
1600mm
-
Core Components:
-
machine
-
Name:
-
bandsaw sawmill with electric and diesel engine
-
Max. wood diameter:
-
650mm - 1600mm
-
Band wheel diameter:
-
500mm - 700mm
-
Main Motor power:
-
7.5 kw - 18.5 kw
-
Blade speed: ordinary standard speed:
-
20-25m/s
-
Rail length (standard model):
-
5900mm
-
Keywords:
-
portable horizontal bandsaw sawmill
-
Weight:
-
650kg - 1400kg
-
type:
-
gasoline, diesel and electric
-
Service:
-
we can add tires
Product Description

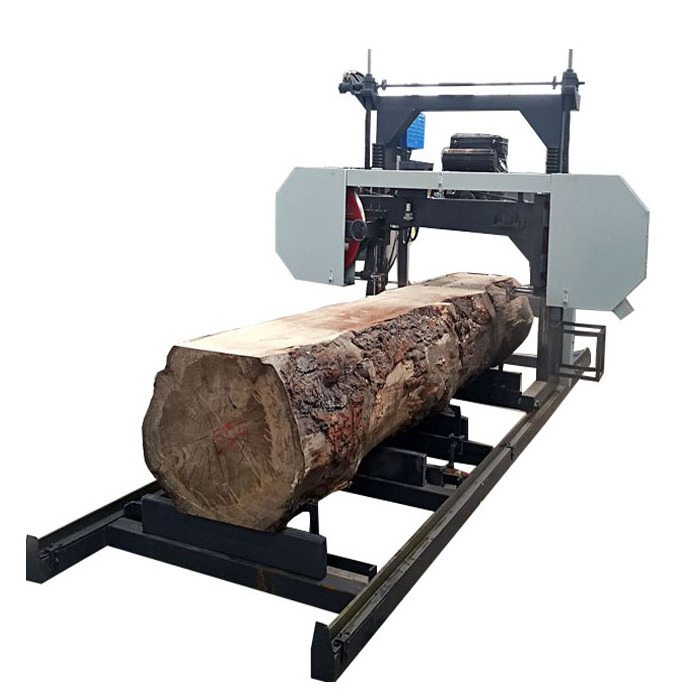

1. SW26 Portable Horizontal Bandsaw Sawmill Machine
2. Portable Horizontal Bandsaw Sawmill with Electric Engine
|
Model
|
MJ700
|
MJ1000
|
MJ1300
|
MJ1600
|
|
Max. wood diameter
|
700mm
|
1000mm
|
1300mm
|
1600mm
|
|
Band wheel diameter
|
600mm
|
700mm
|
700mm
|
700mm
|
|
Max. sawing thickness
|
260mm
|
300mm
|
300mm
|
300mm
|
|
Blade speed: ordinary wood standard speed
|
20-25m/s
|
20-25m/s
|
20-25m/s
|
20-25m/s
|
|
Power output of electric motor
(380V,50Hz,3phase) |
7.5KW , 1.1KW
|
11KW , 1.1KW
|
15KW , 1.1KW
|
18.5KW , 1.1KW
|
|
Rail length (standard model)
|
5900mm
|
5900mm
|
5900mm
|
5900mm
|
|
Total weight(standard model)
|
900KG
|
1100KG
|
1300KG
|
1400KG
|
|
Cooling Water Pressure
|
0.3-0.6PA
|
0.3-0.6PA
|
0.3-0.6PA
|
0.3-0.6PA
|
3. Portable Horizontal Bandsaw Sawmill with Diesel Engine
|
Model
|
MJ700
|
MJ1000
|
MJ1300
|
MJ1600
|
|
Max. wood diameter
|
700mm
|
1000mm
|
1300mm
|
1600mm
|
|
Band wheel diameter
|
600mm
|
700mm
|
700mm
|
700mm
|
|
Max. sawing thickness
|
260mm
|
300mm
|
300mm
|
300mm
|
|
Blade speed: standard
|
20-25m/s
|
20-25m/s
|
20-25m/s
|
20-25m/s
|
|
Max. Length of the wood
|
4500mm
|
4500mm
|
4500mm
|
4500mm
|
|
Power
|
13hp
single cylinder |
22HP
double cylinder |
25HP
double cylinder |
27HP
double cylinder |
|
Rail length
|
5900mm
|
5900mm
|
5900mm
|
5900mm
|
|
Weight
|
900KG
|
1100KG
|
1300KG
|
1400KG
|
Detailed Images
After adding tires, it can be pull by tractor
Load wood device
Electric sawmill can be frequency walking and touch screen setting size
It can be designed to double cutting. the double sides of blade can cut
Extend the rails, it can cut three or more logs once.
Double cylinder
.
Related Products
Band Saw Blade Sharpener and Automatic Sharpener
Band Saw Blade Welding Machine
|
Technical Parameter
|
UN65
|
UN125
|
UN150
|
|
Welding Saw Blade Width (MM)
|
15-60
|
15-125
|
15-150
|
|
Welding Saw Blade Thickness (MM)
|
0.5-1.15
|
0.7-1.25
|
0.7-1.25
|
|
Voltage
|
380V
60 HZ |
380V
60 HZ |
380V
60HZ |
|
Weight (KG)
|
100
|
200
|
250
|
Rolling Machine
|
Main Technique Data
|
MR417
|
MR417-2
|
|
Max Processing Blade Width (MM)
|
150
|
125
|
|
Roll Diameter
|
70mm
|
70mm
|
|
Processing Speed(R/Minute)
|
52
|
52
|
|
Motor Power
|
0.75KW
|
0.75
|
|
Weight
|
150KG
|
80
|
Other tools
