Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ5-63G
-
Max. Current:
-
63A
-
Keywords:
-
Automatic Transfer Switch
-
Product name:
-
Automatic Transfer Switch
-
Product Keywords:
-
ATS
-
Poles:
-
2P/3P/4P
-
Frequency:
-
50/60Hz
-
Marerial:
-
Copper,Iron,DMC
-
Temperature:
-
-5 to 45
-
Warranty:
-
1 Year
-
Operation type:
-
ATS Dual Power Automatic Transfer Switch
-
Lead Time:
-
1-3 Days
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ5-63G
-
Max. Current:
-
63A
-
Keywords:
-
Automatic Transfer Switch
-
Product name:
-
Automatic Transfer Switch
-
Product Keywords:
-
ATS
-
Poles:
-
2P/3P/4P
-
Frequency:
-
50/60Hz
-
Marerial:
-
Copper,Iron,DMC
-
Temperature:
-
-5 to 45
-
Warranty:
-
1 Year
-
Operation type:
-
ATS Dual Power Automatic Transfer Switch
-
Lead Time:
-
1-3 Days
Products Description
Product Paramenters

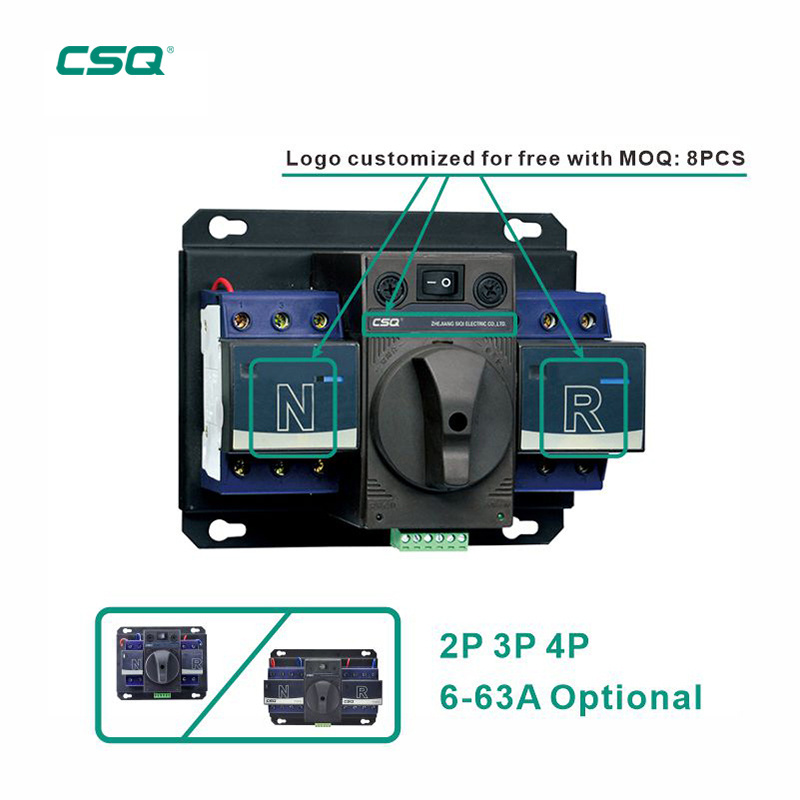

HYCQ5-63G Series Automatic Transfer Switch ( CB type ATS )
1.Application
HYCQ5-63G is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with
AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and
reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one
power to the other power automatically, to ensure normal power supply of load circuits.
The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
2.Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
3. Main parameter
HYCQ5-63G is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with
AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and
reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one
power to the other power automatically, to ensure normal power supply of load circuits.
The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
2.Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
3. Main parameter
|
Rated Current Ie A
|
6,10,16,20,25,32,40
|
50, 63
|
|
|
Electrical Appliances Class
|
CB
|
|
|
|
Use Category
|
AC~33B
|
|
|
|
Tripping Current
|
5~10In (Type C), 10~15In (Type D),
|
|
|
|
Rated voltage Ue
|
220V (2P),380V (3P or 4P)
|
|
|
|
Rated frequency
|
50/60Hz
|
|
|
|
Rated short circuit connecting ability Icm (Peak)
|
9.18KA
|
6.615KA
|
|
|
Rated short circuit breaking ability Icn (effective value)
|
6KA
|
4.5KA
|
|
4. Appearance & Installation Dimension
