Quick Details
-
Place of Origin:
-
Delhi, India, Haryana, India
-
Brand Name:
-
EC, EC
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1200*500*550
-
Model Number:
-
EC -50
-
Packing speed:
-
30 to 50 PPM
-
Material:
-
SS304
-
Machine name:
-

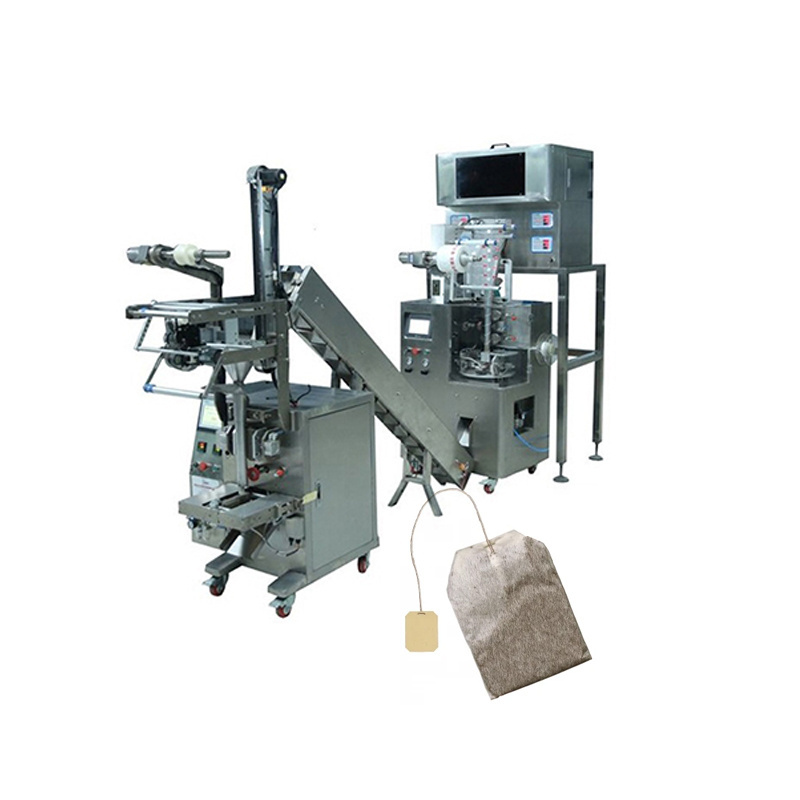

Pyramid Tea Bag Machine
-
Marketing Type:
-
New Product 2020
Quick Details
-
Core Components:
-
Other
-
Voltage:
-
220volts 50HZ
-
Power:
-
4KVA
-
Place of Origin:
-
Delhi, India, Haryana, India
-
Brand Name:
-
EC, EC
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1200*500*550
-
Model Number:
-
EC -50
-
Packing speed:
-
30 to 50 PPM
-
Material:
-
SS304
-
Machine name:
-
Pyramid Tea Bag Machine
-
Marketing Type:
-
New Product 2020
Tea Packing Machine
-
Main Machine : Automatic PLC controller vertical machine FFS (Collar type) for four
-
corner seal (Quad pouch).
-
Filler : Volumetric telescopic Cup filler.
-
Contact Parts : All product contact parts in stainless steel.
-
Machine control : PLC controlled all operations.
-
HMI : Full touch screen colored.
-
No. of Track : Single Track.
-
Sealing Type : Four corner seal (Intermittent).
-
Horizontal sealing : Pneumatically operated.
-
Vertical sealing : Pneumatically operated.
-
Max. Speed : Up to 35 Cycles/min. (depends upon material to be packed & Film-
-
a) Nature of material,
-
b) Quantity to be packed,
-
c) Film roll type,
-
d) Efficiency of Operator.
-
Paper pulling : Intermittent motion by rubberized timing belts Pneumatic controlled,
Induction geared motor
-
Roll unwinding : By induction geared motor.
-
Packing film : 400 mm Max.
roll Dia
-
Packing film : 400 mm Max.
roll width
-
Roll Core Dia : 76 mm.
-
Electrical : 415V AC, 3 Phase, 50Hz, 4 core cable with Earthing.
connected supply
-
Output Speed : 25-30 Pouches per min. in 250 Gms.
-
Pouch style : Four corner sealed with side gusseted pouches.
| Tea Packing Machine | |
| Type | Packing Machine |
| Packaging Type | Pouch |
| Condition | New |
| Automatic Grade | Automatic |
| Application | Food |
| Voltage | 440V, A.C |
| Application | Food |
| Weight | 525kg |
| Place of Origin | India |
