2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
- Product Details
- {{item.text}}
Quick Details
-
Wire diameter:
-
3-10mm
-
Max Wire Feed instruction value:
-
10000.00mm
-
Max Wire Feed speed:
-
100m/min
-
Max Wire Feed length:
-
Infinite length
-
Wire-switching servo motor:
-
5.5KW
-
Axles number:
-
12 axles
-
Total output power of servo motor:
-
59.5KW/67.7Kw
-
Input voltage:
-
380V
-
Program data storage:
-
More than 2000 pcs
-
Pneumatic system (pressure):
-
5-6KG/cm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YINFENG
-
Weight (KG):
-
5500
-
Wire diameter:
-
3-10mm
-
Max Wire Feed instruction value:
-
10000.00mm
-
Max Wire Feed speed:
-
100m/min
-
Max Wire Feed length:
-
Infinite length
-
Wire-switching servo motor:
-
5.5KW
-
Axles number:
-
12 axles
-
Total output power of servo motor:
-
59.5KW/67.7Kw
-
Input voltage:
-
380V
-
Program data storage:
-
More than 2000 pcs
-
Pneumatic system (pressure):
-
5-6KG/cm
Products Description
Product advantages 1

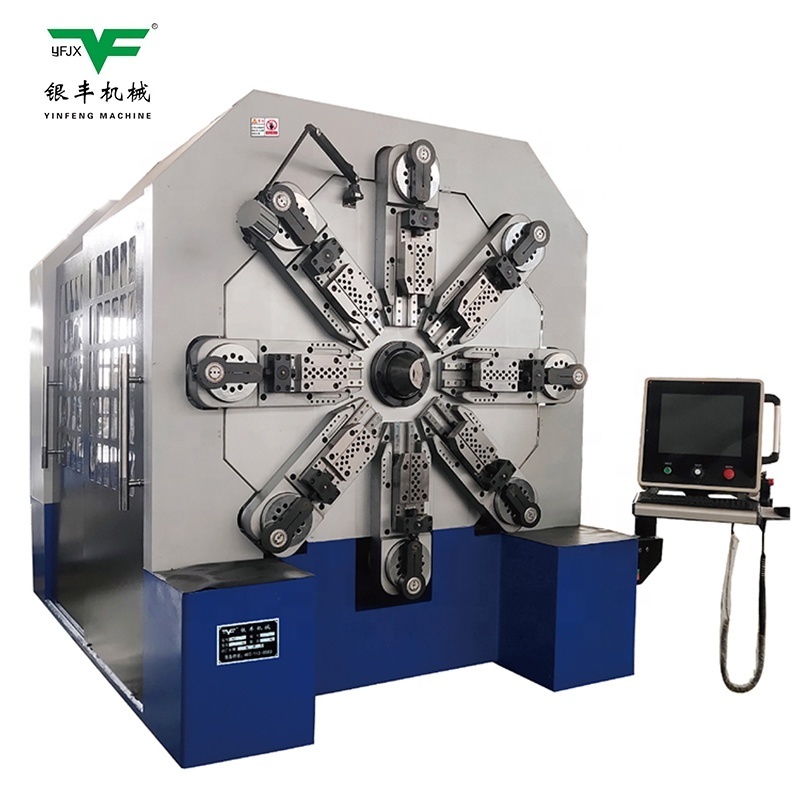

The Multiple axes CNC spring machine can be produced (0.2-10.0mm wire diameter). The camless wire spring machine adopts a unique camless and rockerless design, which is independently controlled by multiple sets of servo motors, and each station has a separate servo drive.
Product advantages 2
The crimping function has a detachable installation function, which has a faster processing speed for corner processing and arc bending. wire transfer system solves the fact that the entire wire feed of the spring machine can be rotated 360 degrees in the forward and reverse directions during the wire feed process.
Product advantages 2
Achieve Multiple angle forming and cutting, etc.,in order to facilitate the completion of the various types of spring samples and production you require.
Wide range of applications: electronics, toys, electrical appliances, sports equipment, cars, tableware, supermarkets, stationery, apparatus, instruments, hair ornaments, crafts and so on.
Automatic material feed frame
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
Varied Material Application
aluminum Flat Wire
Square Wire
Flat Copper Tube
Copper Wire
Iron Wire
Steel Wire
Optional Tools
Spinner Device
Axis
Servo Motor Cutter Axis
Sharpening Device
Axis
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Manufacturing Product Videos
Product Paramenters
|
Model
|
CNC-1280
|
CNC-12100
|
|
Wire diameter
|
Φ3.0-Φ8.0mm
|
Φ5.0-Φ10.0mm
|
|
Max Wire Feed instruction value
|
10000.00mm
|
10000.00mm
|
|
Min Wire Feed instruction value
|
0.01mm
|
0.01mm
|
|
Max Wire Feed speed
|
100m/min
|
80 m/min
|
|
Max Wire Feed length
|
Infinite length
|
Infinite length
|
|
Axles number
|
12 axles
|
12 axles
|
|
Total output power of servo motor
|
59.5KW
|
67.7Kw
|
|
Input voltage
|
380V
|
380V
|
|
Program data storage
|
More than 2000 pcs
|
More than 2000 pcs
|
|
Pneumatic system (pressure)
|
5-6KG/cm
|
5-6KG/cm
|
|
Pneumatic system (probe)
|
3pcs
|
3pcs
|
|
Machine sizes
|
2500x3100x2500mm
|
2500x3100x2500mm
|
|
Machine weight
|
5500KG
|
5500KG
|
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
