The C9300 Series switches are brand lead stackable enterprise switching platform built for security, IoT,mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. C9300 Series switches form the foundational building block for Software-Defined Access (SD-Access),brand lead enterprise architecture.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZCO C9300L-24P-4G-E
-
Model Number:
-
C9300L-24P-4G-E
-
Place of Origin:
-
Beijing,China
-
Product Name:
-
C9300L-24P-4G-E Switches
-
Condition:
-
NIB Original C9300L-24P-4G-E
-
Enclosure Type:
-
Rack-mountable
-
Subtype:
-
Gigabit Ethernet
-
Type:
-
1000Base-T C9300-24T-A
-
Port/Expansion Slot Details:
-
24 x PoE+ 4 x 10 Gigabit Ethernet Uplink
-
Jumbo Frame Support:
-
9198 bytes C9300L-24P-4G-E
-
Encryption Algorithm:
-
128-bit C9300L-24P-4G-E
-
Warranty:
-
1-year C9300L-24P-4G-E
-
Network Technology:
-
10GBase-X
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
128 Gbps
-
Brand Name:
-
ZCO C9300L-24P-4G-E
-
Model Number:
-
C9300L-24P-4G-E
-
Place of Origin:
-
Beijing,China
-
Product Name:
-
C9300L-24P-4G-E Switches
-
Condition:
-
NIB Original C9300L-24P-4G-E
-
Enclosure Type:
-
Rack-mountable
-
Subtype:
-
Gigabit Ethernet
-
Type:
-
1000Base-T C9300-24T-A
-
Port/Expansion Slot Details:
-
24 x PoE+ 4 x 10 Gigabit Ethernet Uplink
-
Jumbo Frame Support:
-
9198 bytes C9300L-24P-4G-E
-
Encryption Algorithm:
-
128-bit C9300L-24P-4G-E
-
Warranty:
-
1-year C9300L-24P-4G-E
-
Network Technology:
-
10GBase-X
Product Description
C9300L-24P-4G-E
OVERVIEW
Built for security, IoT, mobility, and cloud
Details Images
The C9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.
Technical parameter list:
|
Model Number
|
C9300L-24P-4G-E
|
|
Device Type
|
9300L 24p PoE, Network Essentials ,4x1G Uplink
|
|
Condition
|
NIB Original
|
|
|
Switching capacity: 56 Gbps
Stacking bandwidth: 320 Gbps Switching capacity with stacking: 376 Gbps Forwarding rate: 41.66 Mpps Forwarding rate with stacking: 279.76 Mpps |
|
Capacity
|
IPv4 routes: 32000
IPv6 routes: 16000 Multicast scale: 8000 QoS scale entries: 5120 ACL scale entries: 5120 VLANs supported: 4094 FNF entries: 64000 Switched virtual interfaces (SVIs): 1000 Packet buffer size: 16 MB Virtual networks: 64 |
|
Safety certifications
|
● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
|
Electromagnetic emissions certifications
|
● 47 CFR Part 15 ● CISPR22 Class A
● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3
● ICES-003 Class A ● TCVN 7189 Class A
● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024
● TCVN 7317
|
|
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
Packing & Delivery

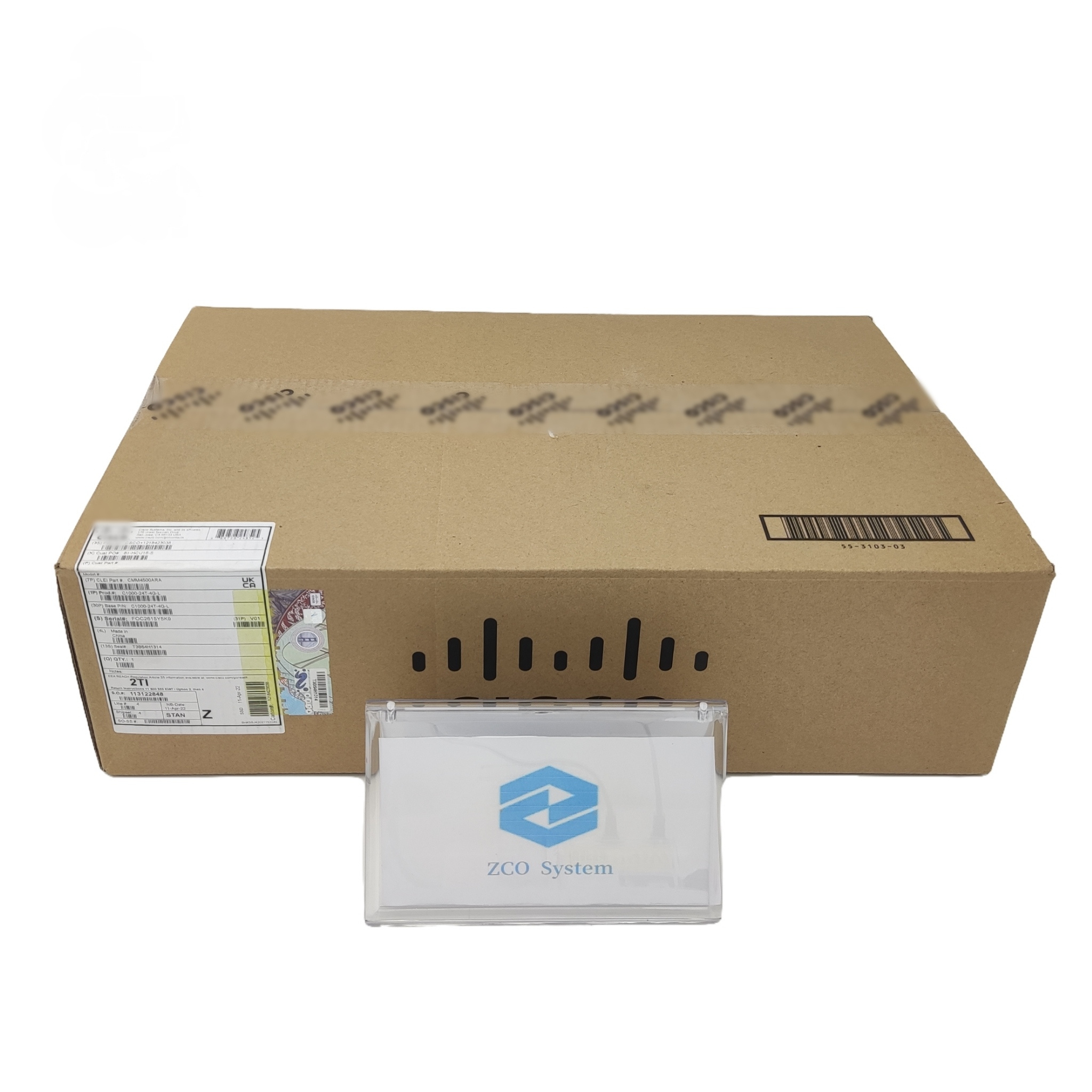

1.AII products are sealed in original box.
2.We will also pack them with another Carton box before shipping.
3. Professional packaging to make sure the goods arriving safely.
4.Goods will bo shipped out tho same day once the order confirmed.
5.We have cooperation with DHL,Fedex,Aramex,UPS,TNT and other special line logistics.
2.We will also pack them with another Carton box before shipping.
3. Professional packaging to make sure the goods arriving safely.
4.Goods will bo shipped out tho same day once the order confirmed.
5.We have cooperation with DHL,Fedex,Aramex,UPS,TNT and other special line logistics.
