Quick Details
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD
-
Accuracy:
-
0.5, 0.2, 0.3, 0.4
-
Minimum flow rate::
-
0.01m / s
-
Reynolds Scope::
-
500~1x107
-
Operating temperature ::
-
-0.1 ~ 42MPa
-
Working pressure::
-
500mpa.s or higher
-
Protection class:
-
IP65
-
Pipe Size:
-
DN10mm ~ DN1200mm
-
Voltage:
-
24VDC
-
Long-term stability::
-
± 0.2% F.S / Y
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 YEAR, 20 months
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD
-
Accuracy:
-
0.5, 0.2, 0.3, 0.4
-
Minimum flow rate::
-
0.01m / s
-
Reynolds Scope::
-
500~1x107
-
Operating temperature ::
-
-0.1 ~ 42MPa
-
Working pressure::
-
500mpa.s or higher
-
Protection class:
-
IP65
-
Pipe Size:
-
DN10mm ~ DN1200mm
-
Voltage:
-
24VDC
-
Long-term stability::
-
± 0.2% F.S / Y

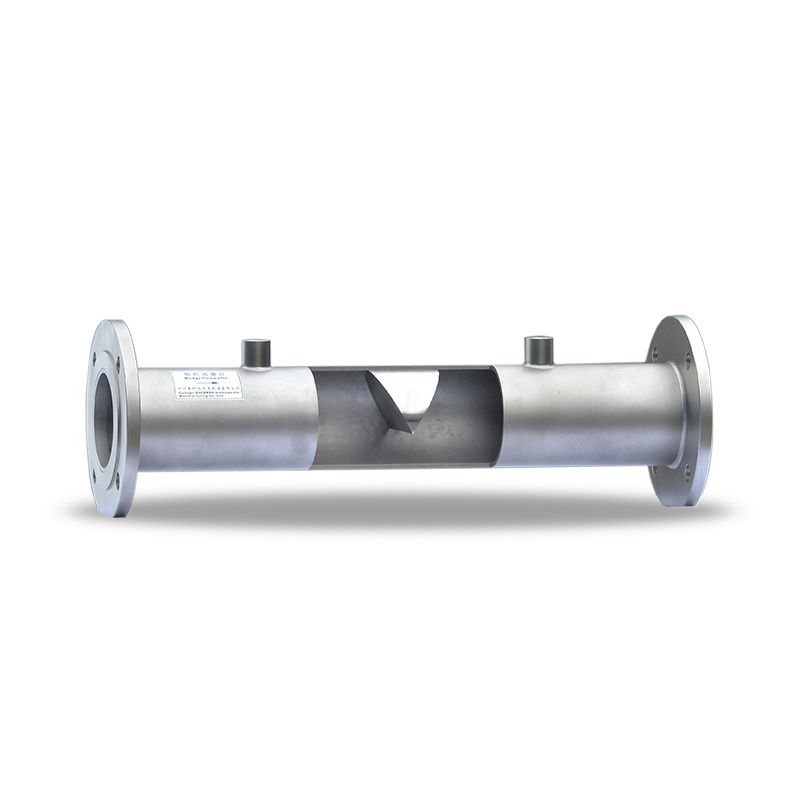

Industrial wedge flow meter for nitric acid
Wedge-shaped flowmeter is new style differential pressure flow instrument of our company, which is consist of flow sensor and differential pressure transmitter. It has already made up the gap that domestic measuring domain have no flowmeter that can measure city gas with large-scale change(flow change can be dozens of times with the change of time) and natural gas; Which has solved the flow measuring difficulty of pix, pitch, residue oil, paraffinic oil and all kinds of mediums with high viscosity. Besides, it is also widely used in measuring those enterprises with strong causticity , those saturated or oversaturated acid, alkaline, and saline liquid will separate out crystallization with the change of temperature.
Product features
1. Simple structure, good stability and reliability.
2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.
3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.
4. Interface measurement or level measurement of 2 kinds of medium with different density.
5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.
Product Parameters
|
(1)
Long-term stability:
|
± 0.1% F.S / Y |
|
(2) Output: |
4~20mA |
|
(3)
Repeatability:
|
± 0.2% |
|
(4)
Minimum flow velocity:
|
0.01m/s |
|
(5) Medium viscosity: |
500mpa.s or higher |
|
(6)
Reynolds number range:
|
500~1x10 7 |
|
(7)
Operating pressure:
|
-0.1 ~ 42MPa |
|
(8)
Operating temperature:
|
-160 °C ~ 450 °C (special up to 700 °C) |
|
(9) Pipe size: |
DN10mm ~ DN1200mm (special up to 2500mm) |
|
(10) Wedge ratio h/d: |
0.2, 0.3, 0.4, 0.5 |
