Quick Details
-
Voltage:
-
Customers Local Voltage
-
Power:
-
Multi Power
-
Dimension(L*W*H):
-
Customized Size
-
Warranty:
-
1 Year
-
Equipment Name:
-
PVD Vacuum Chrome Plating Plastic Metalizing Coating Machine
-
Coating Method:
-
Vacuum base aluminum evaporation
-
Size of vacuum chamber:
-
Customized
-
Coating Original Color:
-
Silver
-
Application:
-
Metal like decorative coating
-
Available Industries:
-
Toy, advertisement decorations, gifts, etc
-
Holder Movement:
-
Public-self spining, hanging type
-
Water supply:
-
Chiller
-
Certification:
-
CE
-
Weight:
-
3-12 TONS
Quick Details
-
Machine Type:
-
Customized PVD coating machine
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Hongfeng VAC
-
Voltage:
-
Customers Local Voltage
-
Power:
-
Multi Power
-
Dimension(L*W*H):
-
Customized Size
-
Warranty:
-
1 Year
-
Equipment Name:
-
PVD Vacuum Chrome Plating Plastic Metalizing Coating Machine
-
Coating Method:
-
Vacuum base aluminum evaporation
-
Size of vacuum chamber:
-
Customized
-
Coating Original Color:
-
Silver
-
Application:
-
Metal like decorative coating
-
Available Industries:
-
Toy, advertisement decorations, gifts, etc
-
Holder Movement:
-
Public-self spining, hanging type
-
Water supply:
-
Chiller
-
Certification:
-
CE
-
Weight:
-
3-12 TONS
PVD Vacuum Chrome Plating Plastic Metalizing Coating Machine
Vacuum metallization is a form of physical vapor deposition, meaning that metal is combined with a non-metallic substrate through evaporation. Aluminum is the most commonly used metal in the process due to its aesthetic and functional properties.

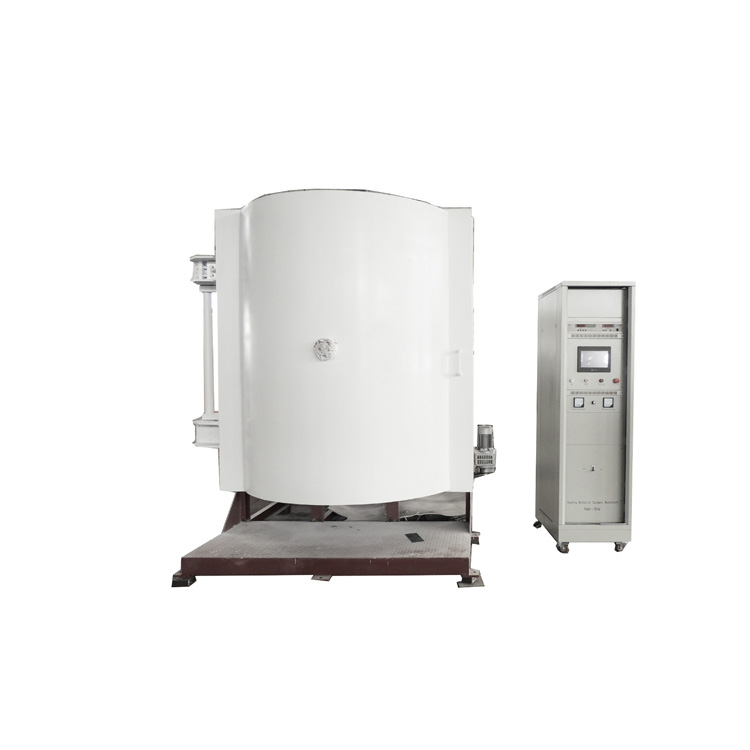

| Photos of the vacuum metallizing machine |
| Structure of the Evaporation Metallizing Machine |
1. Vacuum Metallizing Machine - Technical Specifications:
| Mode | EV-1000 | EV-1200 | EV-1600 | EV-1800 |
| Dimension | D1000*H1100mm | D1200*H1400mm | D1600*H2000m | D1800*H2000m |
| Main Applications | Plastic or glass metallizing, decorative coatings | |||
| Coating System | Evaporation Coating System with high power transformer | |||
| Vacuum chamber structure | Vertical chamber front opening door, one or two doors, as well as two chambers optional | |||
| Pumping system |
Diffusion pump(Molecular pump) +Roots pump +Mechanical pump
(5.0*10-4Pa) |
|||
| Workpiece Carousel | Public rotation Frequency control: 0-20RPM | |||
| Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa | |||
| Control mode | Manual/Automatic work mode by PLC touched screen | |||
| Remark |
We can make the machine according to customer’s requirements. |
|||
2. Vacuum Metallizing Machine - Configurations:
|
Machine parts list |
|||
|
No |
Item |
Brand |
Origin |
|
1 |
Vacuum chamber |
Hongfeng VAC |
China |
|
2 |
Vacuum pumps |
Diffusion pump + Roots pump + Mechanical Pumps |
China |
|
3 |
Pipeline |
For connecting the vacuum pumps |
China |
|
4 |
Coating system (Can be hybrid) |
Vacuum Metallizing System |
China |
|
5 |
Controlling system |
Touched screen PLC automatic controlling system |
China |
|
Manual controlling system |
China |
||
|
6 |
Power supply |
High power transformer for vacuum metallizing |
China |
|
7 |
Water recycling system |
For the diffusion pump or cathodes |
China |
|
8 |
Pretreatment machine |
Air Compressor, Chiller, (UV) Painting & Coloring Line |
China |
Note: We can provide the complete solutions for this whole process.
