Quick Details
-
Model Number:
-
ED1716-N
-
Place of Origin:
-
Guangdong, China
-
Front Panel:
-
LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch
-
Excellent video effect:
-
Excellent video effects, the best resolution is up to1280*1024 75HZ
-
Support:
-
Support DDC2B
-
Ports:
-
Dual interface PS / 2 , USB keyboard and mouse
-
Dimension:
-
D570xW445xH44mm
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
1280 x 1024
-
Brand Name:
-
EDNSE
-
Model Number:
-
ED1716-N
-
Place of Origin:
-
Guangdong, China
-
Front Panel:
-
LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch
-
Excellent video effect:
-
Excellent video effects, the best resolution is up to1280*1024 75HZ
-
Support:
-
Support DDC2B
-
Ports:
-
Dual interface PS / 2 , USB keyboard and mouse
-
Dimension:
-
D570xW445xH44mm

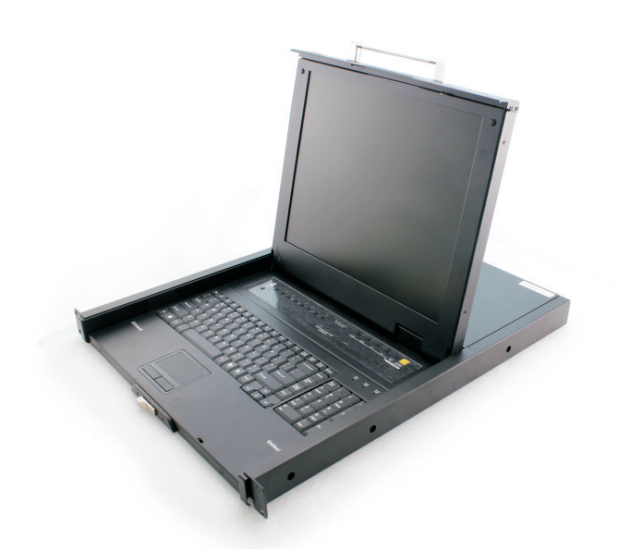

model:ED1716-N
·Dual interface PS / 2 , USB keyboard and mouse are connected to control computer or server
·Support DDC2B
·Password security protection
·Withdrawing installation design
- To switch the host computer though the hotkey or OSD menu
·LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
·Excellent video effects, the best resolution is up to1280*1024 75HZ.
·Support DDC2B.can detect the screen model without switching the computer.
·Dual interface PS / 2 , USB keyboard and mouse are connected to control computer.
·Withdrawing installation design, the length can be adjusted to fit the rack space.
·Humanized design , can be installed and removed by only one person.which improves the efficiency of the administrator.
·To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
·Password security protection, only authorized users can view and manage on-line computer.
·Support a variety of brand industrial computer and the server , such as Siwei,EVOC,Lenovo,IBM,DELL,HP,SUN,etc.
·Support various operating system: Microsoft, Linux, Unix, etc.
Specifications:
|
Model:
|
KVM-ED1701-N
KVM-ED1704-N
KVM-ED1708-N
KVM-ED1716-N
|
|
Computer Connections:
|
Direct 1, Max: 4 Direct 4, Max: 128 Direct 8, Max: 256 Direct 16, Max: 512
|
|
Cable port:
|
D-SUB15 (LCD, PS11 keyboard, mouse),OSD switch Support
|
|
Switch mode:
|
Hotkey, OSD
|
|
Switch Scan Time:
|
1-255 second (OSD adjustable)
|
|
LCD Display:
|
17” TFT LCD Resolution : 1280*1024 Brightness:300nits Contrast: 700:1
|
|
Keyboard/Mouse:
|
104 Mechanical mute Keyboard Touchpad
|
|
Input:
|
AC100-240V 47-63Hz, 35W
|
|
Cabinet Material:
|
high-strength and Anti-corrosive steel plate
|
|
Color :
|
Insulated black paint (other colors optional)
|
|
Dimension (D x W x H):
|
D570xW445xH44mm
|
|
Weight:
|
20.6- 25.3KG
|
|
For cabinet:
|
800-1040mm
|
|
Storage temperature:
|
-30°C~70°C
|
|
work temperature:
|
-10°C~60°C
|
|
Humidity:
|
0%-80%RH
|
|
Certificate:
|
CCC, FCC, CE
|
Ordering information:
1
:
KVM-ED1701-N 17"TFT LCD/Keyboard/Touchpad/100~240V AC Power
2
:
KVM-1704-N 17"TFT LCD/Keyboard/Touchpad/100~240V AC Power/4 Port Switch
3
:
KVM-1708-N 17"TFT LCD/Keyboard/Touchpad/100~240V AC Power/8 Port Switch
4
:
KVM-1716-N 17"TFT LCD/Keyboard/Touchpad/100~240V AC Power/16 Port Switch
Accessories:
| Accessories\Model | ED1701-N | ED1704-N | ED1708-N | ED1716-N |
| Rail kit | x1 | x1 | x1 | x1 |
| connecting cable(network port to VGA)(optional)/USD15/PCS | x1 | x4 | x8 | x16 |
| power cord | x1 | x1 | x1 | x1 |
