Quick Details
-
Color:
-
red
-
Panel Size:
-
37.8*21.1mm, 37.8*21.1mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
14 segment alphanumeric led display
-
name:
-
0.54 inch 14 segment alphanumeric 3 digit led display
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
FULL COLOR
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,green,blue,white etc
-
Warranty:
-
2 Years
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
JSTRONIC
-
Color:
-
red
-
Panel Size:
-
37.8*21.1mm, 37.8*21.1mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
14 segment alphanumeric led display
-
name:
-
0.54 inch 14 segment alphanumeric 3 digit led display
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
FULL COLOR
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,green,blue,white etc
-
Warranty:
-
2 Years

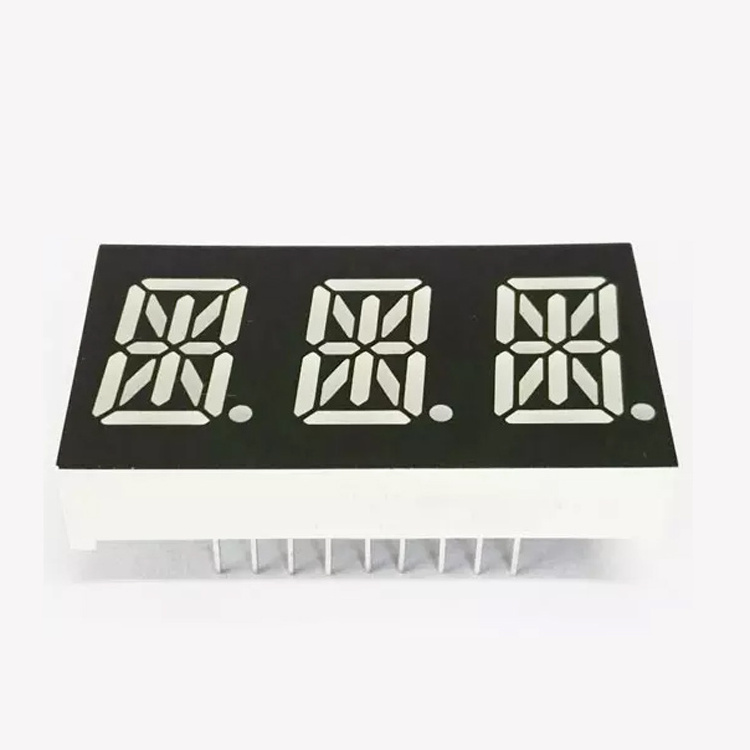

Ultra bright red 0.54 inch 14 segment alphanumeric 3 digit led display
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
Super bright 0.54 inch 3 digit led 14 segment display
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number |
EMITTED COLOR |
Peak Wavelength (mn) |
Vf(V) |
Iv( mcd ) |
|||
|
Common Cathode |
Common Anode |
Type |
Max |
Min |
Typ |
||
|
JS3-5431AUR |
JS3-5431BUR |
AlGaInP/GaAs Super red |
635 |
2.0 |
2.5 |
10 |
20 |
|
JS3-5431AUE |
JS3-5431BUE |
AlGaInP/GaAs Ultra red |
620 |
2.0 |
2.5 |
40 |
80 |
|
JS3-5431AUA |
JS3-5431BUA |
AlGaInP/GaAs Ultra Amber |
605 |
2.0 |
2.5 |
40 |
60 |
|
JS3-5431AUY |
JS3-5431BUY |
AlGaInP/GaAs Ultra Yellow |
590 |
2.0 |
2.5 |
40 |
60 |
|
JS3-5431AUG |
JS3-5431BUG |
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
10 |
15 |
|
JS3-5431APG |
JS3-5431BPG |
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
150 |
200 |
|
JS3-5431AUB |
JS3-5431BUB |
InGaN/Sic Ultra Blue |
470 |
3.2 |
3.8 |
40 |
50 |
|
JS3-5431AUW |
JS3-5431BUW |
InGaN/Sic Ultra White |
x-0.31/y-0.31 |
3.2 |
3.8 |
200 |
400 |
Absolute Maximum Ratings at Ta=25 ℃
Characteristic |
Symbol |
UR |
UE |
UA |
UY |
UG |
PG |
UB |
UW |
Unit |
|
Pulse Forward Current Per Seg. |
I FP |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
mA |
|
DC Forward Current Per Seg |
I F |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
mA |
|
Reverse Current Per Seg. |
I R |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
uA |
|
Power Dissipation |
P D |
36 |
40 |
42 |
42 |
44 |
66 |
66 |
66 |
mA |
|
Operation Temperature |
T OPR |
-40 to +80 |
℃ |
|||||||
|
Storage Temperature |
T STG |
-40 to +85 |
℃ |
|||||||
|
Lead Soldering Temperature |
|
260 |
℃ |
|||||||
0.54 inch 2 digit led 14 segment display also available
1.We can supply you all kinds of led 7 segment display
---Digit Size: From 0.25" to 16"
---Digit Number: 1,2,3,4,5 to 6 digits
2.7 Segment and 14 Segment both avaliable.
3.Available Color :red,yellow,amber,blue,green,white,bicolor.
4.Available Surfacce color: Grey or Black.
5.Lens Color :White diffused or same as emiting color diffused.
1). Household eletronics-----DVD/VCD player, Induction cooker, Micro-wave oven, Air-conditioner, E-fan, Washing machine, Soya-bean milk machine,etc.
2). Factory/company equipment-------Instrument panels, Digital read out display, Calendar, Smart meter, Electronic scale,etc.
3). Elevator/lift, Bank exchange rate display, Led clock display, Led oil price display for gas satation and other different display areas of equipment/machine.
Ningbo Junsheng Electronics Co., Ltd. was founded in 2008. We are specialized in
high quality LED Light source and LED components including research, development, production and marketing. We also provide LED Lighting Solution and OEM service to help customer making high cost perfomance products.
Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.
Jstronic will work with you to fullfill your requirements strive to meet your targets .
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please "send" now
