Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12B
-
Diameter:
-
12mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK08
-
Rated Voltage/Current:
-
AC250V/1A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
micro push button switch
Quick Details
-
Protection Level:
-
IP65/IK08
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12B
-
Diameter:
-
12mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK08
-
Rated Voltage/Current:
-
AC250V/1A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
micro push button switch
| Model Description | |

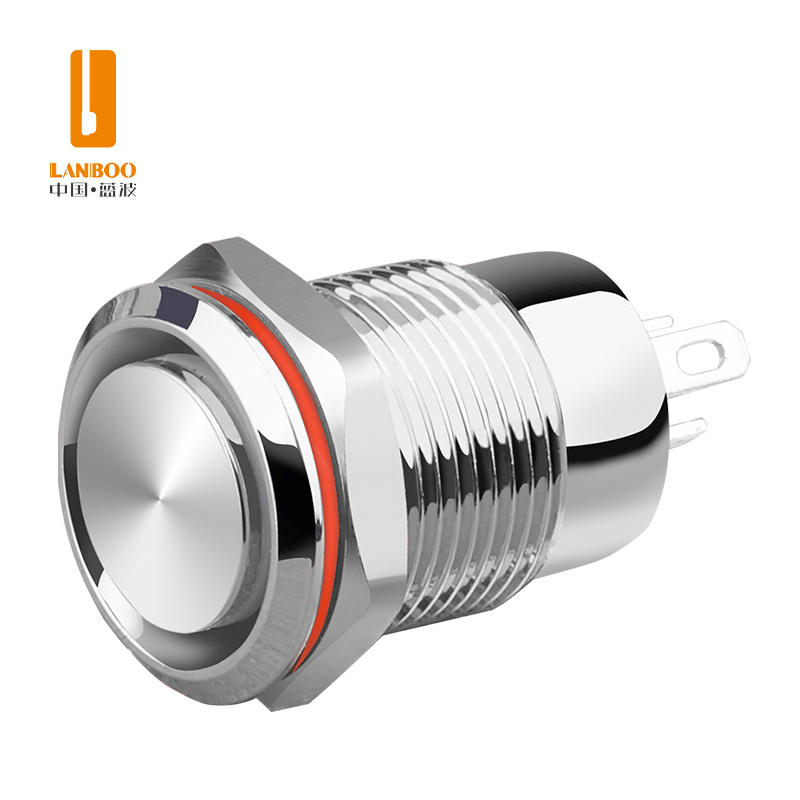

| Model NO. | LB-12B metal push button switch |
| Mounting diameter | 12MM |
| Head shape | Plat Head |
| Switch Combination | 1NO |
| Operation type | Momentary/self locking |
| Illuminating type | Annular,power symbol |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.2mm,Total:2.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 4N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤8mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~10N.m |
| Ambient Temperature | -30℃~+80℃ |
Outshell/Press Key
|
Stainless Steel/aluminum oxide/copper plate
|
| Protection Levels | IK08 | Diffuser | PC |
| Electrical Life |
Rated:0.2A 24VAC- 100,000 cycles Rated:2A24VAC-50,000 cycles
|
Nut
Base Seat/ Bottom Seat |
Nickel brass
PA66 |
| Mechanical Life |
Maintained-200,000 cycles Self-locking-600,000 cycles |
Pins Contact |
PA66 H65 Silver Plated |
| Waterproof | IP65 | Spring | Improved steel wire |
| Switch Rated Load | |||||
|
Project |
Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 2A | ||||
| Rated Voltage | DC24V | AC220V | |||
| Rated Current | Nonreactive Load | 1 | 1 | ||
| Inductive Load | 0.5 | 0.5 | |||
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
