Quick Details
-
Max. Wheel Weight:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
3D-718S
-
Warranty:
-
12 Months
-
Product Name:
-
3d wheel aligner car lift hoist tire changer and wheel balancer combo
-
Color:
-
Customised
-
Certification:
-
CE / ISO9001
-
Language:
-
Global Multi-language
-
Installation:
-
with video training step by step
-
Sofware:
-
with front alignment function
-
advantage:
-
no need 2nd recalirbrate for whole life
-
camera:
-
2pcs Industrial 5 mega pixel cameras
-
carema beam UP AND DOWN:
-
Through remote controller
-
software update:
-
freely whole life through online
Quick Details
-
Power:
-
0.5 KW
-
Power Supply:
-
110V/220V
-
Balancing Speed:
-
NONE
-
Max. Wheel Weight:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLE-AXE
-
Model Number:
-
3D-718S
-
Warranty:
-
12 Months
-
Product Name:
-
3d wheel aligner car lift hoist tire changer and wheel balancer combo
-
Color:
-
Customised
-
Certification:
-
CE / ISO9001
-
Language:
-
Global Multi-language
-
Installation:
-
with video training step by step
-
Sofware:
-
with front alignment function
-
advantage:
-
no need 2nd recalirbrate for whole life
-
camera:
-
2pcs Industrial 5 mega pixel cameras
-
carema beam UP AND DOWN:
-
Through remote controller
-
software update:
-
freely whole life through online

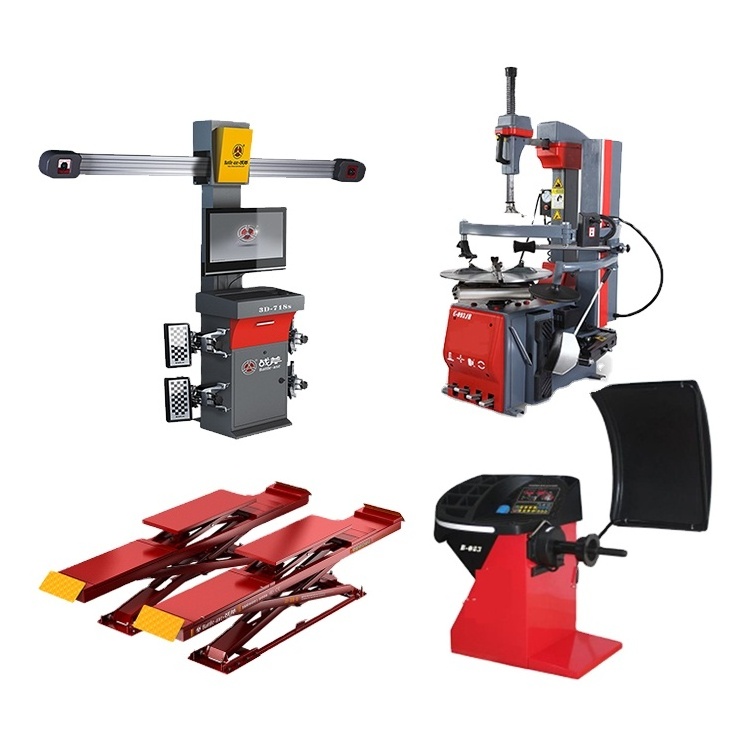

3d wheel aligner car lift hoist tire changer and
wheel balancer combo
Combo Order Models List Following:
Wheel Alignment Model: 3D-708X with 32 TV set and Parking Camera Function
+
Alignment Scissor lift Model:ZF-35-D which is 3500 lifting height and 4200mm length
+
Automatic Wheel Balancer machine Model:B-082
+
Tire changer Machine Model:092AH with helpful Arm
| Adjust camera beam up and down through remote controller, Camera beam Length:2782mm |
| Column lift height: 1450-2110 |
| 32''TV &19''LCD show Measuring data & Parking Turntable Function |
| with static measuring,Turn Wheels & Static Alignment measuring function |
| 2pcs 5 Mega pixel camera |
| One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc) |
| with Track width and Wheelbase measuring interface also |
| Calibration data Saved inside of Camera instead of Software |
| No need to Re-calibartion even Exchange Camera Inside Processor |
| With Parking Camera Function |
|
Parameters |
Precision |
Resolution |
Measure Range |
| SAI/KPI |
±3′ ( ±0.05º ) |
0.6′ ( 0.01º ) |
±20º |
| CASTOR |
±3′ ( ±0.05º ) |
0.6′ ( 0.01º ) |
±20º |
| CAMBER |
±2′ ( ±0.03º ) |
0.6′ ( 0.01º ) |
±10º |
| TOE |
±2′ ( ±0.03º ) |
0.6′ ( 0.01º ) |
±10º |
| THRUST ANGLE |
±2′ ( ±0.03º ) |
0.6′ ( 0.01º ) |
±10º |
| TRACK WIDTH |
±2mm |
0.1mm |
1200-2200mm |
| WHEELBASE |
±2mm |
0.1mm |
1600-4200mm |
| WHEEL OFFSET |
±2mm |
0.1mm |
±200mm |
| LATERAL DEVIATION |
±2mm |
0.1mm |
±200mm |
| CASTOR OFFSET |
±2mm |
0.1mm |
±200mm |
| RIM SIZE | 12''-24 | // | // |
Announcement : As long as totally alignment vehicle strictly according to manual’s steps And s uspension s ystem c ondition is good, then can get above precise data.
Beam Up and Down Controlled by Manually Remote Controller,Lift Height Between 1450-2110mm
Camera Features:Patended Real 5 Mega Pixel Industrial Camera 2pcs,Welcome Test
Machine's Features
Software Database Bank
Worried About Infringing on Software? Kindly check Battle-Axe Software Proprietary Intellectual Property Rights
Q:hello , Does Wheel alignment need to Recalibration after we got the machine?
- No, We already Calibration well and Test Real Vehicle in our factory, Just Install according to Video Instruction and Operate
Q:How much mints your Wheel Alignment need to Alignment one Vehicle?
- Well it is Deponds, if your people Familier With Our machine operate 45 seconds to get measuring data, adjustment not include
-it will be more fast,around 30 seconds Enough if you use "Front Alignment" or "Static Measuring"Function
Q:We Worried About Camera, Bad Experience with China some Brand, Very Headache on Camera Replacement and Recalibration
-We understand you Clearly, Well Battle-Axe Promised you 100% About our Camera Quality, No one customer complain the quality of Camera still now since we sell 2015 for 2nd 3D wheel alignment,
-In Case the camera not working well, no need Recalibration also
Q:We also Worried about the target, you know sometime, people will damage it like vehicle pressed it and break it ..then the machine must to stop and i have to wait for new target, how about Battle-Axe?
-Battle-Axe Target Plate Adopted Original ABS material from Korea,very durable even Vehicle pressed on it ,still can working ,you can visit the Video above
-In case one target plate real break ,can not working any more , ok, 2 target plate break, No problem, your machine still can creat profit for your workshop , we have "Front Alignment Function"
-We sent you one or two new target plate, you just replacement .. NO NEED recalibration again
Q:i am Dealer and i want the Software with Our Brand Inside
-We Supply Freely OEM Service for Software service for Dealer as long as your Quantity can reach 20 set/year
-you can request us delate/Add any function or feature you want,make your brand more famous locally
Packaging & Shiping
| Item | Package Size | N.G/W |
| camera beam | 3050x400x430MM-1pcs | 20/31.5kgs |
| cabinet | 900x600x1300mm-1pcs | 135/169.5kgs |
4S Dealership Workshop? Want Automatic Tracking Target Version?
Kindly Check 3D-ZD-8S and 3D-ZD-9S
-Warranty Period: within 12 months From Bill of loading date not including PC Unit including computer hard disk, LCD and Printer
-Computer, Printer and TV from China original, kindly check your local service center, or you can order our wheel aligner machine without computer,printer and LCD.. buy from local in order to get after service
-Computer Brand we used HP, Printer is Canon and TV Set from Haier (we will not give futher notify if we change brand)
-Easy spare parts like USB power line, insurance tube we will sent together with whole machine for future replacement, for other spare parts belongs to chargeble Range if replacement, Express cost beared by Buyer
-if the Parts can be Repair, we will not charge cost for Repair, but come and back Express cost on Buyer side
-Insurance will not covered with any Shipment Except for buyer Special Mentioned
-Generally Clear customs Documents we only supply Bill of loading, packing list and Commercial Invoice, if any special documents need like CO kindly Inform us in advance, otherwise we will not responsible for loose during clear customs
