Quick Details
-
Marketing Type:
-
New Product 2023
-
Model:
-
ZX-1625V
-
Working Area:
-
1600*2500mm
-
Cutting Thickness:
-
0-50mm, customization available for thicker material
-
Maxing Cutting Speed:
-
1200mm/s
-
Cutting Tolerance:
-
±0.1mm
-
Transmission Interface:
-
Ethernet
-
Fixed Mode:
-
Vacuum absorb
-
Supply Voltage:
-
AC 110V/220V/380V±10%, 50HZ/60HZ
-
Rated Power:
-
11KW
-
Safety Device:
-
Infrared sensor; sensitive response; safe and reliable
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZXT
-
Weight (KG):
-
1600
-
Marketing Type:
-
New Product 2023
-
Model:
-
ZX-1625V
-
Working Area:
-
1600*2500mm
-
Cutting Thickness:
-
0-50mm, customization available for thicker material
-
Maxing Cutting Speed:
-
1200mm/s
-
Cutting Tolerance:
-
±0.1mm
-
Transmission Interface:
-
Ethernet
-
Fixed Mode:
-
Vacuum absorb
-
Supply Voltage:
-
AC 110V/220V/380V±10%, 50HZ/60HZ
-
Rated Power:
-
11KW
-
Safety Device:
-
Infrared sensor; sensitive response; safe and reliable
Products Description

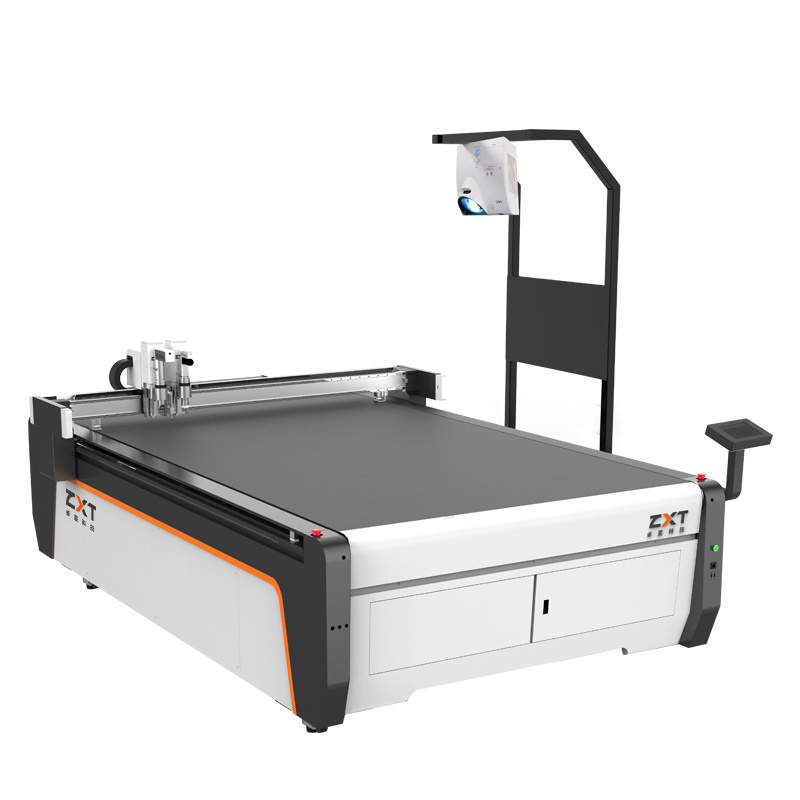

ZHUOXING CNC vibrating knife cutting machine mainly
for non-metal gasket materials automatic digital die-free cutting, materials include non-asbestos, asbestos, rubber, silicone, cork, felt, foam, etc.
The edge of finished workpiece is smooth and good consistency, effectively improves customized small amountorders' production efficiency, reduces the cost of dies, and helps customers to win more market share with high quality, short lead time and customization service while reducing costs and improving efficiency!
Product Parameters
|
Model
|
ZX-1113V
|
ZX-1616V
|
ZX-1625V
|
||
|
Working Area
|
1100*1300mm
|
1600*1600mm
|
1600*2500mm
|
||
|
Cutting Thickness
|
0.1mm-50mm
|
|
|
||
|
Cutting Tolerance
|
±0.1mm
|
|
|
||
|
Transmission Interface
|
Ethernet
|
|
|
||
|
Recommended Configuration
|
Cutting Tool(Oscillating knife, Pneumatic Knife), Projector.
|
|
|
||
|
Max. Cutting Speed
|
1200mm/s
|
|
|
||
|
Supported Format
|
DXF, PLT, and More
|
|
|
||
|
Fixed Mode
|
Vacuum Absorb
|
|
|
||
|
Function
|
Cutting, Showing, and Proofreading
|
|
|
||
Product Details
The head of a cutting knife
Increase tool head more simple, optional tool head: vibration knife, V slot cutting knife.pressure wheel, half knife, pneumatic knife, round knife, etc.
High precision aviation aluminum countertops
With the unique inner part of the wind structure, to ensure that each area of the platform suction even, more powerful suction.
Rack and pinion
The equipment adopts gear rack transmission, compared with belt transmission, large load-bearing capacity, high transmission accuracy, fast speed, long service life.
Bed structure
Reduce the use of small size square tube, the only domestic machine using 5mm thickness square tube, the whole welding process, imported milling machine processing, to ensure the guide rail surface and rack surface flatness, greatly enhance the stability of the fuselage.
Linear guide rail gears & racks
Large loading capacity, high transmission accuracy & high transmission speed.
Panasonic servo motor
Stable performance, high precision, low failure rate and good high speed performance.
Table Cloth
High-density felt provides excellent support for the material, ensures a tight fit with every positioning, and protects the plate during cutting.
Chain
Simple assembly,durability, long silent circular motion, fast movement and long service life.
