Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunnran
-
Dimension(L*W*H):
-
78300x1700x2450mm
-
Weight:
-
7300 KG
-
Applicable range::
-
Rectangular can
-
Output::
-
Max.35 CPM
-
Can size::
-
1-5L
-
Air pressure::
-
Not lower than 0.6Mpa
-
Connection height::
-
1000±10mm
Quick Details
-
Application:
-
Food, Chemical
-
Packaging Material:
-
Tinplate
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunnran
-
Dimension(L*W*H):
-
78300x1700x2450mm
-
Weight:
-
7300 KG
-
Applicable range::
-
Rectangular can
-
Output::
-
Max.35 CPM
-
Can size::
-
1-5L
-
Air pressure::
-
Not lower than 0.6Mpa
-
Connection height::
-
1000±10mm
Products Description

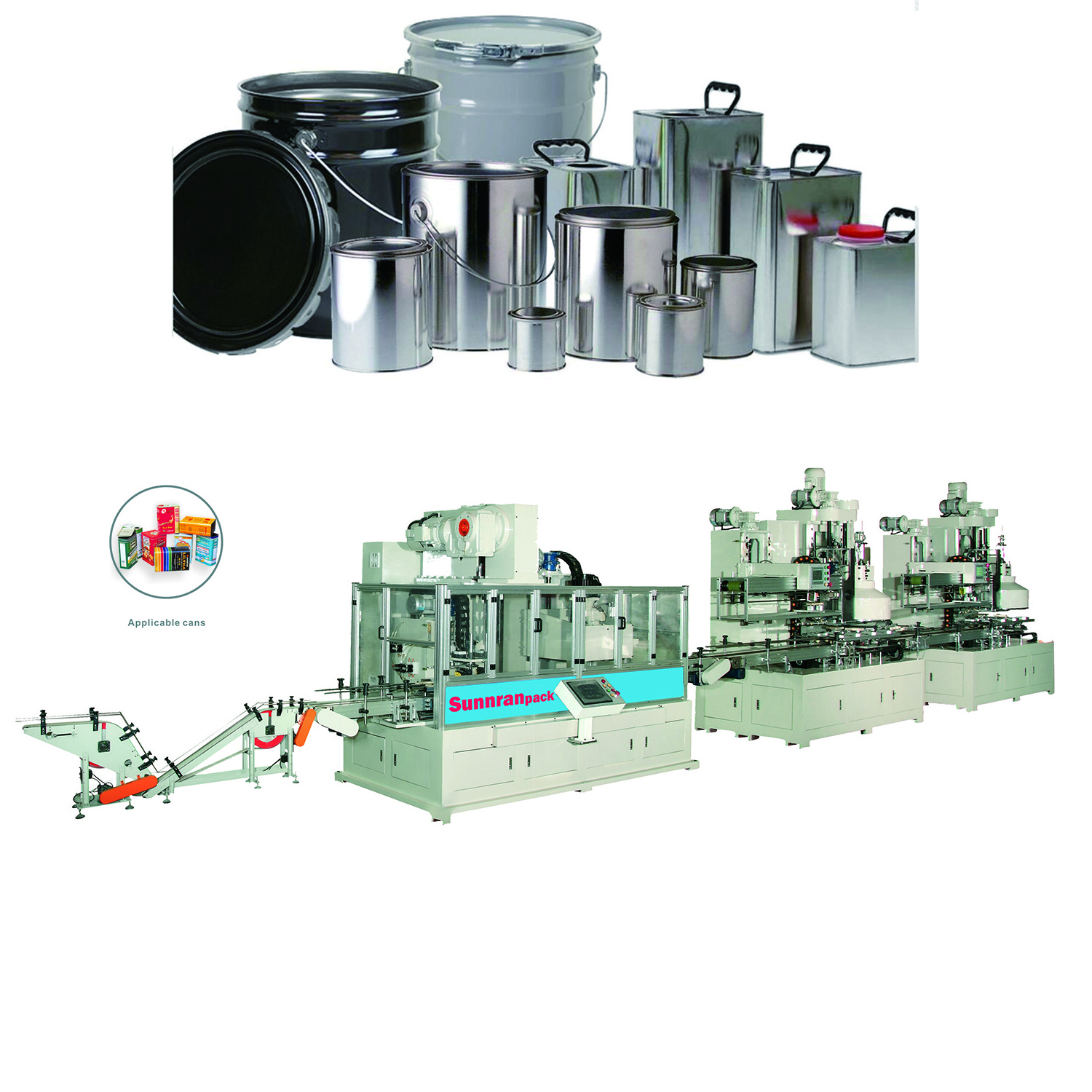

Can Production Line Rectangular Can making line Tin can making machine
The line above has speed 28-35CPM for making 1-6L rectangular can
Ultrasonic sensor equipped makes the can orientation more accurately.
The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively.
The successive rotary lid delivery structure can feed the lids stably & quickly.
|
Model
|
Can sizes
|
Max speed
|
Height range
|
Air pressure
|
Power
|
|
ZD-S.
|
1-5L
|
30-35CPM
|
100-350mm
|
≥0.6Mpa
|
APP.25Kw
|
Company introduction
JieGu, Kaixin and Sunnran company pool their resources and experience in a joint venture to supply our customers with the best possible turnkey project solution. JieGu and Kaixin Company was established in 2014 for producing lacquer coating systems, conveyors, can body forming machines, decorative can making machines and induction ovens. We supply individual machines as well as complete lines for 3-piece canmaking and end making.
Sunnran co. was established in 2019 and specifically concentrate on the market outside mainland China. We have experience in sourcing the best quality machines and do upgrades on request of the customer. Machines are build and interlocked according to the line synopsis agreed with the customer. Our self-produced machines are also selected by other famous can machinery and canmaking companies such as: Golden eagle, Longwen, Shantou light, New Dodo, COFCO and Sihai Co. We have experienced employees with some individuals having more than 20 years experience in canmaking as well as the design and production of canmaking machines like welders.
Sunnran co. was established in 2019 and specifically concentrate on the market outside mainland China. We have experience in sourcing the best quality machines and do upgrades on request of the customer. Machines are build and interlocked according to the line synopsis agreed with the customer. Our self-produced machines are also selected by other famous can machinery and canmaking companies such as: Golden eagle, Longwen, Shantou light, New Dodo, COFCO and Sihai Co. We have experienced employees with some individuals having more than 20 years experience in canmaking as well as the design and production of canmaking machines like welders.
Welding line
Adopts sheet upward feeding to avoid double sheet issue.
Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity .
With new innovated frequency inverter to make perfect welding seam.
Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation.
After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies.
Induction oven can be designed to linear or U-shape according to client’s workshop layout.
|
Automatic welder
|
|
|
|
|
||||
|
Wire speed
|
Can diameter
|
Can height
|
Can material
|
Power capacity
|
||||
|
6-24m/Min
|
99-180mm
|
70-330
|
Tinplate,Ni-plate,SS
|
26Kw
|
||||
|
Internal & external coating machine
|
|
|
|
|
||||
|
Coating speed
|
Can diameter
|
Coating width
|
Power Consumption
|
Power source
|
||||
|
10-35m/min
|
52-300
|
10-14
|
0.6Kwh
|
220V
|
||||
|
Induction oven
|
|
|
|
|
||||
|
Conveying speed
|
Heater Qty.
|
Power
|
Cooling water
|
Air source
|
||||
|
9-30m/min
|
3 x 2m/Heater
|
380V , 50Hz
|
>30L/min>400Kpa/cm2<20℃
|
|
||||
