Quick Details
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1000*550*1500mm(L*W*H)
-
Weight:
-
80 KG
-
Core Components:
-
Other
-
Function:
-
Filling liquid or paste
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
1800-6000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1000*550*1500mm(L*W*H)
-
Weight:
-
80 KG
-
Core Components:
-
Other
-
Function:
-
Filling liquid or paste
-
Marketing Type:
-
Ordinary Product
Product Description

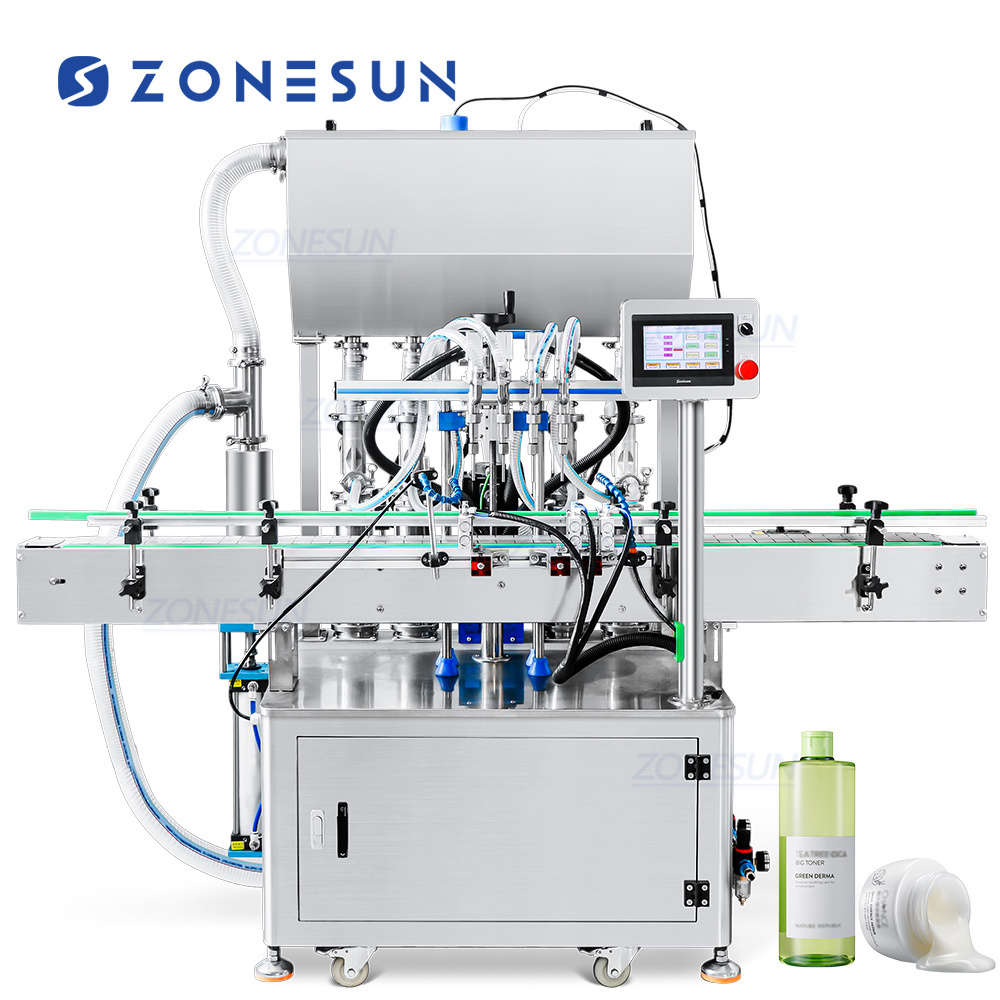

This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.
|
Machine model
|
ZS-YT4T-4PX
|
|
Voltage
|
110/220V 50-60HZ 1KW
|
|
Filling range
|
10-180ml/30-500ml/100-1000ml
|
|
Working speed
|
About 30-50bottles/min
|
|
Filling pump
|
Piston pump
|
|
Air pressure
|
0.6-0.8MPa
|
|
Filling accuracy
|
±1%
|
|
Filling Nozzle
|
4(can be customized)
|
|
Machine size
|
About 2000*800*1800mm
|
|
Machine weight
|
About 200kg
|
|
Packaging size
|
About 2070*960*2010mm(100-1000ml)
|
|
Packaging weight
|
About 392kg(100-1000ml)
|
Made of high quality conveyor belt,the chain conveyor has larger weight capacity, it can transport bottles faster and smoothly,the width and length can be customized as operation need.
Equipped with high quality electric eye,it can detect passing by bottles and control the machine to start work.This can prevent from missing bottles and ensure the automated production can be processed smoothly.
The feeding pump can supply filling material in time through the liquid level sensing device, this can saves working labor and improves working efficiency.
Please send us your request, we can help you customize a suitable machine!
We have other machine, if you want to know,please send us your request, we can help you customize a suitable machine !
