Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO
-
Voltage:
-
380V/220V
-
Weight:
-
3500 KG, 5000KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
30KW
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Marketing Type:
-
New Product 2024
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO
-
Voltage:
-
380V/220V
-
Weight:
-
3500 KG, 5000KGS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power(W):
-
30KW
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Marketing Type:
-
New Product 2024

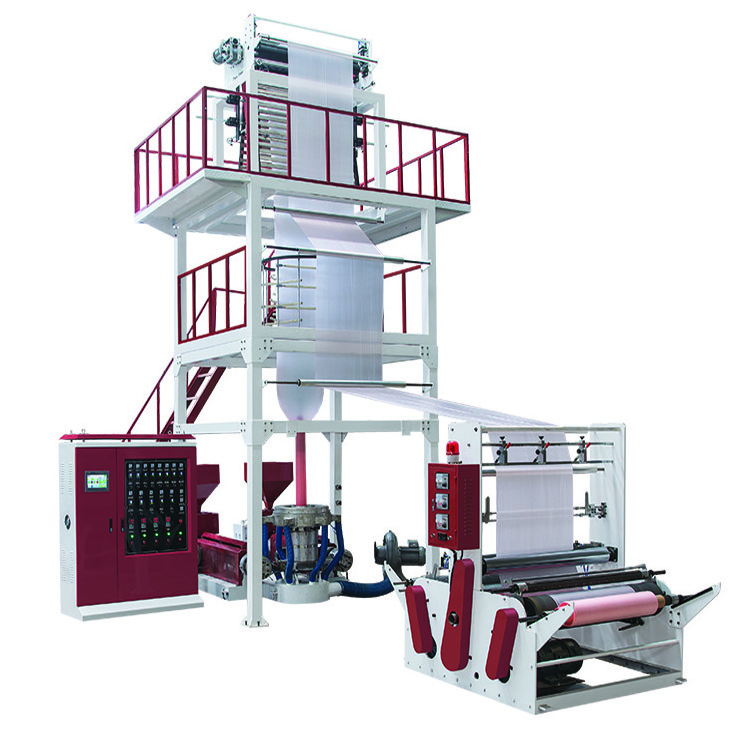

Film blowing Machine:
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
If any items you are interested,Warmly welcome you feel free to contact us.
|
Model |
SJ-C75 | SJ-C90 | SJ-C105 | SJ-C120 |
| Screw Diameter | 75mm | 90mm | 105mm | 120mm |
|
Screw Ratio(L/D) |
28:1 | 28:1 | 28:1 | 28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 30-37Kw | 37—45Kw | 54—70Kw | 70—90Kw |
| Max Output | 120kg/h | 160kg/h | 190kg/h | 220kg/h |
| Max.Folding Width of Film | 1500mm | 2000mm | 2500mm | 3000mm |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 46Kw | 60Kw | 78Kw | 95Kw |
| Weight of Machine | 4T | 8T | 10T | 12T |
|
Overall Dimensions |
5200×2800×6000 | 6200×3400×8000 | 6200×4000×9000 | 6800×4500×10000 |
|
