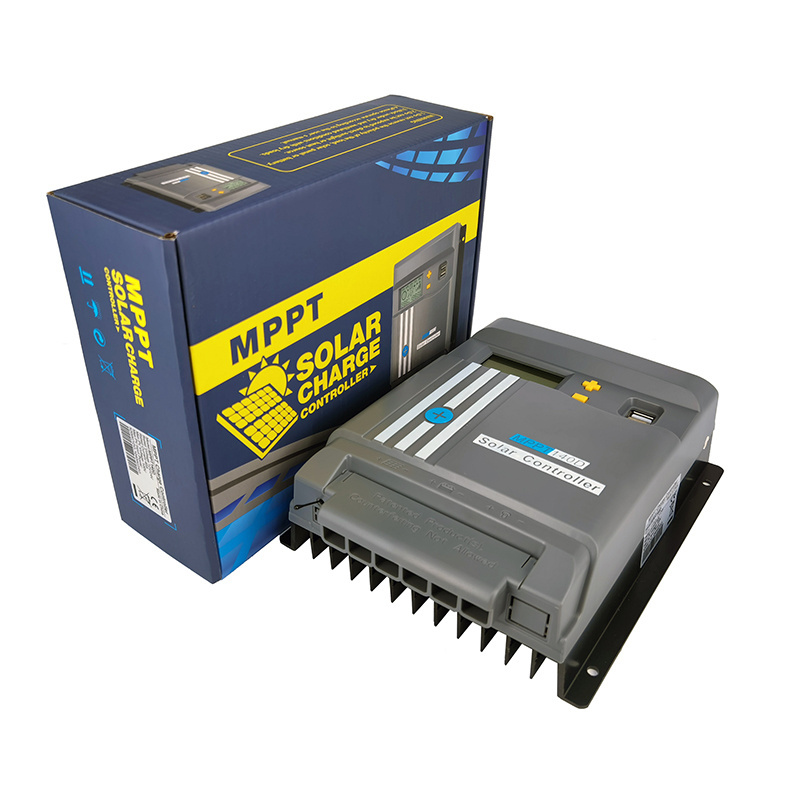

MODEL:MPPT110D
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
hanfsolar
-
Model Number:
-
MPPT140D
-
Work Time (h):
-
12 Hours
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE-ROHS
-
Warranty:
-
1 Year
-
Maximum PV voltage:
-
100V
-
System related voltage:
-
12V /24V
-
Maximum battery voltage:
-
8~32V
-
Charging control mode:
-
4-stage (MPPT, Absorption, Equalization, Float)
-
Temperature compensation:
-
-4mV/ cell/ °C
-
Maximum charging current:
-
40A
-
Battery type:
-
Lead acid (Gel, Sealed, Flooded)
-
Product name:
-
MPPT solar charge controller
-
Cooling style:
-
Sealed Lead Acid
-
Control Mode:
-
MPPT Charge
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
hanfsolar
-
Model Number:
-
MPPT140D
-
Work Time (h):
-
12 Hours
-
Max PV Power:
-
480W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE-ROHS
-
Warranty:
-
1 Year
-
Maximum PV voltage:
-
100V
-
System related voltage:
-
12V /24V
-
Maximum battery voltage:
-
8~32V
-
Charging control mode:
-
4-stage (MPPT, Absorption, Equalization, Float)
-
Temperature compensation:
-
-4mV/ cell/ °C
-
Maximum charging current:
-
40A
-
Battery type:
-
Lead acid (Gel, Sealed, Flooded)
-
Product name:
-
MPPT solar charge controller
-
Cooling style:
-
Sealed Lead Acid
-
Control Mode:
-
MPPT Charge
Related products
Products Description
MPPT 12/24V Automaticaly inspection 10A/20A/30A/40A
1
)self-made algorithm, fast and accurate lock MPPT point, within 10 seconds, accuracy is greater than 99%, MPPT peak conversion efficiency 98%,
2)
four-stage charging : high current charging at MPPT point, float charging, absorption charging, equalized charging,
3)
Can be used for lithium batterylifepo4 battery, ternary lithium battery),when the lithium battery is low voltage protected, the battery can be activated,
4)
external temperature sensor, accurate temperature compersation,
5)
PV input maximum voltage: 100V,
6)
The system voltage is 12/24V actomativally identification,
7)
Communication function(with built-in or external
wifi, bluetooth, GPRS module)
, providing standard MODBUS communication protocol
Details Images
MODEL:MPPT120D
Rated Voltage: 12/24V Auto
Rated Charge Current:20A
Rated Discharge Current:20A
USB port:2A/5V*1
Carton size:395*295*310mm
Product Weight:0.62kg
MODEL:MPPT130D
MODEL: MPPT140D
Product Paramenters
|
Model
|
MPPT110D
|
MPPT120D
|
MPPT130D
|
MPPT140D
|
|||
|
Battery voltage
|
12/24V Auto
|
|
|
|
|||
|
Battery voltage range
|
9-32V
|
|
|
|
|||
|
Max charging current
|
10A
|
20A
|
30A
|
40A
|
|||
|
Max PV voltage
|
100V
|
|
|
|
|||
|
Battery type
|
User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
|
|
|
|
|||
|
Equalized charging
|
Maintenance-free lead-acid battery:14.6V,GEL:No;Lead-acid Flooded battery: 14.8V
|
|
|
|
|||
|
Absorption
|
Maintenance-free lead-acid battery :14.4V,GEL:14.2V ;Lead-acid Flooded battery: 14.6V
|
|
|
|
|||
|
Float charging
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V
|
|
|
|
|||
|
Low voltage disconnection
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V
|
|
|
|
|||
|
Low voltage reconnection
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V
|
|
|
|
|||
|
Static loss
|
≤45mA/12V, ≤37mA/24V
|
|
|
|
|||
|
High voltage disconnection
|
16V
|
|
|
|
|||
|
Equalize charging time
|
2 hours
|
|
|
|
|||
|
Absorption charging time
|
2 hours
|
|
|
|
|||
|
Light control voltage
|
5V
|
|
|
|
|||
|
Temperature compensation
|
-4mV/°C/2V(25°C)
|
|
|
|
|||
|
Charge loop voltage drop
|
≤0.2V
|
|
|
|
|||
|
Discharge loop voltage drop
|
|
|
|
|
|||
|
LCD screen temperature range
|
-20°C ~ +70 °C
|
|
|
|
|||
|
Working temperature
|
-20°C ~ +55 °C
|
|
|
|
|||
|
Humidity
|
-30 ~ +80 °C
|
|
|
|
|||
|
Grounding
|
Positive grounding
|
|
|
|
|||
|
Communication mode
|
WIFI, Bluetooth, RS485
|
|
|
|
|||
