Quick Details
-
Model Number:
-
CN101A
-
Max. Current:
-
16A
-
Product name:
-
Weekly Digital Programmable Time Switch
-
Type:
-
Digital Time Switch
-
Coil Voltage:
-
12V,24V,110V,220V
-
Display:
-
LCD
-
Operate Temperature:
-
-10 to +40℃
-
Power consumption:
-
no more than 2W
-
Contact Capacity:
-
AC250VA 16A
-
On/Off Operation:
-
16 on &16 off
-
Full Time Range:
-
1Min-168Hours
-
Dimensions:
-
62x62x32.5mm
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
CN101A
-
Max. Current:
-
16A
-
Product name:
-
Weekly Digital Programmable Time Switch
-
Type:
-
Digital Time Switch
-
Coil Voltage:
-
12V,24V,110V,220V
-
Display:
-
LCD
-
Operate Temperature:
-
-10 to +40℃
-
Power consumption:
-
no more than 2W
-
Contact Capacity:
-
AC250VA 16A
-
On/Off Operation:
-
16 on &16 off
-
Full Time Range:
-
1Min-168Hours
-
Dimensions:
-
62x62x32.5mm

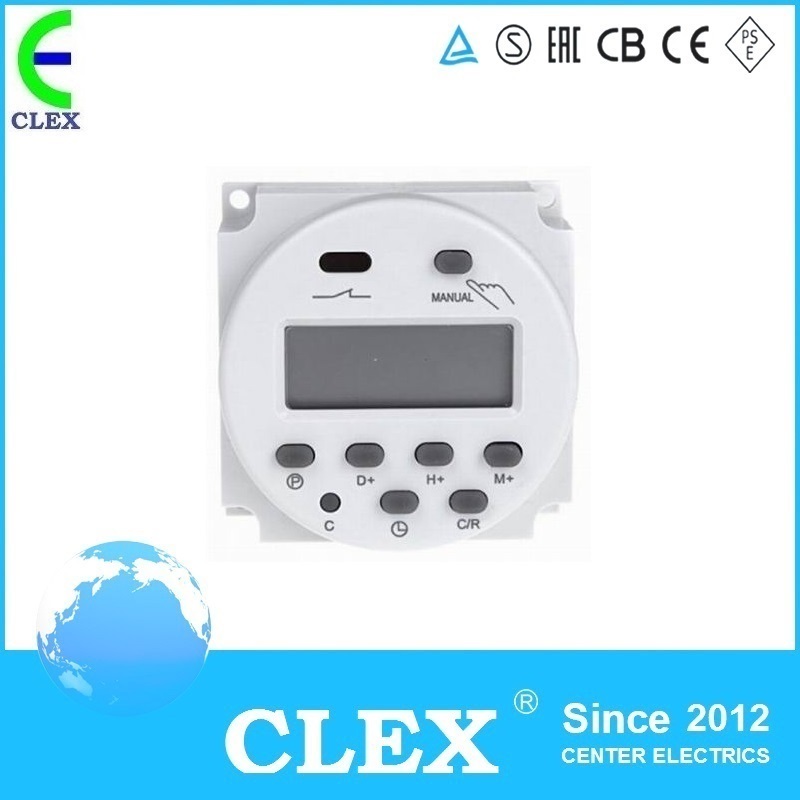

CN101A Digital LCD Power weekly Programmable with protective cover
Features:
100% Brand New and High Quality
The panel-mount digital timer series can be operated in 4 separate power supplies, ranges from 240V AC to 12V DC,
output format can be produced to be volt-free or voltaic-output
The digital timer is accurate to the minute, hour, days, designed with either 17 ON/OFF (event) per day
Provide 15 combination of daily programs which can lead great convenience
to user upon choosing the required days in a week for operation the time
Advanced pre-setting one week before, digital electronic timer switch with daily and weekly programs
Repeat programs with 17 on/off setting and manual override lithium battery power reserve when electric supply cut off
Specification:
Full Time Range: 1Min-168Hours
Rated Voltage: 12V DC
Contact Capacity: 16A
Power consumption: no more than 2w
Internal battery: 1.2V/40mA (rechargeable batteries)
Dimensions: 62x62x32.5mm
Power failure memory: 180days
Operate Temperature: -10 to +40 C
Programmable: 17times/week or day
Minimum interval: 1 minute
Key Button: Clock, timer, day, h+(setting the hours), m+(setting the minutes), manual override, reset
Product Showing
Product Certificates
Payment Terms
1. Samples: 100% TT payment in advance;
2.Trial order: 30% TT payment in advance and 70% balance before goods delivery.
3.Bulk order: 30% TT payment in advance and 70% balance against copy of B/L.
Delivery time
1. Samples: 5-7 working days;
2. Bulk order: 10-25 working days.
Warranty
3 years warranty:we will replace the broken ones with new ones free of charge in 3 years.
Shipping Method
1. By Express: DHL, UPS, Fedex, normally 4-5 working days for delivery, (suitable for samples)
2. By Air: if package gross weight is over 45KGS, 5-7 days for delivery, (suitable for trial order)
3. By Sea: the most economic shipping method for bulk order, (suitable for bulk order)
4. We can arrange all shipment matters or you arrange your shipping agent or forwarder
After-sale Service
1. Quick reply on customers' questions;
2. If anything goes wrong with the products'quality, we will replace for you free
Quality Control
1,All products have been tested and lighting for 24 hours to test quality reliability and other parameters.
2,Each lamp must pass all the QC procedures before goods delivery from factory.
Our Services
1. For all your inquires about us or our products, we will reply you in 24 hours;
2.Our well-trained and professional sales are online with Alibaba trademanager and Skype.
3. OEM is available, our factory can customized your products and your LOGO printed package
