Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETTERSCREW
-
Model Number:
-
3ft/5ft extension length
-
Diameter:
-
2.875OD/3.0OD/3.5OD etc.
-
Product name:
-
round shaft helical piles
-
Shaft material:
-
Seamless high tensile pipe
-
Shaft standard:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Surface treatment:
-
Hot-dipped galvanized, plain, painted
-
Helices Leading edge:
-
beveled 45 degrees
-
OEM service:
-
Available
-
Application:
-
Building Construction
-
Sample:
-
Avaliable
-
Advantage:
-
High-quality Products
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
Strong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETTERSCREW
-
Model Number:
-
3ft/5ft extension length
-
Diameter:
-
2.875OD/3.0OD/3.5OD etc.
-
Product name:
-
round shaft helical piles
-
Shaft material:
-
Seamless high tensile pipe
-
Shaft standard:
-
conforms to ASTM A500 GRADE B
-
Helices material:
-
ASTM A36 Hot rolled plate
-
Surface treatment:
-
Hot-dipped galvanized, plain, painted
-
Helices Leading edge:
-
beveled 45 degrees
-
OEM service:
-
Available
-
Application:
-
Building Construction
-
Sample:
-
Avaliable
-
Advantage:
-
High-quality Products
Helical screw pile producer supply OEM
-
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
-
Helices material: ASTM A36 Hot rolled plate
-
Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
-
Leading edge of Helices beveled 45 degrees
-
Greater Section Modulus Strength to resist Twisting and Deflection
-
Greater Load Capacities
Specifications |
|||||
---|---|---|---|---|---|
Shaft Size (inch) |
Wall Thick(inch) |
Helix Thick (inch) |
Lead Length (ft) |
Helix Size (inch) |
Extension Length (ft) |
2.875 OD. |
0.262 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.00 OD. |
0.238 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
3.50 OD. |
0.254/0.300 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
4.50 OD. |
0.290/0.337 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
5.50 OD. |
0.362 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
6.625 OD. |
0.562 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
Product show

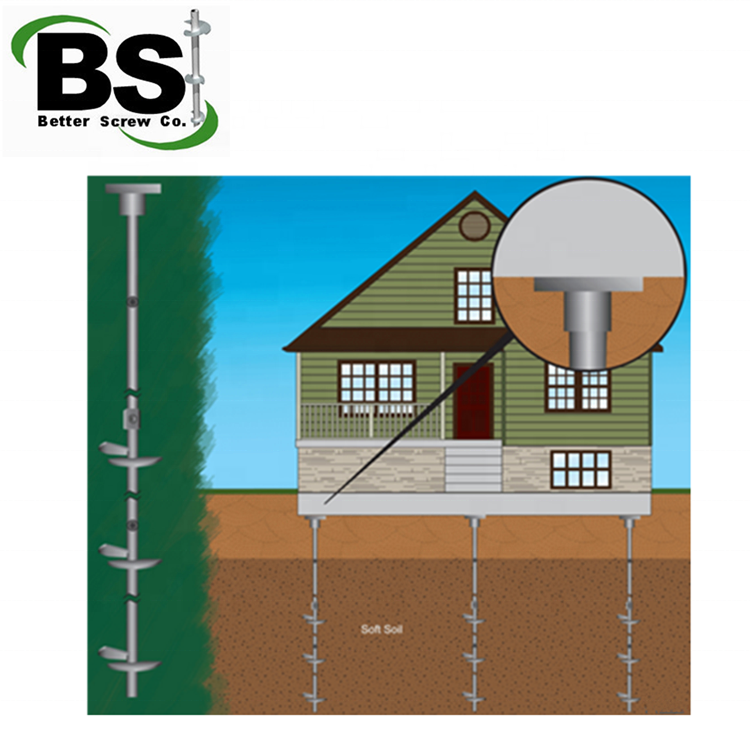

galvanized round helical drilled piles
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Good quality, competitive pricing and timely service.
4. OEM and ODM service are available here.
5. Sample: Available.
galvanized round helical drilled piles
1. Are your products the same with the ones in our local market?
Yes, our welding performed to America Standard AWS D1.1&EURO Standard EB287 and
we manufactured millions of helical piers and a series of accessories for North American/Europen/Australian etc market during the past 10 years and very familiar with every detail of these products. We believe that there is no company in China is more professional than us on this product
.
2. What is the minimum order quantity?
The MOQ for helical piers is 10 tons for per specification. You can mix different sizes of posts to make up a full container. If you want to know the MOQ for other products, please feel free to contact us.
3. How long is your lead time?
Usually our production time for one container goods is about 30-40 days, and the shipping time
depends on your place of delivery .
4. What is your payment term?
Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.
5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing inChina and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your office to check our products.
galvanized round helical drilled piles
If you want to know more about the products you want, please get in touch with us.
