Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine
Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine

Kingjet Printer Baner Motorcycle Decal Tarpaulin Printing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $8300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Print Dimension:
3200mm
Place of Origin:
China
Brand Name:
Kingjet
Dimensions(L*W*H):
L4,601 x W884 x H1,303 mm
Weight:
540Kgs
Ink Type:
solvent ink
Product name:
Kingjet Baner Motorcycle Decal Printing Machine for Tarpaulin
Print head:
Konica 512/512i head
Ink type:
K42 Solvent Ink
Color:
4 Colors( C , M , Y , K )
Media Type:
Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Print Interface:
USB2.0
RIP Software:
Photoprint 10.5 or Maintop V5.30
Operation:
Temperature: 20~28℃ Humidity: 40%~60%
Type:
Digital Printer
Certification:
CE Certification

Quick Details

Plate Type:
roll to roll
Color & Page:
Multicolor
Voltage:
220V
Print Dimension:
3200mm
Place of Origin:
China
Brand Name:
Kingjet
Dimensions(L*W*H):
L4,601 x W884 x H1,303 mm
Weight:
540Kgs
Ink Type:
solvent ink
Product name:
Kingjet Baner Motorcycle Decal Printing Machine for Tarpaulin
Print head:
Konica 512/512i head
Ink type:
K42 Solvent Ink
Color:
4 Colors( C , M , Y , K )
Media Type:
Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Print Interface:
USB2.0
RIP Software:
Photoprint 10.5 or Maintop V5.30
Operation:
Temperature: 20~28℃ Humidity: 40%~60%
Type:
Digital Printer
Certification:
CE Certification
Product Description

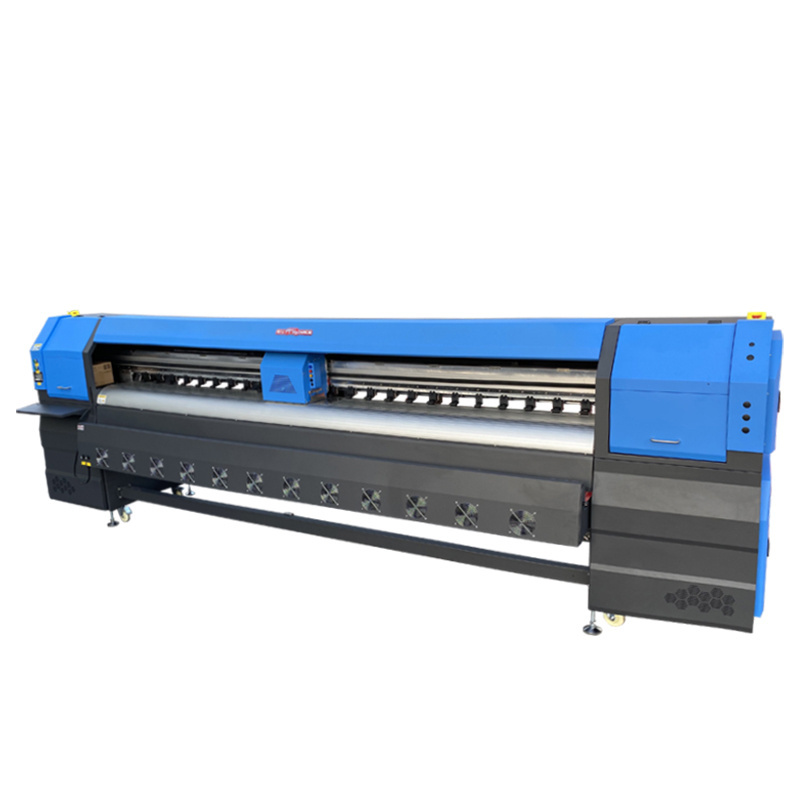

KingJet KJ-3208E Solvent Printer

the economical choice for NEW business

KJ-3208E series printer equipped with Konica 512 14pl/42pl and Konica 512i 30pl head, the fastest printing speed is up to 120sqm/h (2pass) .

Konica 512 head has Double row of ink tube, it's flow pressure is evenly uniform. Guaranteed print quality

Especially to deserve to be mentioned that KJ-3208E is at a really competitive price among other brands of solvent printers. It means that KJ-3208E is a high cost-efficient outdoor printer for advertising printing, such as flex banner, vinyl, car sticker, Mesh etc.

KINGJET KJ-3208E SOLVENT PRINTER
Maximum Print Width
3200mm (10.5ft)
Printing Resolution
360DPI
720DPI
480DPI
Printhead
KM512/42PL
KM512/14PL
KM512I/30PL
Output Speed (sqm/h)
Printhead Number
4H
8H
4H
8H
4H
High Speed Mode
42
83
28
56
120
Production Mode
33
66
21
42
90
High Quality Mode
21
42
11
22
60
Ink Type
K42 Solvent Ink
K14 Solvent Ink
KJ Solvent Ink
Color
4 Colors( C , M , Y , K )
Capacity
5L Per Main Tank of Each Color
Ink Supply System
Low Ink Detector, Auto or Manual Ink Supply System
Media Width
3300mm (10.8ft)
Media Type
Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Cleaning System
Auto Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Equipped
Auto Media Feeding System (Max. Media Weight 120kg )
Pre-heating & Drying System (Drying System Optional)
Clamp
Equipped
Print Interface
USB2.0
Printhead Height
2 to 4 mm Above Media Adjustable
RIP Software
Photoprint 10.5 or Maintop V5.30
Input Power
AC 220V ,50Hz
Operation Environment
Temperature: 20~28℃ Humidity: 40%~60%
Machine Dimension
L4,601 x W884 x H1,303 mm; Net Weight: 540Kgs (1,190lbs)
Package Dimension
L4,810 x W1010 x H1550mm; Gross Weight: 680Kgs (1,499lbs);
Two units in one 20 feet container

Main Features

1) Excellent mechanical T shape frame structure, main bottom frame was wholly milled by German imported 6 meter planer type milling machine, which error is only less than 0.05mm.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Printhead

Name: Konica 512 head/ Konica 512i head

Original: Japan

T5 equipped with Konica 512 head, which is high resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl respectively.


KJ-3208E printer machine body

KingJet advanced innovation, R&D, excellent mechanical and electrical Control system.

Specially designed left and right steel side boards for KJ-3208E , thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight


Suction fan layer angle more large, can turn angle according to the materia's angle, can put a large additional area of material under heating up and drying.

In order to improve the anti-interference ability of machine, we upgrade to match it with anti-interference circular in 4 different place.

Rail

Adopt the TAIWAN HIWIN rail; make sure the long use in printing and head carrier moves steadily and quietly. The German IGUS chain has been certified with its quality.

Main Board

Powerful components, always ensure stable and efficient machine printout

Konica Minolta certified and strongly recommended control system, developed printhead's best core performance while the boards are rarely fault.


In order to improve the anti-interference ability of machine, we upgrade to match it with anti-interference circular in 4 different place.

Constant heating on printhead plate, sub-ink tank and ink tube shall make sure machine still prints brilliantly even under cold environment.

Heating System

Teflon front ,middle, rear ,three sides of advanced surface treatment, high temperature resistance, Corrosion resistance.Multiple 3 phases constant heating system promotes ink absorption of material, which makes printing clearer, dry faster and image stay for longer.

Media Feeding System

Media feeding system of KINGJET KJ Series machines is able to fulfill different demand of different material for customers.

Packing & Delivery

Pack in strong wooden box
Dimension: L4,810 x W1010 x H1550mm 680Kgs

Our Service

Our Market Among Many Countries & Areas, we know the exact information of market in your place, will provide the best advice.

Pre-Sales Service

* 7 days 24 hours online inquiry and consulting support.

*Professional purchase guidance according to your local market.

* Sample testing support.

* View our Factory.

* Send Inquiry Now>>>

After-Sales Service

* Training how to instal the machine, training how to use the machine.

*English-Communicating Professional Techanican.

* Engineers availa to service machiner overseas.

* One year warranty
