3D Mini 4 Axis Router Carpentry Cnc Kit Wood Carving Wood Working Machine

3D Mini 4 Axis Router Carpentry Cnc Kit Wood Carving Wood Working Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1025

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.02 mm

Travel (X Axis)(mm):: 300 mm

Travel (Y Axis)(mm):: 400 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Place of Origin:: Guangdong, China

Brand Name:: JFT

Voltage:: AC220V/AC110V

Dimension(L*W*H):: 660*540*460mm(L*W*H)

Weight (KG):: 62

Machine name:: Wood carving machine

Machine model:: CNC3040

Working Area:: 300*400*90mm

Spindle motor:: 300/600W/800W/1500W

Stepper motor:: 57Type 4A

Application:: Acrylic, wood, EVA, PVC, color plates,metal, jade, etc

Motor:: Stepper Motor

Max. Working Speed:: 4000mm/min

Transmission:: Taiwan TBI Ball Screw

Carving accuracy:: 0.03mm

Quick Details

Working Table Size(mm):: 360*560mm

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 50 - 24000 rpm

Positioning Accuracy (mm):: 0.02 mm

Travel (X Axis)(mm):: 300 mm

Travel (Y Axis)(mm):: 400 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Place of Origin:: Guangdong, China

Brand Name:: JFT

Voltage:: AC220V/AC110V

Dimension(L*W*H):: 660*540*460mm(L*W*H)

Weight (KG):: 62

Machine name:: Wood carving machine

Machine model:: CNC3040

Working Area:: 300*400*90mm

Spindle motor:: 300/600W/800W/1500W

Stepper motor:: 57Type 4A

Application:: Acrylic, wood, EVA, PVC, color plates,metal, jade, etc

Motor:: Stepper Motor

Max. Working Speed:: 4000mm/min

Transmission:: Taiwan TBI Ball Screw

Carving accuracy:: 0.03mm

Product Description

3D Mini 4 Axis Router Carpentry Cnc Kit Wood Carving Wood Working Machine

CNC3040 3 Axis

CNC3040 3 Axis with water sink

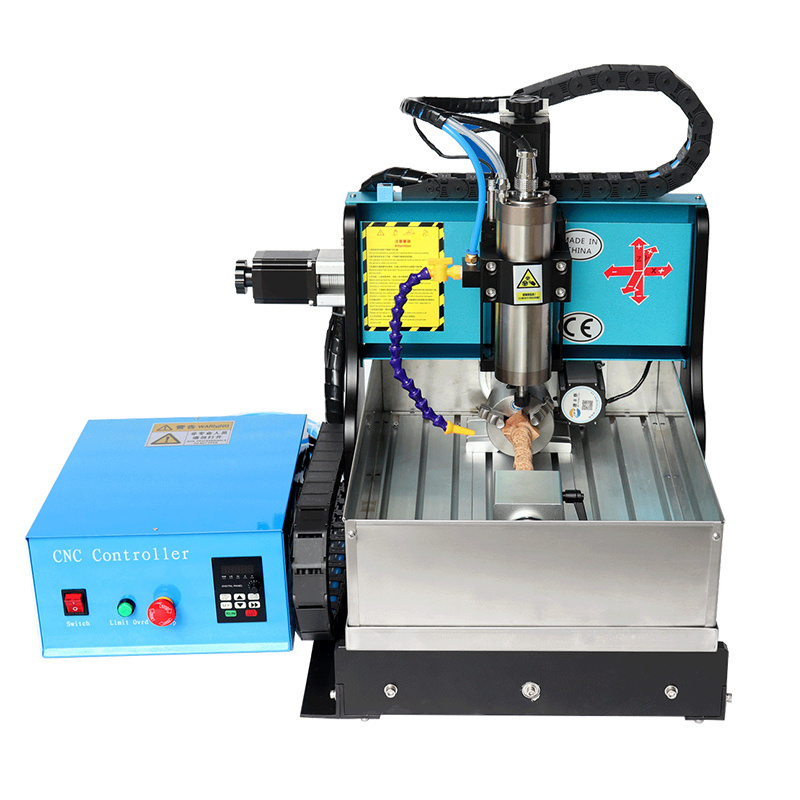

CNC3040 4 Axis with water sink

Main Features--multifunction cnc router

♠ Brand water cooled spindle, suitable to process metal materials and non-metal materials

♠ 57 type high current motor, high torque; with independent motor base, the operation is more stable ♠ Independent drives ♠ Imported TBI 1605 ball screw ♠ Double stainless steel polished rod

♠ Mach3 usb control system, can be controlled by desktop computer, laptop; or dsp control system, offline version, no computer for controlling

♠ Machine frames are 6061 aluminum alloy, precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized

Parameters
Machine name	Wood carving machine	Model	CNC3040
Working area	30040090mm	Feed height	≤130mm
Workbench size	36056020mm	Dimensions	670550570mm
Spindle power	300/600/800/1500W	Drive	Independent drives
Rotate speed	24000rpm/min	Ball screw	TBI SFU 1605 ball screw
Cooling type	Water cooling	Guide rail	optical axis+support round rail
Collet type	ER11	Frame materials	6061-T6 aluminum and 6063 aluminum
Max working speed	4000mm/min	Motor	Stepper motors
Working accuracy	±0.025mm	Voltage	110V/220V
Repeating precision	±0.01mm	Control system	Mach3 usb/DSP
Packing size	670540410mm	Packing weight	62kgs

Rotary axis parameters
Rotation Axis A Axis	Reduction ratio	6:1
Rotation Axis A Axis		Center height	65mm
Tail-stock	Center height	65mm
Tail-stock		Scalable amount	50mm

Samples Show

Detailed Images

High quality machine body

The machine body is 6061 aluminum alloy， precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized. Ordinary aluminum sheets or aluminum profiles and castings are not comparable.

Independent drives

Equipped with independent drive to ensure the high stability and fast working speed of the machine and effectively improve the accuracy

Stepper motor

Each axis motor uses the brand 57 type high current motor, high torque; with independent motor base, the operation is more stable

Strengthen guide rail

XYZ axis adopt round guide rail, formed by double stainless steel polished rod + ball screw, which effectively improving precision and stability, and is not deformed for a long time

Imported ball screw

All three axes are imported original TBI SFU 1605 genuine ball screw, high quality imported nuts with metal inverter; high efficiency, low frictional resistance

Mini control box

Exquisite and small control box , e asy to carry, Mach3(usb port) control system, DSP control system is optional

Brand water cooling spindle

Changsheng brand spindle motor, full power, low noise, high precision, long-term use does not affect performance

Limit switch

The three-axis direction is respectively equipped with a limit switch to avoid over-travel in the machine running, and has the function of returning the bed point of the machine in one-button manner, effectively protecting the machine

Brand frequency converter

Brand frequency converter, frequency control, more stable performance

Brand power supply

The power supply in control box is the designated power supplier for the Olympic Games. It has stable operation, long service life, built-in EMI filter, and strong anti-interference

Support base

Equipped with double bearings and bearing seat, which is precisely fitted to ensure the engraving precision. The Y-axis adopts the supporting base to effectively prevent the deformation of the guide rail

High flexibility cables

All cables are made of high-flex cables,with high-quality insulation and smooth Teflon wrapped shield. Anti-oxidation makes the cable prolonged in the presence of both torsional and bending stresses

Optional parts

Stainless water sink

For processing metal, high hardness materials,need to be equipped with water sink circulating water to cool the work piece and tool. One set of water tank include t able bottom tray, surrounding baffle, nozzle, blue water pipe, water pump

Rotary axis

When engraving cylindric materials, rotary axis is required, 360° rotary engraving. The A-axis motor is extended 57 type, the max rotation diameter is 130mm, and the deceleration is 1:6. There is adjustable wrench on the side of the tail stock for extra strength, tightening and durability

Our Service

Pre-sale service

1. 24 hours online inquiry and consulting supporting. 2. Providing the most professional advice for choosing the most suitable and economic machines

3. Free proofing

After-sales service

1. Providing instructional videos and English user manual for guiding to install and operate the machines 2. Engineers guide to operate the mahcines by remote service 3. 1 years free warranty for machine quality and technical service

FAQ

1. I nstructions for choosing suitable specification cnc machine

Applicable materials:

300W can process PVC, acrylic, plastic, Chemical Wood, ordinary wood and other soft materials etc; Air-cooled models

600W can process PVC, acrylic, plastic, PCB circuit board, IC grinding, double color board, Chemical wood, solid wood, hardwood etc; Air-cooled models

800W can process PVC, acrylic, plastic, PCB circuit board, IC polishing, double color board, EVA foam, carbon fiber, glass fiber board, graphite, bakelite, chemical Wood, solid wood, hardwood and soft metal etc; Variable frequency,water-cooled machine, suitable for long time processing

1500W can process PVC, acrylic, plastic, PCB circuit board, IC grinding, double color board, EVA foam, carbon fiber, glass fiber board, graphite,bakelite, chemical Wood, solid wood, hardwood and silver, gold, copper, steel,iron, aluminum alloy, jade and jade agate etc; Variable frequency water-cooled machine, suitable for long time processing

Water sink:

When engraving hard materials, like metal, gold, silver, aluminum, Jade, stone and so on, need add a water sink on the machine, the water sink can help to protect the cutting bits, also help to smooth and cool the material surface. One set of water sink includes table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump

2. What if you don't know how to use the machine?

We have a whole set of teaching videos, start with a zero basis, also can provide training
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

3. How about the warranty?

The machine is directly produced from our factory, you can enjoy the quality of the original

factory, and lifelong maintenance, free warranty is 1 year (except consumables, such as
knives, chuck, nuts and so on ), each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

4. How to repair?

Please contact the salesman or after-sales engineer first if there is any problem when using

the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
