Quick Details
-
Place of Origin:
-
Shandong,China
-
Machine Weight:
-
1315 kg
-
Product name:
-

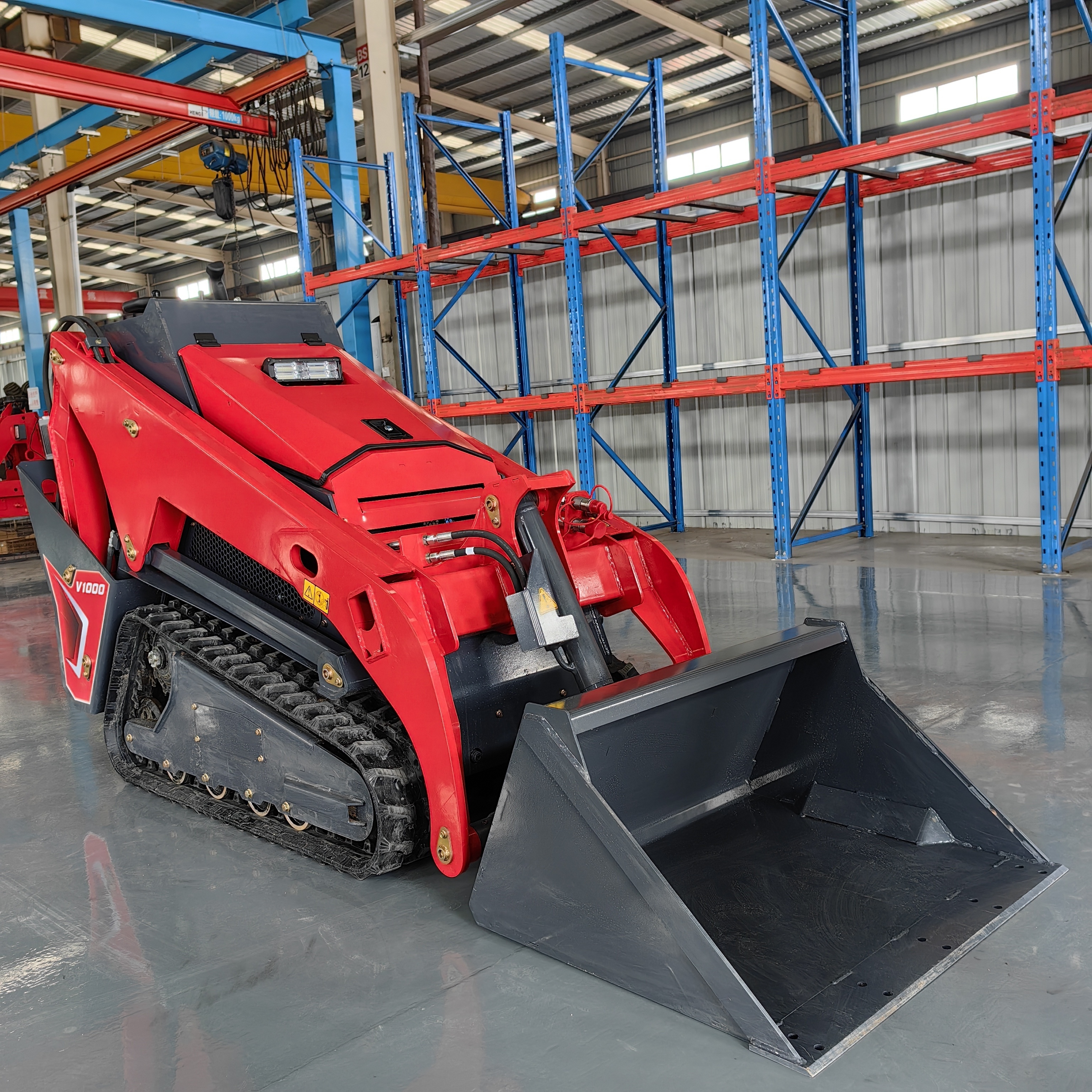

Mini Skid Steer Loader
-
Keyword:
-
Skid Steer Mini
-
Name:
-
Mini Tracked Loader
-
Drive type:
-
Crawler Drive
-
Key words:
-
Small Mini Loader
-
Application:
-
Building
-
Model:
-
HT-V1000
-
Color:
-
Customer's Requiement
-
Engine:
-
Kubota
-
Load capacity:
-
454KG
Quick Details
-
Engine Brand:
-
Kubota
-
Power:
-
18.4kw
-
Brand Name:
-
Hightop
-
Place of Origin:
-
Shandong,China
-
Machine Weight:
-
1315 kg
-
Product name:
-
Mini Skid Steer Loader
-
Keyword:
-
Skid Steer Mini
-
Name:
-
Mini Tracked Loader
-
Drive type:
-
Crawler Drive
-
Key words:
-
Small Mini Loader
-
Application:
-
Building
-
Model:
-
HT-V1000
-
Color:
-
Customer's Requiement
-
Engine:
-
Kubota
-
Load capacity:
-
454KG
Product Description
Advantages:
1. The loader width is only 900mm, which allows you to freely enter and exit some small spaces for work (yard back door).
2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350mm(comparable products are only 2100㎜), and it can be loaded with high-rail trucks.
2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350mm(comparable products are only 2100㎜), and it can be loaded with high-rail trucks.
3. The engine uses EPA and Euro V double certified diesel power (Perkins 403J-18.5KW from the UK or Kubota D902-18.5KW from Japan), and the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders). Mode pilot handle (one-hand control of walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground)
5. Install a sponge pad at the operating position
6. Chassis height from the ground 185mm
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground)
5. Install a sponge pad at the operating position
6. Chassis height from the ground 185mm
7. At the beginning of the design, the convenience of maintenance was taken into consideration
Kata Yang
Wechat/whatsapp:+8615589781783
Tel:+8615589781783
Email:sales088@hightoptools.com
Wechat/whatsapp:+8615589781783
Tel:+8615589781783
Email:sales088@hightoptools.com
Specification
|
Model
|
HT-V1000
|
|
|
Engine
|
Perkins 403J-11
|
|
|
Specifications
|
|
|
|
Rated Power (KW)
|
18.4
|
|
|
Operating Weight
|
1538 Kg
|
|
|
Rated Operating Capacity
|
454 kg
|
|
|
Ground Pressure (Rubber)
|
2800 Kg/㎡
|
|
|
Auxiliary Std Flow
|
45 L/Min
|
|
|
Rotating speed (Rpm)
|
2800
|
|
|
Noise (Db)
|
≤95
|
|
|
Engine
|
|
|
|
Emissions Tier |
EU NRM 97/68/EC Stage 5
|
|
|
|
EPA Tier 4 Final
|
|
|
Engine Cooling
|
Liquid
|
|
|
Engine Fuel
|
Diesel
|
|
|
Displacement
|
1.131 L
|
|
|
Number of Cylinders
|
3
|
|
|
Performance
|
|
|
|
Tipping Load
|
1315 KG
|
|
|
Travel Speed
|
5.8 Km/h
|
|
|
Travel Speed - Reverse
|
3.9 Km/h
|
|
|
Capacities
|
|
|
|
Fuel Tank
|
25 L
|
|
|
hydraulic system
|
|
|
|
Hydraulic oil tank capacity
|
22 L
|
|
|
Pump Capacity
|
45 L/ Min
|
|
|
System Relief @ Quick Couplers
|
200 Bar
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
