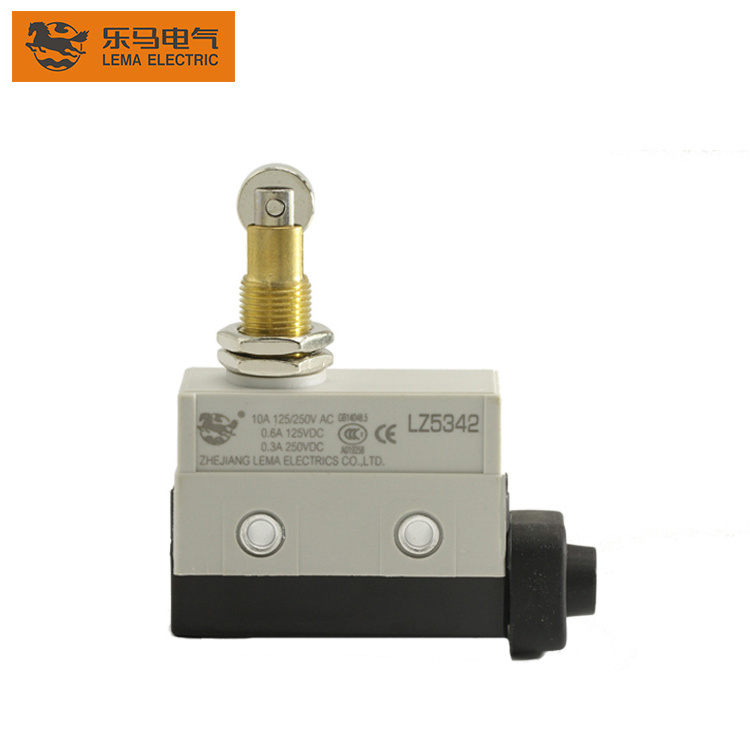

LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch
LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch

LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
LZ5
Protection Level:
IP65
Operating Temperature:
-10℃ to +85℃
Max. Current:
10A
Name:
Limit Switch
Certificate:
CCC CE
Material:
Plastic
Type:
SPDT
Color:
Grey and Black
Application:
Production equipment,machinery automation
Opearting force:
600g(5.88N)
Packing:
Carton
Mounting Size:
25.4±0.1mm
Size:
55*22.1*59.1mm

Quick Details

Max. Voltage:
250 VAC
Place of Origin:
Zhejiang, China
Brand Name:
LEMA
Model Number:
LZ5
Protection Level:
IP65
Operating Temperature:
-10℃ to +85℃
Max. Current:
10A
Name:
Limit Switch
Certificate:
CCC CE
Material:
Plastic
Type:
SPDT
Color:
Grey and Black
Application:
Production equipment,machinery automation
Opearting force:
600g(5.88N)
Packing:
Carton
Mounting Size:
25.4±0.1mm
Size:
55*22.1*59.1mm

LEMA LZ5342 Approved 10A 250VACV Door Light Limit Switch

Operating speed 0.01mm-50cm/s
Operating frequency Mechanical:120 operations/min
Electrical:30 operations/min
Initial insulation resistance 100MΩmin.(at 500VDC)
Initial contact resistance 25MΩmax.
Dielectric
strength
Between non-consecutive
terminals
1,000Vrms, 50/60Hz for 1 min
Between non-current carrying
metal parts and each terminal
2,000Vrms, 50/60Hz for 1 min
Between ground and each
terminal
2,000Vrms, 50/60Hz for 1 min
Vibration resistance 10-55Hz,1.5mm double amplitude
Max.shock resistance Destruction: 1000m/s 2
Malfunction: 300m/s 2
Operating
life
Mechanical life 2,000,000 operations min.
Electrical life 100,000 operations min.
