Drying, heat decomposition, combustion, cooling, reaction, and sublimation
1. Foodstuff
2. Feed and fertilizer
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110/220/380/415/480 V
-
Power:
-
1751750W
-
Dimension(L*W*H):
-
3000*500*3500mm
-
Weight (KG):
-
600
-
Marketing Type:
-
New Product 2022
-
warranty period:
-
2 years
-
Advantage:
-
Low Consumption High Efficiency
-
Heating source:
-
Gas Coal Oil Electric
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
Quick Details
-
Type:
-
Rotary Drying Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KR
-
Voltage:
-
110/220/380/415/480 V
-
Power:
-
1751750W
-
Dimension(L*W*H):
-
3000*500*3500mm
-
Weight (KG):
-
600
-
Marketing Type:
-
New Product 2022
-
warranty period:
-
2 years
-
Advantage:
-
Low Consumption High Efficiency
-
Heating source:
-
Gas Coal Oil Electric
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
24 hours online for dear you;
> 20 years experience in this field;
Delivery time < 7 days for your order;

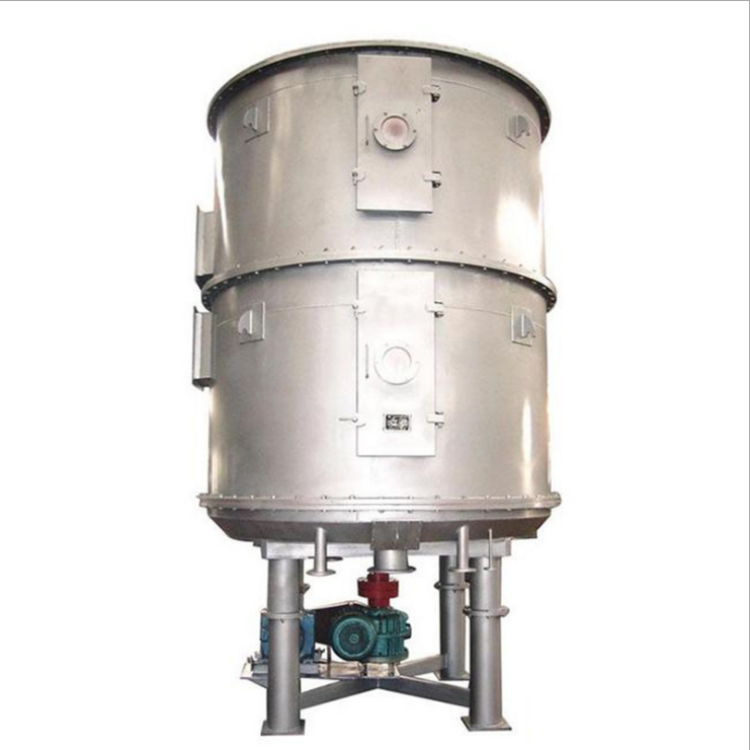

Main features of KRUGER RANGO Disc
Dryer
：
1. The whole machine is made of
SUS304 stainless steel
;
2. General selection of heat source: electric heating; Users can also choose steam heating or other heating methods (
users only need to tell us in advance what is your preferred heating method
);
3. The power consumption of the machine is very small: the min power consumption can reach
2.2Kw
;
4. Our delivery cycle is very short: the shortest delivery time is
7 days
;
5. Our warranty service lasts for a long time: up to
3 years
; If the parts are damaged within three years, we will immediately express the new parts to you;
6. If you are interested in this equipment, please feel free to ask us for advice; Our service staff will provide answers
online 7 * 24h
;
Product Paramenters
|
Items
|
Details
|
|
|
|
|||
|
Pruduce Name
|
High Standard disc Dryer
|
|
|
|
|||
|
Application
|
Plastics Processing, Food Processing
|
|
|
|
|||
|
Voltage
|
220V~480V,3-phase(can be customized)
|
|
|
|
|||
|
Power
|
20-200KW
|
|
|
|
|||
|
Microwave leak grade:
|
No more than 0.0005mW/sqm (5cm ditance)
|
|
|
|
|||
|
Function
|
Drying,dehydration
|
|
|
|
|||
|
Heating method
|
Electrical / gas / steam heating method
|
|
|
|
|||
|
Feature
|
High efficiency
|
|
|
|
|||
|
Equipment material
|
SUS304SU,S316, SUS316L stainless steel
|
|
|
|
|||
|
Machine Size(L*W*H)
|
Depends on different model
|
|
|
|
|||
|
Weight
|
About 1000kg
|
|
|
|
|||
|
Warranty time
|
3 years
|
|
|
|
|||
Details Images
Application field
The Disc Dryer Features:
(1) Easy control, wide application
1. Regulate thickness of materials, rotating speed of main shaft, number of harrow's arm, style of and sizes harrows achieve best drying process.
2. Each layer of drying plate can be fed with hot or cold media individually to heat or cold materials and make temperature control accurate and easy.
3. Dwell time of materials can be accurately adjusted.
4. Single flowing direction of materials without return flowing and mixing, uniform drying and stable quality, no re-mixing is required.
(2) Easy and simple operation
1. Start stop of dryer is quite simple.
2. After material feeding is stopped, they can be easily discharged out of the products by harrows.
3. Careful cleaning and observation can be carried inside the equipment through large-scale viewing window.
(3) Low energy consumption
1. Thin layer of materials, low speed of main shaft, small power and energy required for conveying system of materials.
2. Dry by conducting heat so it has high heating efficiency and low energy consumption.
1. Regulate thickness of materials, rotating speed of main shaft, number of harrow's arm, style of and sizes harrows achieve best drying process.
2. Each layer of drying plate can be fed with hot or cold media individually to heat or cold materials and make temperature control accurate and easy.
3. Dwell time of materials can be accurately adjusted.
4. Single flowing direction of materials without return flowing and mixing, uniform drying and stable quality, no re-mixing is required.
(2) Easy and simple operation
1. Start stop of dryer is quite simple.
2. After material feeding is stopped, they can be easily discharged out of the products by harrows.
3. Careful cleaning and observation can be carried inside the equipment through large-scale viewing window.
(3) Low energy consumption
1. Thin layer of materials, low speed of main shaft, small power and energy required for conveying system of materials.
2. Dry by conducting heat so it has high heating efficiency and low energy consumption.
Product packaging
1.Cargo Packaging
My dear customers, We are pleased to offer you customized items
*shipping mark;
*Logo;
*Professional QC to help you exam the goods before loading.
*Professional QC to help you exam the goods before loading.
2.Shipping Way
*Door to door.
*
LCL Cargo: By Sea/Air;
*FCL Cargo,Port to Port by sea;
*Customer freight agent or negotiable shipping way.
Customers can use your own shipping agent.
*FCL Cargo,Port to Port by sea;
*Customer freight agent or negotiable shipping way.
Customers can use your own shipping agent.
If you need our help, we can provide you the reliable shipping company.
Certifications
Strength Of Kruger Rango Company
After more than 20 years of hard work, Kruger Rango has achieved gratifying results in the field of food machinery and equipment manufacturing:
The main products are:
fruit and vegetable processing production line equipment; various drying equipment; pasteurization line equipment; smoking furnace, pulverizer, packaging machine and other products
;
kruger rango products are especially well received by North American customers, South American customers, European customers, Southeast Asian customers, and Australian customers;
The kruger rango team is willing to dedicate its products and technologies to each customer to help customers solve the equipment problems they face.
As long as you consult us: we will definitely serve you to the end, we promise:
7*24h online to answer your inquiries
.
