Quick Details
-
Thickness:
-
0.2 - 0.8 mm
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
36F320M
-
Product Name:
-

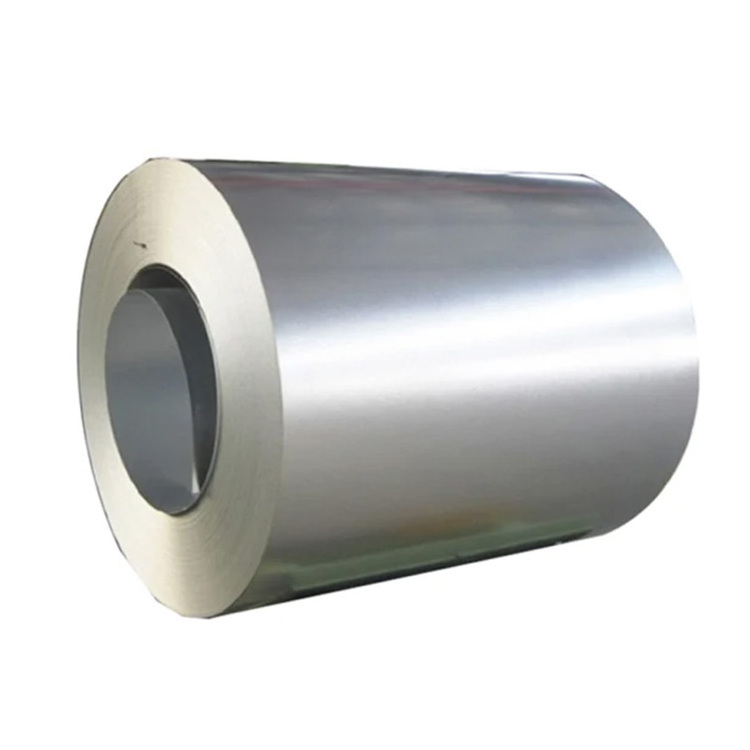

Oriented Silicon Steel Coil
-
Application:
-
Transformer Core
-
Material:
-
CRNO 50W470/600/800
-
Key words:
-
Silicon Steel Ei Lamination Transformer Core
-
Steel shape:
-
Steel Coil Crgos
-
Width:
-
1000mm-1500mm
-
Color:
-
Gray
-
PAYMENT TERM:
-
30%TT Advance + 70% Balance
-
MOQ:
-
1 Tons
-
Package:
-
Standard Seaworth Packing
Quick Details
-
Type:
-
Oriented Silicon Steel
-
Tolerance:
-
±1%
-
Grade:
-
silicon steel
-
Thickness:
-
0.2 - 0.8 mm
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
36F320M
-
Product Name:
-
Oriented Silicon Steel Coil
-
Application:
-
Transformer Core
-
Material:
-
CRNO 50W470/600/800
-
Key words:
-
Silicon Steel Ei Lamination Transformer Core
-
Steel shape:
-
Steel Coil Crgos
-
Width:
-
1000mm-1500mm
-
Color:
-
Gray
-
PAYMENT TERM:
-
30%TT Advance + 70% Balance
-
MOQ:
-
1 Tons
-
Package:
-
Standard Seaworth Packing
✦ Specification
|
Product Name
|
Electrical Steel, Lamination Steel, Silicon Electrical Steel, Silicon Steel, Relay Steel, Transformer Steel
|
|||
|
Category
|
Grain-Oriented Electrical Steel; Non-oriented electrical steel
|
|||
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS, EN
|
|||
|
Thickness
|
0.2- 0.8 mm
|
|||
|
Width
|
900-1230 mm
|
|||
|
Brand
|
JIABORUI
|
|||
|
Origin
|
China
|
|||
|
Packing
|
Export standard package (as per requirements)
|
|||
|
Payment Terms
|
30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight
|
|||
|
MOQ
|
3 tons per size
|
|||
|
Delivery time
|
15-40 days after receiving L/C or deposit
|
|||
|
Loading Port
|
Shanghai , China (any port in China )
|
|||
|
Remark
|
Specific requirement of alloy grade,temper or specification can be discussed at your request
|
|||
Title goes here.
Product advantages:
1.Stable performance 2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared,
punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
|
Mechanical Property
|
|
|
|
|
||||
|
Grade
|
Yeild Strength
(N/mm2)
|
Ultra-TensionStrength(N/mm2)
|
Ductility
(%)
|
Hardness
(HV1
|
||||
|
M35W230
|
430
|
560
|
20.0
|
225
|
||||
|
M35W250
|
415
|
550
|
20.5
|
220
|
||||
|
M35W270
|
400
|
515
|
20.5
|
215
|
||||
|
M35W300
|
360
|
480
|
21.5
|
195
|
||||
|
M35W360
|
350
|
480
|
23.5
|
190
|
||||
|
M35W440
|
275
|
420
|
27.5
|
165
|
||||
|
M35W550
|
265
|
415
|
33.5
|
160
|
||||
|
M50W250
|
430
|
560
|
19.0
|
230
|
||||
|
M50W270
|
410
|
550
|
21.5
|
225
|
||||
|
M50W290
|
395
|
545
|
22.5
|
220
|
||||
|
M50W310
|
385
|
510
|
24.5
|
210
|
||||
|
M50W350
|
350
|
475
|
26.5
|
190
|
||||
|
M50W400
|
320
|
460
|
36.0
|
170
|
||||
|
M50W470
|
295
|
425
|
35.0
|
160
|
||||
|
M50W600
|
280
|
410
|
37.0
|
140
|
||||
|
M50W800
|
285
|
405
|
38.5
|
135
|
||||
|
M50W1300(D)
|
250
|
360
|
40.0
|
115
|
||||
|
Insulating Coating
|
|
|
||
|
Coating types
|
M11
|
M21
|
||
|
Component
|
Chromium containing , semi organic coating
|
Chromium free, semi organic coating
|
||
|
Coating thickness(μm)
|
0.7~1.5
|
0.8~5.0
|
||
|
Interlayer resistance
(Ω•mm2 /slice)
|
≥100
|
≥100
|
||
|
Adhesive property
|
Class A or class B
|
Class A or class B
|
||
|
Punching property
|
Excellent
|
Excellent
|
||
|
Antirust property
|
Excellent
|
Excellent
|
||
|
Heat resisting property
|
Resistant annealing at 750 C, N2 protection, for 2h
|
Annealing resistance in general
|
||
