Quick Details
-
Model Number:
-
BK-PR32, BK-ASP96
-
Place of Origin:
-
China
-
Product name:
-
Automated Sample Processing System
-
Plate Position:
-
4pcs
-
Throughput:
-
96
-
Pipetting Principle:
-
Replacement of air
-
Pipetting Volume:
-
5-200ul
-
Function:
-
Aspirate, dispense, blow, mix, dilute
-
Display:
-
7-inch touch screen
-
Packing Size:
-
670*810*1314mm
-
Gross Weight:
-
76kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-PR32, BK-ASP96
-
Place of Origin:
-
China
-
Product name:
-
Automated Sample Processing System
-
Plate Position:
-
4pcs
-
Throughput:
-
96
-
Pipetting Principle:
-
Replacement of air
-
Pipetting Volume:
-
5-200ul
-
Function:
-
Aspirate, dispense, blow, mix, dilute
-
Display:
-
7-inch touch screen
-
Packing Size:
-
670*810*1314mm
-
Gross Weight:
-
76kg
BIOBASE

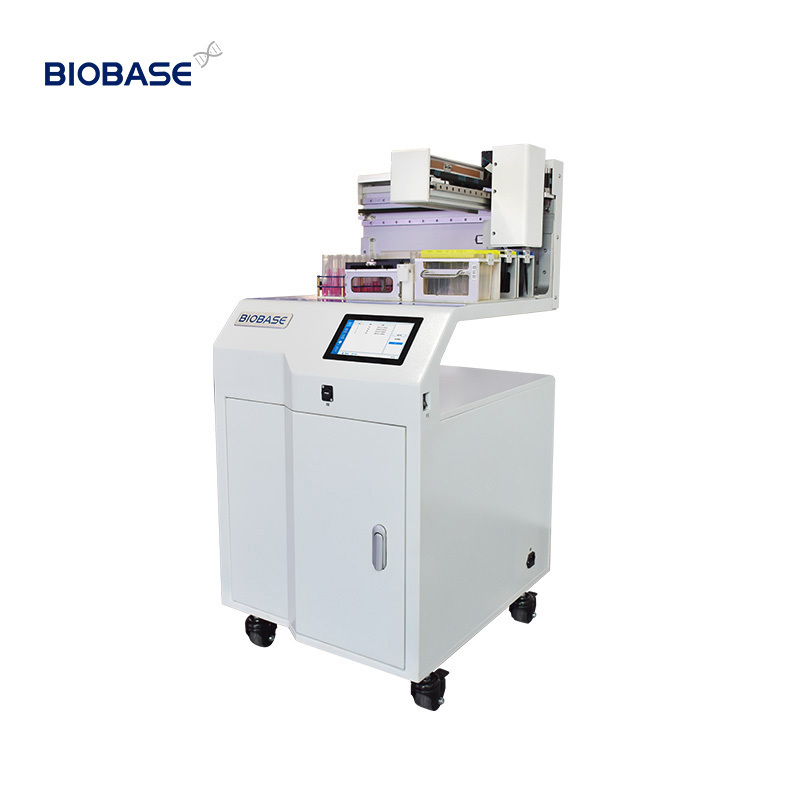

Automated Sample Processing System
Features：
Safety: Automated Sample Processing System is equipped with high-efficiency filter and built-in UV lamp, and it can be used with a biological safety cabinet, to effectively prevent aerosol pollution.
Efficient: Cooperative processing with dual robotic arms
Convenient: Visual interface operation, easy to operate
Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes)
specifications
Smart: One-key operation, smart dispensation
Safety: Automated Sample Processing System is equipped with high-efficiency filter and built-in UV lamp, and it can be used with a biological safety cabinet, to effectively prevent aerosol pollution.
Efficient: Cooperative processing with dual robotic arms
Convenient: Visual interface operation, easy to operate
Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes)
specifications
Smart: One-key operation, smart dispensation
Products Description
|
Model
|
BK-PR32
|
BK-PR48
|
|
|
Throughput
|
1-32
|
1-48
|
|
|
Processing Time
|
32 samples/10min
|
48 samples/16min
|
|
|
Sample Type
|
Plasma, serum, whole blood,swab solution and other samples
|
|
|
|
Sample Rack
|
1Pcs,3*12 with locking device (compatible
with a variety of sampling tubes) |
1Pcs,6*8 with locking device(compatible
with a variety of sampling tubes) |
|
|
RobotArm
|
1 pcs (Dispensation arm )
|
2 pcs (Dispensation arm and Screw cap arm)
|
|
|
Plate Position
|
2 pcs(Compatible with l-shaped and
square boards) |
3 pcs (Compatible with multi-specification
deep-well plates) |
|
|
Tip Position
|
3 pcs (Including tip waste box position)
|
|
|
|
Reagent Rack
|
1 pcs (4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube)
|
|
|
|
Protective Function
|
Can be used in a biological safety cabinet
External droplet catch tray design With air-tight and anti-drip design |
|
|
|
Liquid Detection
|
Pneumatic liquid level detection principle, intelligent detection of blocked needle
|
|
|
|
Pipetting Volume
|
5-100μl(1000/50μl Tip)
|
|
|
|
ipetting Accuracy
|
10μl, CV≤1.5%,Accuracy≤6.0%,5oμl Tip
5oμl, CV≤1.0%,Accuracy≤2.0%,1000μlTip 100μl, CV≤0.5%,Accuracy≤2.0%,1000μl Tip |
|
|
|
Power Supply
|
220V,50/60Hz;110V,60Hz
|
|
|
|
External Size (W"DH)
|
540*637*1113mm
|
827*794*1223mm
|
|
|
Net Weight
|
56kg
|
100kg
|
|
|
Package Size (W'DH)
|
670*810*1314mm
|
Main instrument:925*925*817mm;
Base cabinet:1030*995*1045 |
|
|
Gross Weight
|
76kg
|
Main instrument:115kg;
Base cabinet:105kg |
|
