Quick Details
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HS
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.3mm
-
Min. Line Width:
-
0.2mm
-
Min. Line Spacing:
-
0.2mm
-
Surface Finishing:
-
HASL
-

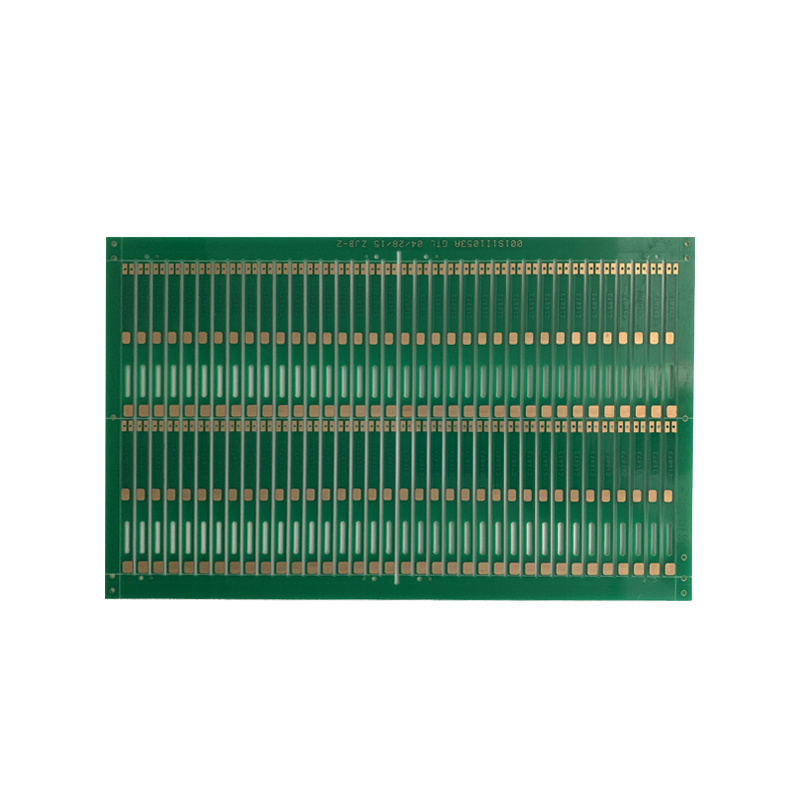

PCB name:
-
FR4 PCB
-
Number of layer:
-
2layer
-
Certificaion:
-
CE ROHS ISO9001
-
Warranty:
-
3years
-
Design service:
-
Available
-
Testing:
-
Function testing
-
Delivery:
-
DHL FedEx UPS
-
Solder mask:
-
Green
-
Other service:
-
SMT and DIP assembly
-
PCB clone:
-
Acceptable
Quick Details
-
Base Material:
-
FR4
-
Board Thickness:
-
1.6mm
-
Board Size:
-
Customizd
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HS
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.3mm
-
Min. Line Width:
-
0.2mm
-
Min. Line Spacing:
-
0.2mm
-
Surface Finishing:
-
HASL
-
PCB name:
-
FR4 PCB
-
Number of layer:
-
2layer
-
Certificaion:
-
CE ROHS ISO9001
-
Warranty:
-
3years
-
Design service:
-
Available
-
Testing:
-
Function testing
-
Delivery:
-
DHL FedEx UPS
-
Solder mask:
-
Green
-
Other service:
-
SMT and DIP assembly
-
PCB clone:
-
Acceptable
| Item | Production Capability |
| Layer | 1Layer-10Layer |
| Base Material | FR4,Aluminium,Copper core |
| Material Suppliers | KINGBOARD(KB),GUOJI(GDM),SHENYI etc. |
| Board Thickness(mm) | 0.40,0.60,0.80,1.00,1.20,1.60,2.00,3.0 |
| Max board size | 500x1500mm |
| Board Outline Tolerance | ±0.15 |
| Thickness Tolerance | ±5% |
| Mini Track Space | 0.2mm |
| Mini Track Width | 0.2mm |
| Mini Hole Size | 0.2mm |
| Copper Thickness | 18um,35um,70um,105um |
| Impedance Control Tolerance | ±10% |
| Surface Finishing | HASL,OSP,ENIG |
| Solder Mask Color | Green,Blue,White,Black,Yellow,Red |
| Certificates | CE ROHS UL |
Q: 1.Can i have a sample to test?
A: Yes,we can send you samples to test.
Q: 2.What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q: 3.What is the lead time?
A: Samples need 3-5days,mass production needs 7-10days,also according to the order volume .
Q: 4.Do you have MOQ limit?
A: Even 1 pcs,we care.
Q: 5.Can you offer the best price for us?
A: Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.
Q: 6.How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.
Q: 7.What are the payment terms?
A: You can pay us with Paypal,Western Union and T/T Bank.
Q: 8.Can we visit your factory?
A: Yes,welcome to visit our factory anytime,and we will lead you to visit our factory and our production line.
