Quick Details
-
Function:
-
wire winding and tying machine
-
Power:
-
800W
-
Weight:
-
38kg
-
Voltage:
-
110v/220v/230v/240v(customized)
-
Warranty:
-
12 Months
-
Binding diameter:
-
3-28mm
-
Winding diameter:
-
50-200mm
-
Twist length:
-
65-125mm
-
Twist speed:
-
0.6s/pc
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Jiangsu, China
-
Name:
-
wire twist tie machine Cable Coil Winding and Binding Machine
-
Function:
-
wire winding and tying machine
-
Power:
-
800W
-
Weight:
-
38kg
-
Voltage:
-
110v/220v/230v/240v(customized)
-
Warranty:
-
12 Months
-
Binding diameter:
-
3-28mm
-
Winding diameter:
-
50-200mm
-
Twist length:
-
65-125mm
-
Twist speed:
-
0.6s/pc

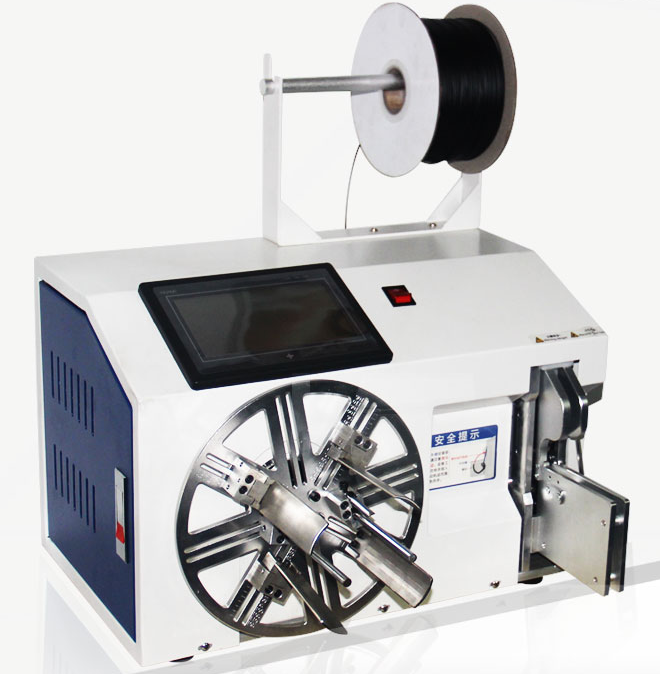

Video semi automatic wire twist tie machine Cable Coil Winding and Binding Machine
Main Features
This machine can wind wire to round shape & 8 shape and automatic cut the cable tie & twistit. It is widely used to bundle AC/DC power cord, USB data cable, video cable, HDMI cable, and other types of transmission wires.
1. It is equipped with step motors, adopted PLC touch screen to control cable tie length
2. The winding speed and winding cycle are both adjustable
3. Improve the working efficiency compared with the manual operation4. Reasonable price and good quality, easy to operate
| Name | Button screen wire winding and bundling machine | ||||
| Model | HX-26 | HX-36 | HX-46 | HX-56 | HX-60 |
| Binding diameter | 3-28mm | 8-30mm | 15-40mm | 18-45mm | 40-80mm |
| Winding diameter | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Twist length | 65-125mm | 75-140mm | 120-190mm | 120-200mm | 220-300mm |
| Twist speed | 0.6s/pc | 0.6s/pc | 0.6s/pc | 0.6s/pc | 0.6s/pc |
| winding speed | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s |
| Name | Touch screen wire winding and bundling machine | ||||
| Model | HX- 26 S | HX-36S | HX-46S | HX-56S | HX-60S |
| Binding diameter | 3-28mm | 8-30mm | 15-40mm | 18-45mm | 40-80mm |
| Winding diameter | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Twist length | 65-125mm | 75-140mm | 120-190mm | 120-200mm | 220-300mm |
| Twist speed | 0.6s/pc | 0.6s/pc | 0.6s/pc | 0.6s/pc | 0.6s/pc |
| winding speed | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s | 1-10pcs/s |
