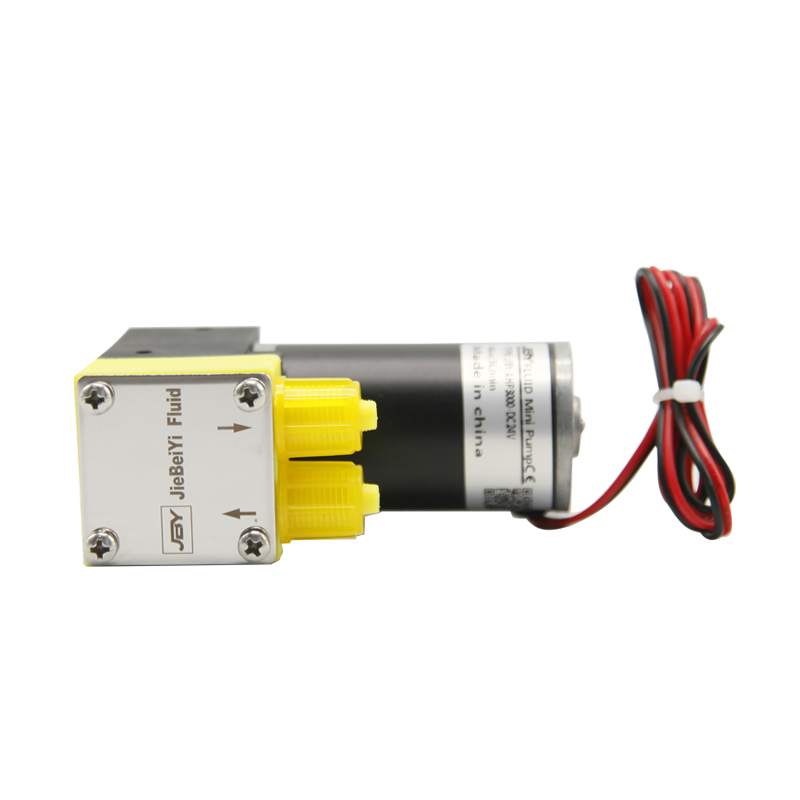

Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
JieBeiYi Fluid
-
Model Number:
-
JBY-AHP012-DC
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
10w
-
Cable Length:
-
N/M
-
Outlet Size:
-
N/M
-
Power:
-
10W
-
voltage:
-
DC12V/24V
-
Gas pressure:
-
0.12mpa
-
Flow rate:
-
3L/min
-
Negative pressure:
-
-0.06mpa
-
motor:
-
Brush motor/Brushless motor
-
Weight:
-
230g
-
Model:
-
JBY-AHP012-DC
-
Pump Type:
-
Miniature diaphragm pump
-
Size:
-
83mm*60mm*32mm
-
Certification:
-
CE ROSH ISO9001
Quick Details
-
Application:
-
Other, Automotive Industry, Commercial Buildings, Family Homes, HVAC OEM, Industrial Utilities, Machining
-
Pressure:
-
0.12mpa
-
Voltage:
-
DC12V/24V
-
Warranty:
-
1 year
-
Brand Name:
-
JieBeiYi Fluid
-
Model Number:
-
JBY-AHP012-DC
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
10w
-
Cable Length:
-
N/M
-
Outlet Size:
-
N/M
-
Power:
-
10W
-
voltage:
-
DC12V/24V
-
Gas pressure:
-
0.12mpa
-
Flow rate:
-
3L/min
-
Negative pressure:
-
-0.06mpa
-
motor:
-
Brush motor/Brushless motor
-
Weight:
-
230g
-
Model:
-
JBY-AHP012-DC
-
Pump Type:
-
Miniature diaphragm pump
-
Size:
-
83mm*60mm*32mm
-
Certification:
-
CE ROSH ISO9001
|
model
|
voltage
|
Positive pressure
(mpa)
|
Negative pressure
(mpa)
|
Gas flow
L/min
|
|
JBY-AY010-DCL
|
12V/24V
|
0.1Mpa
|
-0.069Mpa
|
3L/min
|
|
JBY-AY015-DCL
|
24V
|
0.15Mpa
|
-0.069Mpa
|
3.5L/min
|
|
JBY-AY020-DCL
|
12V
|
0.2Mpa
|
-0.075Mpa
|
4L/min
|
|
JBY-AHP012-DC
|
24V
|
0.12Mpa
|
--0.06Mpa
|
3L/min
|
performance parameter
|
model
|
JBY-AY-
DCL
|
JBY-AHP-
DC
|
JBY-AY020-DC
|
|
||||
|
In the above model column, "
DCL
" stands for rubber cover motor, and "
DC
" stands for ordinary motor. (Compared with ordinary motor,the performance of rubber cover motor is better and longer lifespan)
|
|
|
|
|
||||
|
motor type
|
Brushless motor （55mm)
|
Brushless motor （59mm)
|
Brush motor （55mm)
|
|
||||
|
Motor working life
|
＞3000H
|
＞2000H
|
|
|
||||
|
voltage
|
12v/24v
|
|
|
|
||||
|
Positive pressure
|
0.1~0.2Mpa
|
|
|
|
||||
|
Negative pressure
|
-0.06~-0.078Mpa
|
|
|
|
||||
|
Gas flow
|
3~4L/min
|
|
|
|
||||
|
Diaphragm material
|
EPDM/PTFE(Can be customized)
|
|
|
|
||||
|
Weight
|
220g
|
230g
|
210g
|
|
||||
|
Ambient temperature range
|
0~40℃
|
|
|
|
|||
|
Ambient humidity range
|
Relative humidity ≤80%
|
|
|
|
|||
|
certification
|
ISO9001, CE, ROHS
|
|
|
|
|||
Diaphragm material
|
Material
|
performance
|
|
|
|
|||
|
EPDM
|
Acid and alkali resistance, oxidation resistance, for organic solvents, animal and vegetable oils, alcohols, butanone, acetone has
a good resistance, oil resistance is relatively poor |
|
|
|
|||
|
PTFE
|
High and low temperature resistance and chemical stability, good viscosity, good resistance to all corrosive media
|
|
|
|
|||
|
|
|
|
|
|
|||
company information
Chang zhou Jiebeiyi Fluid Technology Co., Ltd.
was founded in 2018. It is a technology enterprise focusing on the research,production and sales of micro diaphragm pump and peristaltic pump. The company is located in the beautiful south of the Yangtze River, Chang zhou, Jiangsu.
The company has many years of research and development experience, and the product parameters are complete in line with ROHS and CE international standards, and can be customized and matched to research and development on demand, and large-scale mass production capacity is stable.
The company has many years of research and development experience, and the product parameters are complete in line with ROHS and CE international standards, and can be customized and matched to research and development on demand, and large-scale mass production capacity is stable.
FAQ
Q：What's your main products of your company?
A：We specialized in all kinds of mini pumps (micro BLDC/DC water pump,vacuum pump,high performance diaphragm air/liquid pump) with excellent quality and competitive.
Q: What is the principle of diaphragm pump?
A：The micro- diaphragm pump is an elastic diaphragm mounted on an eccentric crankshatft, which moves repeated!under the circumferential motion of the motor. The cavity is deformed, the time medium is pumped and discharge and the pump is completely oil-free in the process of transfer, evacuation and compression.
Q: What are the characteristics of diaphragm pumps?
A：Self-priming DC structure compact, oil-free lubrication, strong acid-base corrosion resistance, low noise/low vibration, long life/light weight, low power consumption/maintenance-free, can be installed in any direction.
Q：In what fields can micro-diaphragm pumps be used?
A：Diaphragm pumps are widely used in the following industries.medical equipment, food / toxicology, filtration, chromatography,sterilizer, cuvette cleaning,liquid transfer and distribution,air sampling, gas analysis, carbon dioxide monitoring,sphygmomanometer, air cushion wound drainage, ozone generator and analyzer, inkjet printer, compression unit etc.
Q：Do you have a factory?
A：Yes! We are a professional manufacturer.We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
