1.Advanced, perfect and flexible process design.
2.equipment selection for domestic advanced products, to ensure the advancement of technical equipment.
3 The animal feed making machine is used to make crushed material to pellets for animal.
4.The raw materials can be sawdust, crushed leaf, straw, tree branch, rice husk, sunflower stalk, wood chips.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FH
-
Voltage:
-
220V-10KV
-
Dimension(L*W*H):
-
160*80*140cm
-
Motor Power (Kw):
-
20kw
-
Power (kW):
-
30kw
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Hot Product 2022
-
Capacity:
-
100-150kg/ Per Hour
-
Working Life for Die:
-
2500-3000Hours
-
Working Life for Rollers:
-
1500-2000Hours
-
Color:
-
Customer Required
-
Raw material:
-
Peanut Shell
-
Application:
-
Make Biomass Pellets
-
Usage:
-
Biomass Energy Industry
-
Motor:
-
Chinese Brand
-
Pellet diameter:
-
2-8mm
-
Materiall for making wood pellets:
-
Wood Shaving Straw
Quick Details
-
Pellet Diameter (mm):
-
2 - 8
-
Output (kg/h):
-
300 - 500 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FH
-
Voltage:
-
220V-10KV
-
Dimension(L*W*H):
-
160*80*140cm
-
Motor Power (Kw):
-
20kw
-
Power (kW):
-
30kw
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Hot Product 2022
-
Capacity:
-
100-150kg/ Per Hour
-
Working Life for Die:
-
2500-3000Hours
-
Working Life for Rollers:
-
1500-2000Hours
-
Color:
-
Customer Required
-
Raw material:
-
Peanut Shell
-
Application:
-
Make Biomass Pellets
-
Usage:
-
Biomass Energy Industry
-
Motor:
-
Chinese Brand
-
Pellet diameter:
-
2-8mm
-
Materiall for making wood pellets:
-
Wood Shaving Straw

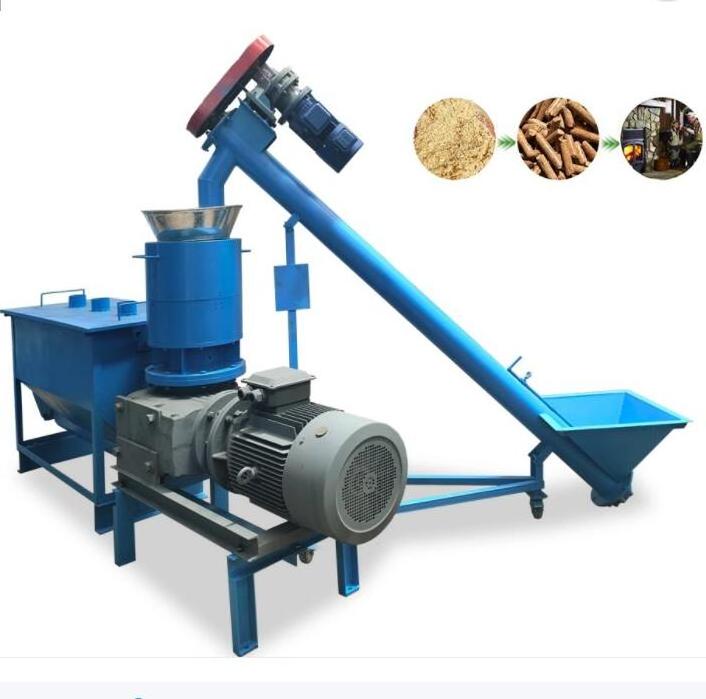

Our Flat Die Pellet Machine can produce all kinds of biomass pellets.
It may also be applicable to biological fertilizer for low-temperature granulation. Suitable for large farms and organic herbal medicine and chemical industry, etc.
It may also be applicable to biological fertilizer for low-temperature granulation. Suitable for large farms and organic herbal medicine and chemical industry, etc.
|
Category |
Type |
Powder (kw) |
Capacity (kg/hour) |
Size (cm) |
Weight (kgs) |
|
Motor semi package type B |
FH-M150B
|
5.5
|
50-100
|
800x450x700
|
100/105
|
|
|
FH-M200B
|
7.5
|
80-120
|
1050x480x930
|
200/230
|
|
|
FH-M230B
|
11
|
120-200
|
1180x540x1000
|
290/320
|
|
|
FH-M260B
|
15
|
160-250
|
1240x540x1000
|
320/360
|
|
|
FH-M300B
|
22
|
250-400
|
1300x560x1100
|
410/450
|
|
|
FH-M400B
|
30
|
350-450
|
1600x650x1300
|
660/700
|
|
Motor all inclusive type C |
FH-M150C
|
5.5
|
50-100
|
1000x480x780
|
100/105
|
|
|
FH-M200C
|
7.5
|
80-120
|
1050x550x830
|
200/230
|
|
|
FH-M230C
|
11
|
120-200
|
1200x560x950
|
290/320
|
|
|
FH-M260C
|
15
|
160-250
|
1240x580x1000
|
320/360
|
|
|
FH-M300C
|
22
|
250-400
|
1300x620x1100
|
410/450
|
|
|
FH-M400C
|
30
|
350-450
|
1780x670x1400
|
660/700
|
A: New flat die pellet mill in first use may not produce pellets, because of the low smoothness of mould and bad cooperation in new devices. After using oily material for a period, the pellet machine
can run smoothly.
B: The clearance between rollers and dies is too large. You can tighten the screw to narrow the gap to1.5-2.5 mm.
C: Necessary steps to update a new die or roller shell because of wear and tear caused by long-term service.
can run smoothly.
B: The clearance between rollers and dies is too large. You can tighten the screw to narrow the gap to1.5-2.5 mm.
C: Necessary steps to update a new die or roller shell because of wear and tear caused by long-term service.
Electric Power
Plant Chemical
Plant Biomass workshop
House Burner
Biomass Burner
Wood Pellet
Jinan F.H.International Co.,Ltd is located in Jinan city ,Shandong Province , China.We are a professional Biomass Pellet Machines
company with more than 10 years experience.we have advanced technology and scientific management, we have developed the high quality machines with reliable functions, reasonable design, energy saving and high efficiency low consumption.
company with more than 10 years experience.we have advanced technology and scientific management, we have developed the high quality machines with reliable functions, reasonable design, energy saving and high efficiency low consumption.
Our main products contain: Wood chipper ,Hammer Mill,Drum Dryer,Biomass pellet machine, Biomass briquetting machine ,Bimmass pellet ,Biomass burner, Biomass boiler ,Converyer ,Packing machine and all kinds of Biomass Pellet machine production line ,etc.we also have more experience and technology to design and install all kinds of complete production line .
We always provide the customers with the first-class service and high quality products, especially the high technology products.
Our philosophy is "to develop long-term and mutually beneficial cooperation with customers and to be a strong base of our
customers in China".We believe, F.H. Machine will be your most trusty and excellent partner in the future.
Our philosophy is "to develop long-term and mutually beneficial cooperation with customers and to be a strong base of our
customers in China".We believe, F.H. Machine will be your most trusty and excellent partner in the future.
