Quick Details
-
Application:
-
Digital TV , IPTV Head-end System
-
Input:
-
24 HD MI,support HDCP
-
Output:
-
ASI,IP
-
Protocol:
-
Support UDP RTP Multicast Unicast
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 Layer 2 (HE-AAC V2, LC-AAC Optional), AC3 pass through
-
Resolution:
-
1920x1080P/1080i/720P @50/60Hz
-
Low latency:
-
support
-
Support:
-
720P, 1080I, 1080P HD video format, and HD to SD
-
Video format:
-
480I, 576I, 720P,1280P, 1080I,1080P HD/SD
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HP824H
-
Application:
-
Digital TV , IPTV Head-end System
-
Input:
-
24 HD MI,support HDCP
-
Output:
-
ASI,IP
-
Protocol:
-
Support UDP RTP Multicast Unicast
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 Layer 2 (HE-AAC V2, LC-AAC Optional), AC3 pass through
-
Resolution:
-
1920x1080P/1080i/720P @50/60Hz
-
Low latency:
-
support
-
Support:
-
720P, 1080I, 1080P HD video format, and HD to SD
-
Video format:
-
480I, 576I, 720P,1280P, 1080I,1080P HD/SD

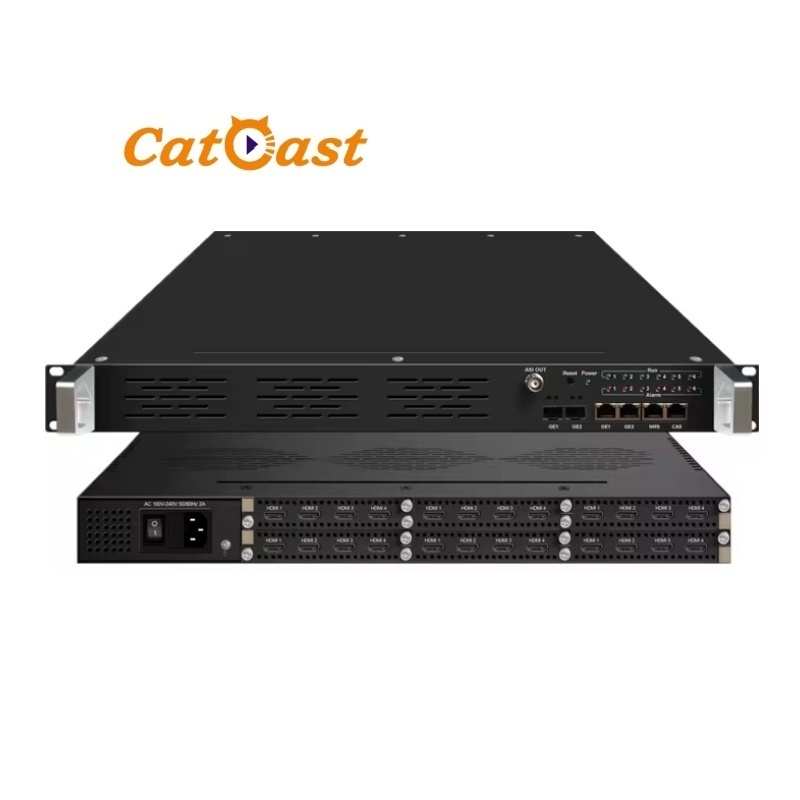

24 Channels HD MI to IP H.264 HD Encoder
Product Description
Summary
HPR824H 24 in 1 H.264 HD/SD Encoder is a professional audio&video encoding and multiplexing device. This device has 24 HD MI input interfaces and 1 ASI output interfaces which can output the multiplexing and condensed data. Moreover, this device can simultaneously encode 24 channel audio& video signals and can multiplex stream through ASI and IP port. Besides, it supports the criterion MPEG-4/H.264 encoding format, and the audio encoding formats support MPEG-1 Layer 2,AC3 passthrough (HE-AAC V2, LC-AAC Optional). In addition, this encoder has the IP output function; users can manage the device according to the Web. In conclusion, its high compatibility and integrate design make this device widely used in a variety of digital TV broadcasting systems and IPTV headend system.
Key Features
● Support 4 HD MI channel input/module, maximum 6 modules in one chassis
●
Maximum support 24xHD MI input
●
Support HDCP
●
Support H.264/AVC video encoding
●
Support 720P, 1080I, 1080P HD video format, and HD (1080i/720p) to SD (576i/480i) downscale conversion
●
Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding; AC3 Passthrough
●
Support audio gain control
●
Low delay 50-500 ms available
●
Support PSI/SI editing and inserting
●
Support VBR/CBR video bitrate mode
●
Support 480I, 576I, 720P,1280P, 1080I,1080P HD/SD video format
●
Support ASI output MPTS
●
Supports 8 MPTS (UDP, RTSP) and 512 SPTS (UDP, RTSP/ RTP) output(unicast/multicast)
●
Support IP null packet filter
●
Real-time output bit-rate monitoring
●
Update device through NMS port
● Support web management
Specification
|
Input
|
24 HD MI inputs
|
|
|
|
|||
|
Video
|
Resolution
|
1920×1080_60P, 1920×1080_50P,
1920×1080_60i, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i |
|
|
|||
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
|||
|
|
Bit-rate
|
0.8Mbps~19Mbps each channel
|
|
|
|||
|
|
Rate Control
|
CBR/VBR
|
|
|
|||
|
|
GOP Structure
|
IBBP
|
|
|
|||
|
|
Advanced Pretreatment
|
De-interlacing, Noise reduction, Sharpening
|
|
|
|||
|
Audio
|
Encoding
|
MPEG-1 Layer 2 (HE-AAC V2, LC-AAC Optional),
AC3 pass through |
|
|
|||
|
|
Sampling rate
|
48KHz
|
|
|
|||
|
|
Resolution
|
24-bit
|
|
|
|||
|
|
Bit-rate
|
64kbps~320kbps each channel
|
|
|
|||
|
Multiplexing
|
Multiplex with local 24 channels TS
|
|
|
|
|||
|
Stream output
|
1-way ASI output, BNC interface
|
|
|
|
|||
|
|
8 MPTS and 512 SPTS over UDP, RTSP and RTP, 1000Base-T Ethernet interface
(unicast/multicast) |
|
|
|
|||
|
System function
|
LCD/keyboard, network management, Web-NMS
Chinese and English language |
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension(W×L×H)
|
482mm×410mm×44mm
|
|
|
|||
|
|
Approx weight
|
8kg
|
|
|
|||
|
|
Environment
|
0~45℃(work)；-20~80℃（Storage）
|
|
|
|||
|
|
Power requirements
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
|
|||
|
|
Power consumption
|
20W
|
|
|
|||
Principle
Chart
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
