Quick Details
-
Voltage:
-
220V
-
Power:
-
3 KW
-
Dimension(L*W*H):
-
350*550*850 MM
-
Weight:
-
80 kg
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
blue , yellow
-
function:
-
crush all kinds of grains to powder
-
crushed size:
-
0.4-15 mm
-
Main working part:
-
hammer mills
-
suitable material:
-
corn, straw, wood logs etc
-
spare part:
-
screen, hammer mills
-
package:
-
wooden box or carton
-
other name:
-
corn cob grinding machine
-
dust:
-
cyclone and fan to collect
-
diesel engine:
-
we can design for you
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HY
-
Model Number:
-
9FQ-320
-
Voltage:
-
220V
-
Power:
-
3 KW
-
Dimension(L*W*H):
-
350*550*850 MM
-
Weight:
-
80 kg
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
blue , yellow
-
function:
-
crush all kinds of grains to powder
-
crushed size:
-
0.4-15 mm
-
Main working part:
-
hammer mills
-
suitable material:
-
corn, straw, wood logs etc
-
spare part:
-
screen, hammer mills
-
package:
-
wooden box or carton
-
other name:
-
corn cob grinding machine
-
dust:
-
cyclone and fan to collect
-
diesel engine:
-
we can design for you
-
Certification:
-
ISO9001
Farm use corn cob grinding machine
Introduction of the corn cob grinding machine
The 9FQ series corn cob grinding machine is used to crush all kinds of grains to powder and the powder size is adjustable between 0.4-22 mm. The hammers inside the machine make it high efficiency and durable.
9FQ series corn cob grinding machine crush grains by highspeed rotating hammers.
After the materials coming into the crushing room, they will become power rapidly by continuous high speed blow of the hammer mill and crushing room. Then go out of the crushing room through different size sieve.
It can be used for all kinds of grains, straw, is universal crusher, which makes your work easier
Technical parameter of the corn cob grinding machine
| Model |
Motor power
(kw) |
weight
(kg) |
Outsize
(mm) |
Capacity
(kg/h) |
| 9FQ-320 | 3 | 50 | 350*550*850 | 100-300 |
| 9FQ-360 | 4HP | 60 | 400*550*850 | 200-300 |
| 9FQ-360 | 5.5 | 110 | 650*600*1050 | 200-600 |
| 9FQ-400 | 7.5 | 160 | 700*650*1050 | 300-800 |
| 9FQ-420 | 11 | 180 | 780*700*1100 | 400-1000 |
| 9FQ-500 | 15 | 200 | 900*850*1250 | 500-1500 |
| 9FQ-600 | 22 | 500 | 1350*950*1550 | 1000-2000 |
| 9FQ-700 | 30 | 735 | 1450*1050*1650 | 1500-3000 |
| 9FQ-800 | 30 | 1220 | 1750*1350*1800 | 3000-5000 |
| 9FQ-900 | 37 | 1835 | 1950*1550*1950 | 4000-8000 |
| 9FQ-1000 | 55 | 2500 | 2250*1750*2050 | 5000-12000 |
Pictures of the corn cob grinding machine

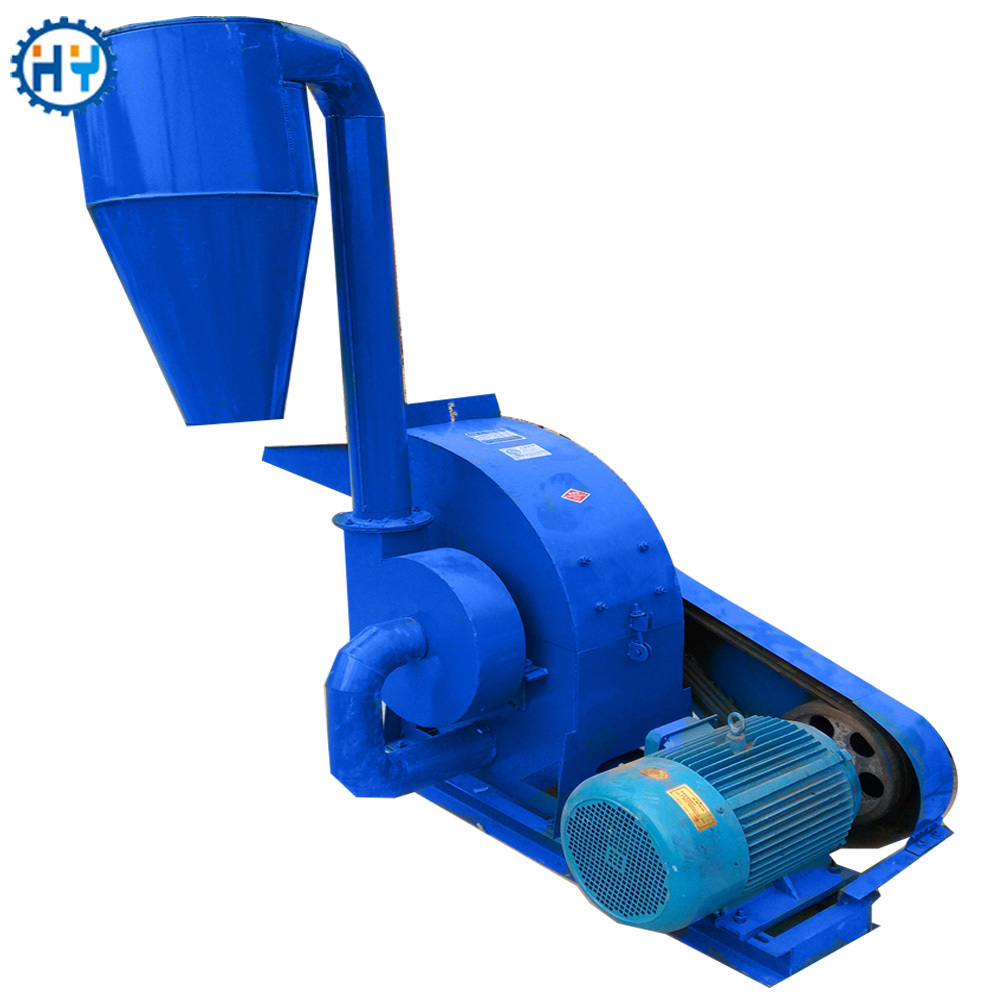

9FQ-320 corn cob grinding machine with cyclone to reduce the dust
9FQ-360 corn cob grinding machine
large quantity corn cob grinding machinein warehouse
9FQ-400 corn cob grinding machine
large capacity for automatic line
working site of corn cob grinding machine
crushed corn powder with different size
