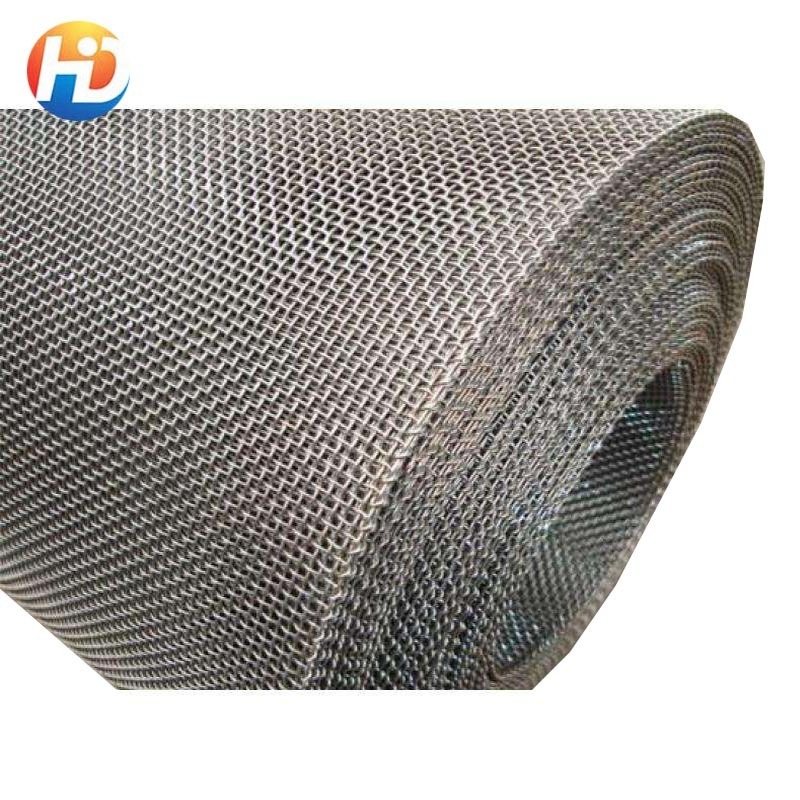

304 316L stainless steel filter wire mesh filter roll/sieve

304 316L stainless steel filter wire mesh filter roll/sieve

FOB Reference Price: Get Latest Price

≥300 Square meters

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Model Number:: HAODI STAINLESS STEEL MESH

Brand Name:: HD

Name:: Anping factory stainless steel filter wire mesh

Sample:: Free

Business:: manufacturer

Usage:: Filters

Stainless mesh width:: 0.5-2.0mm

Stainless mesh length:: 30-50m

Stainless mesh hole:: 2-650mesh

Product name:: stainless steel wire mesh

Quick Details

Material:: STAINLESS STEEL WIRE

Type:: Weave Wire Mesh

Application:: Screen

Place of Origin:: Hebei, China

Model Number:: HAODI STAINLESS STEEL MESH

Brand Name:: HD

Name:: Anping factory stainless steel filter wire mesh

Sample:: Free

Business:: manufacturer

Usage:: Filters

Stainless mesh width:: 0.5-2.0mm

Stainless mesh length:: 30-50m

Stainless mesh hole:: 2-650mesh

Product name:: stainless steel wire mesh

about our factory pls check the video

our stock work shop 1

our stock work shop 2

our stock work shop 3

our stock work shop 4

Stainless steel wire mesh is the main product of company, with more than 20 years manufacture

the stainless steel wire mesh can be: 302, 304, 304L, 316, 316L, 310, 430 etc. According to weave

methods, it has plain weave and twill weave. We are capable of producing stainless steel wire mesh

till 635 mesh for square mesh, and 2800mesh for Dutch weave mesh

stainless steel filter wire mesh specification
mesh Inch	wire diameter mm	hole size inch
1*1	0.08	2.03	0.92
2*2	0.063	1.6	0.437
3*3	0.054	1.37	0.279
4*4	0.063	1.6	0.187
4*4	0.047	1.19	0.203
5*5	0.041	1.04	0.159
6*60	0.035	0.89	0.132
8*8	0.028	0.71	0.097
10*10	0.025	0.64	0.075
10*10	0.02	0.51	0.08
12*12	0.023	0.584	0.06
12*12	0.02	0.508	0.063
14*14	0.023	0.584	0.048
14*14	0.02	0.508	0.051
16*160	0.018	0.457	.0445
18*18	0.017	0.432	0.0386
20*20	0.02	0.508	0.03
20*20	0.016	0.406	0.034
24*24	0.014	0.356	0.0277
30*30	0.013	0.33	0.0203
30*30	0.012	0.305	0.0213
30*30	0.009	0.229	0.0243
35*35	0.011	0.279	0.0176
40*40	0.01	0.254	0.015

stainless steel filter wire mesh specification
mesh Inch	wire diameter mm	hole size inch
50*50	0.009	0.229	0.011
50*50	0.008	0.203	0.012
60*600	0.0075	0.191	.0092
60*60	0.007	0.178	0.0097
70*70	0.0065	0.165	0.0078
80*80	0.0065	0.165	0.006
80*80	0.0055	0.14	0.007
90*90	0.005	0.127	0.0061
100*100	0.0045	0.114	0.0055
100*100	0.004	0.102	0.006
100*100	0.0035	0.089	0.0065
110*110	0.004	0.1016	0.0051
120*120	0.0037	0.094	0.0064
150*150	0.0026	0.066	0.0041
160*160	0.0025	0.0635	0.0038
180*180	0.0023	0.0584	0.0029

stainless steel filter wire mesh specification
mesh Inch	wire diameter mm	hole size inch
200*200	0.0021	0.0533	0.0029
250*250	0.0016	0.0406	0.0024
270*270	0.0016	0.0406	0.0021
300*300	0.0051	0.0381	0.0018
325*325	0.0014	0.0356	0.0017
400*400	0.001	0.0254	0.0015
500*500	0.001	0.0254	0.001
635*635	0.0008	0.0203	0.0008

Plain Duthch Weave
mesh inch	wire diameter mm	um	um
12*64	0.024*0.0165	270-285	200-205
14*88	0.020*0.013	225-245	150-155
20*150	0.0098*0.007	155-165	100-105
24*100	0.015*0.010	115-125	80-85
30*150	0.009*0.007	95-100	65-70
40*2005	0.007*0.0055	65-70	55-60
50*250	0.0055*0.0045	55-60	40-45
80*400	0.0049*0.0028	43-48	35-40

Twill Dutch Weave
mesh inch	wire diameter	um	um
20*250	0.0098*0.0079	110-120	98-105
30*360	0.0098*0.0060	90-100	80-84
40*560	0.0070*0.0040	70-75	47-52
120*400	0.0040*0.0025	50-55	37-43
120*160	0.0040*0.0025	40-45	28-32
80*700	0.0040*0.0030	35-40	24-26
200*600	0.0024*0.0018	28-32	19-21
165*800	0.0028*0.0020	24-26	14-16
165*1400	0.0028*0.0016	16-18	40432
200*1400	0.0028*0.0016	40526	40304
250*1400	0.0022*0.0016	40494	40241
325*2300	0.0015*0.0010	40399	40212

Reverse Plain Dutch
mesh	wire diameter mm	kg/m2	um
290*76	0.090*0.19	1.27	40
400*120	0.058*0.10	0.64	30
625*104	0.040*0.15	0.84	28
