- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ES
-
Model Number:
-
Custom
-
Product name:
-

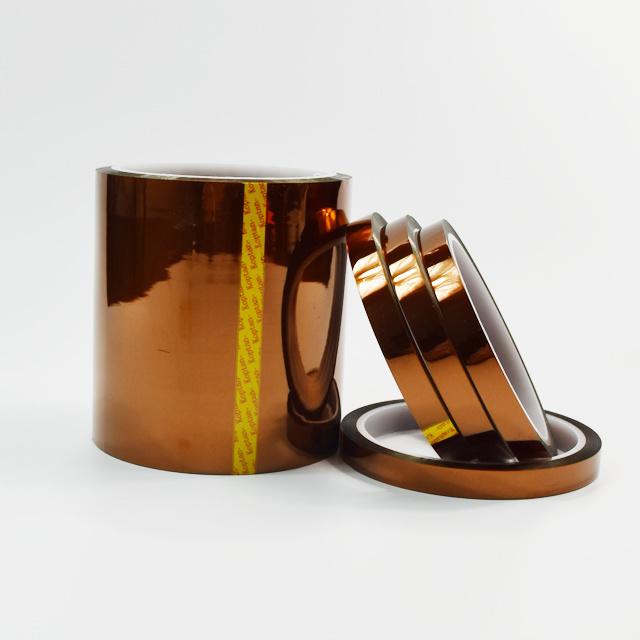

Polyimide Film with silicone PI Kaptons Adhesive Tape 10MM*30M*80mic
-
Raw Materials:
-
Polymide + silicone
-
Color:
-
Tea color, amber
-
Width:
-
customized, min. 1mm, max. 1.2m
-
Length:
-
30m
-
Thickness:
-
80mic
-
Application:
-
Heat-resistant
-
Packing:
-
Polybag + carton
-
Sample:
-
Freely Provided
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Water Activated, Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ES
-
Model Number:
-
Custom
-
Product name:
-
Polyimide Film with silicone PI Kaptons Adhesive Tape 10MM*30M*80mic
-
Raw Materials:
-
Polymide + silicone
-
Color:
-
Tea color, amber
-
Width:
-
customized, min. 1mm, max. 1.2m
-
Length:
-
30m
-
Thickness:
-
80mic
-
Application:
-
Heat-resistant
-
Packing:
-
Polybag + carton
-
Sample:
-
Freely Provided
Polyimide Film with silicone PI Kaptons Adhesive Tape 10MM*30M*80mic
| High Temperature Tape | ||
|
|
|
|
High Temperature Masking Tape Base material: crepe paper Temperature resistance: 260 - 300°C Durable time: 30 minutes
Application: High temperature painting, stoving varnish, sand blasting, electroplating & capacitance, and high temperature braiding.
Heat resistant High Temperature Masking Tape for covering protective.
Performance: Excellent electrical performance, good insulation, high temperature, acid and corrosin resistance, low electrolysis.
|
Kapton tape / Goldfinger tape Base material: Polymide + silicone Total Thickness: 0.03-0.15mm Temperature resistance: 260 - 300°C Durable time: 30 minutes
Application: PCB, SMT tin stove, wave soldering, hot tin hole maching, cellphone battery, transformers and other industries
Heat resistant Kapton tape / Goldfinger tape for covering protective.
Performance: Excellent electrical performance, good insulation, high temperature, acid and corrosin resistance, low electrolysis.
|
Green heat tape Base material: polyester film Total Thickness: 0.02-0.125mm Temperature resistance: 200 - 260°C Durable time: 30 minutes
Appication: lithium cell, transformers, circuit boards, SMT tin stoves, resistor-capacitor, anodic oxidation, and such industrial products.
Heat resistant green tapes for covering protective.
Performance: Acid, corrosion and high temperature resistance, no residue. Mainly used in painting and electroplating industry for shielding protection, and other electronic components, high-temperature protection. |
1. Polyimide kaptons tapes are widely used in the packing of lithium cell, transformers, circuit boards, SMT tin stoves, resistor-capacitor, anodic oxidation, and such industrial products.
2. Teflon adhesive tapes are made based on fluorine resin glass cloth, coated with poly-hydrocarbon silicone adhesive. and takes brown, black, white as the main colors.
Telfon adhesive tapes are widely used in the sealing of bags, the rolls of slasher, the stripping of thermoplastic, and heating the knife of packaging machines.
3. Mara tapes is also named Mylar tapes. it's a single-sided tape, based on polyester film. it's widely used, as insulated material, in transformers, motors, capacitors, and other electrical machines,electronic components.
4. Kapoton tapes (goldfinger tape) is also named polyimide tape, based on polyimide film. it's widely used in printed circuit boards, SMT tin stoves, lithium cell, transformers, and other industrial process.
5. Heat resistant green tapes for covering protective.
| Product type: | Heat resistant polyimide goldfinger tape / kapton tape / tea color adhesive tape |
| Raw material: | Polyimide + silicone |
| Thickness: | 15mics |
| Width: | customized, min. 1mm, standard 500mm, max. 1.2m |
| Adhesion: | 8N/25mm |
| Tensile: | 135N/25mm |
| Temperature Resistance: | 280 o C/1 hour |
| Color: | Tea color/amber |
| Sample: | Free in 5 rolls |
| Packing way: | Polybag, and carton ( on requirements) |
| Performance: |
1. Frequency conversion power supply in electronic industry. also use as a perfect heat resistance tape on 3d printing, powder coating, tin furnace, etcs
2. Protection of Printed Circuit Boards during wave soldering 3. Insulation on Transformers, Motors and Coils, Fiber Optics Cables, Solar Panels. 4. High temperature masking 5. Excellent electrical insulation 6. Outstanding dimensional stability 7. Great thermal resistance 8. Leaves no defective gum when tear off 9. Discs are on a clear, slit back liner for easy removal |
