Quick Details
-
Color:
-
full color
-
Panel Size:
-
500*1000mm, 500*1000mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
HS Code:
-
8528591090
-
Resolution:
-
10mm
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Brightness:
-
≥7500cd/m2
-
led module size:
-
250*250mm
-
Scanning Mode:
-
1/16 Scan
-
Average power:
-
400w
-
Lamp:
-
SMD 2121
-
Pixel density:
-
65536dot/m2
-
Pixels:
-
10mm
Quick Details
-
Application:
-
indoor
-
Type:
-
LED
-
Brand Name:
-
Huacai
-
Color:
-
full color
-
Panel Size:
-
500*1000mm, 500*1000mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
HS Code:
-
8528591090
-
Resolution:
-
10mm
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Brightness:
-
≥7500cd/m2
-
led module size:
-
250*250mm
-
Scanning Mode:
-
1/16 Scan
-
Average power:
-
400w
-
Lamp:
-
SMD 2121
-
Pixel density:
-
65536dot/m2
-
Pixels:
-
10mm

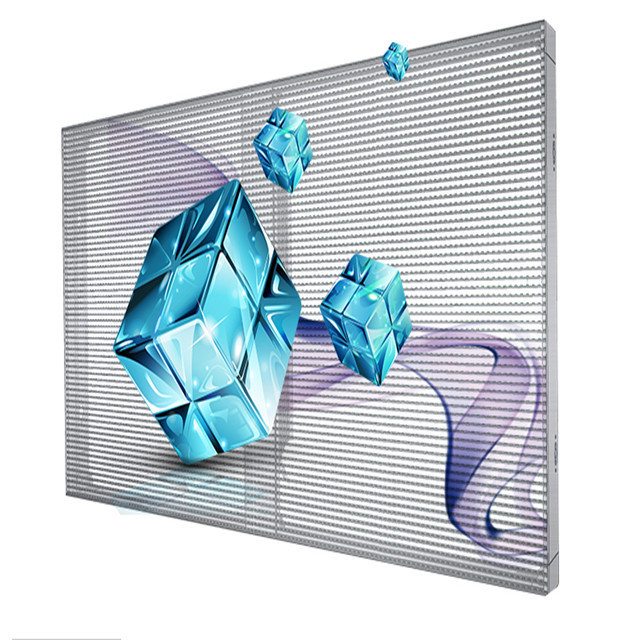

1.Product Image
Application & brief introduction
1 Applicable to shopping malls, airports, hotels, cars 4S shop and other occasions fixed installation
2 Standard module size According to the best pixel standard of the project, you can use the standard module size to assemble the corresponding large screen.
3 Quick and easy installation design, transparent LED display modular design, can quickly and easily fixed on the bracket. When the module is made into a large screen by hand, the vertical bar is very small, improve the transparency, just manual installation, you can easily rely on the bracket to fight together the module.
Supportting Cabinet size customization
Above is the satndard cabinet size ,we can offer customized cabinet according to your project information with much low customized cost.
(1) Technical Parameter
| Transparent led display (outdoor) | |||
| Pixel Pitch | 3.91-7.81mm | 7.81-7.81mm | 10.42-10.42 mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 |
| Module Size | 500mm*125mm | 500mm*125mm | 500mm*125mm |
| Pixel Density | 32768 pixels/m2 | 16384 pixels/m2 | 9216 pixels/m2 |
| Refresh rate | ≥1920HZ | ||
| Gray Level | 16 Bit | ||
| Brightness | ≥3000cd/m2 | ≥2000cd/m2 | ≥5000cd/m2 |
| Driving Method | 1/8 | 1/8 | 1/2 |
| Viewing Angle | H: 110° , V:110° | ||
| Cabinet Resolution | 256*64 Dots | 128*64 Dots | 96*96 Dots |
| Material | Die-casting | ||
| Cabinet Size | 1000mm*500 mm | 1000mm*500 mm | 1000mm*500 mm |
| Cabinet Weight | 7 Kg | 7 Kg | 7 Kg |
| IP Rating | IP43 | ||
| Avg.Power Consumption | 400W/Cabinet | 300W/Cabinet | 400W/Cabinet |
| Control System | LINSN & NOVASTAR | ||
| Operation System | Windows 98/me/2000 NT/XP/Win7 | ||
| Temperature-Operating | -20℃~60℃ | ||
| Humidity-Operating | 10% ~ 90% RH | ||
| Input Voltage | 110 ~ 220 VAC, 50~60HZ | ||
| Defect Rate | ≤0.0001 | ||
| MTBF/Life span | 35,000 Hrs/ 100,000 Hrs | ||
