Quick Details
-
Model Number:
-
KCD1-8-101NW-R
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Product type:
-
Rocker Switch
-
Function:
-
SPST ON OFF
-
Rating:
-
20A 12VDC
-
Lamp Volt:
-
12V
-
Shape:
-
Round Shape, Red Actuator
-
Insulated Resistance:
-
100mΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Operating temperature:
-
T85
-
Electrical life:
-
10000 Cycles
-
Terminal:
-
3 Pin
Quick Details
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIERTEK
-
Model Number:
-
KCD1-8-101NW-R
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Product type:
-
Rocker Switch
-
Function:
-
SPST ON OFF
-
Rating:
-
20A 12VDC
-
Lamp Volt:
-
12V
-
Shape:
-
Round Shape, Red Actuator
-
Insulated Resistance:
-
100mΩ Min
-
Contact Resistance:
-
50mΩ Max
-
Operating temperature:
-
T85
-
Electrical life:
-
10000 Cycles
-
Terminal:
-
3 Pin
PRODUCT DESCRIPTION
|
lItem
|
SPST ON OFF Rocker Switch 12V 24V 2 Way Round 3 Pins LED Illuminated Rocker Switch With Light For Car Auto Marine
|
|
Switch Function
|
SPST 3 PIN ON OFF
|
|
Rating
|
20A 12VDC
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 100mΩ
|
|
Shape
|
Round Shape, Red Actuator
|
|
Operating Temperature
|
T85
|
|
Electrical life
|
10000 CYCLES
|
|
Package
|
Only rocker switch (WITHOUT wire cable connector)
|
PRODUCT DETAILS
About KCD1-8-101NW-R Rokcer Switch

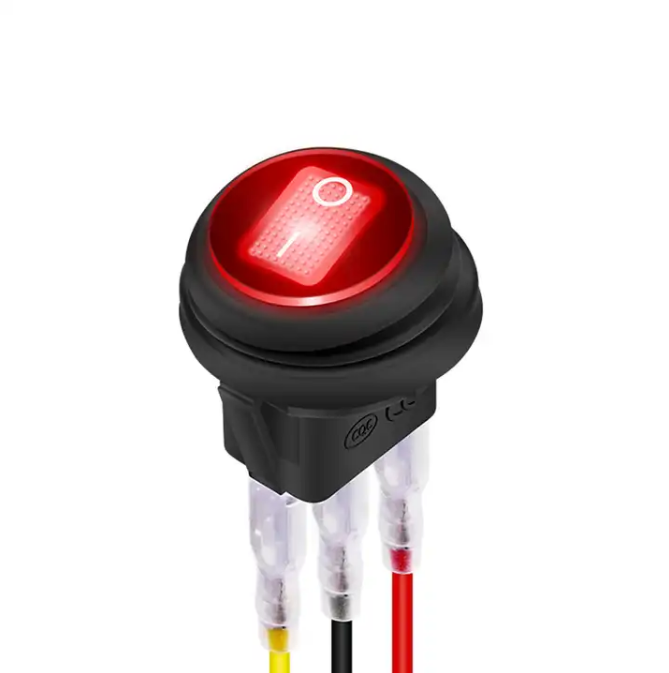

*【Red LED lighted Rocker Switch】- This Round Rocker Switch with 12VDC Red LED, The Switch LED will light up to indicate the operating status of the device when the switch is turned ON.
*【Waterproof Rocker Switch】- The Small switch with a rubber covered the switch actuator to against dust, Oil and Water, IP65 degree.
*【ON OFF Switch】- It's a SPST 3 Pin ON OFF Rocker Switch, Single Pole Single Throw design, with 20A 12V DC Switch Rating.
*【Installation】- The 12 Volt Rocker Switch fit for 20mm panel Cut-out size, Snap In flush mount version.
*【Application】- It's widely used as Automotive Replacement Toggle Switch, Fit for most Cars, RV, ATV, UTV, Truck, Marine, Boat and other electronic equipments.
ON OFF Rocker Switch
SPST 3 Pin ON/OFF Rocker Switch, Single Pole Single Throw design, with 20A 12V DC Switch Rating. The 12V Rocker Switch fit for 20mm panel Cut-out size, 10 Sets of Wires included.
12 Volt Rocker Switch
This Round Rocker Switch with 12VDC Red LED, Switch LED will light up to indicate the operating status of the device when the switch is turned ON.
Application
The 12 Volt Rocker Toggle Switch is widely used as Automotive Replacement Toggle Switch, Fit for most Cars, RV, ATV, UTV, Truck,
Marine, Boat, and other electronic equipment.
Marine, Boat, and other electronic equipment.
