Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUPSUN
-
Model Number:
-
PZ
-
Contact material:
-
Silver
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
application:
-
door bell doorbell
-
connection:
-
300mm 24 AWG wire
-
color:
-
black, red, blue, green, yellow
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUPSUN
-
Model Number:
-
PZ
-
Contact material:
-
Silver
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
application:
-
door bell doorbell
-
connection:
-
300mm 24 AWG wire
-
color:
-
black, red, blue, green, yellow

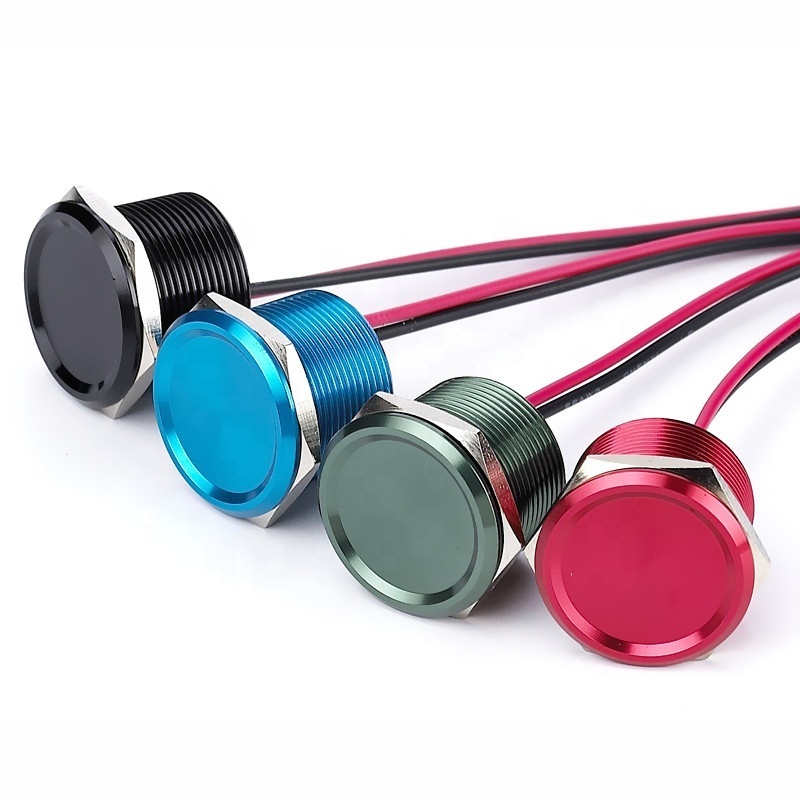

16mm/19mm/22mm flat head momentary waterproof IP68 aluminum Oxidation Piezo push button switch
our default color is black if you do not contact us in advance.
High quality LAY37 LAY090 660V push button switch protective cover
Feature
Should button structure design match nation and Europe total body CE safety attestation request, according to nations IEC947 and En6-0947 and CCC nation the GB14048.5-2001 produce examination.
Install a way adoption Luo mother fix type structure install,touch some switch to have half close The mold piece turn a design and surround half closing type structure,wooden blocks type install structure usage safety can Depend,Connect the line is clear at a glance,the structure’s design be skillful reasonable.Take to have quakeproof from rise bolt Carry son,connect line serew not loose move to shed off to install to make firm.
Overall dimension
Specification
|
Size |
16mm,19mm, 22mm |
|
Product |
Piezo switch |
|
Lamp voltage |
3-24vdc |
|
Working temperature |
-40-70 degree |
|
Storage temperature |
-40-70 degree |
|
Working humidity |
10-99% |
|
Input voltage |
3-24vdc |
|
Input current |
No more than 2A |
|
Contact resistance |
Less than 50 m ohm |
|
Pulse time |
Less than 50 MS |
|
Working pressure |
3-8N |
|
Protection grade |
IP68/IEC529 |
|
Operating life |
More than 500000 times |
|
Material |
Aluminum |
|
Wire connection type |
300mm long 24AWG |
