Quick Details
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LIANSHUN
-
Voltage:
-
CUSTOMIZED
-
Dimension(L*W*H):
-
23m*3m*4m
-
Power (kW):
-
55
-
Weight:
-
13 KG
-
Automatic Grade:
-
SIEMENS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing Type:
-
Extruding Machine
-
Pipe range:
-
16-630mm
-
Screw:
-
38CrMoALA
-
temperature control:
-
Omron
-
inverter:
-
ABB
-
Low voltage system:
-
Siemens or Schneider
-
location:
-
zhangjiagang
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
22:1
-
Screw diameter (mm):
-
65/132 mm
-
Screw Speed (rpm):
-
37 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LIANSHUN
-
Voltage:
-
CUSTOMIZED
-
Dimension(L*W*H):
-
23m*3m*4m
-
Power (kW):
-
55
-
Weight:
-
13 KG
-
Automatic Grade:
-
SIEMENS
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing Type:
-
Extruding Machine
-
Pipe range:
-
16-630mm
-
Screw:
-
38CrMoALA
-
temperature control:
-
Omron
-
inverter:
-
ABB
-
Low voltage system:
-
Siemens or Schneider
-
location:
-
zhangjiagang

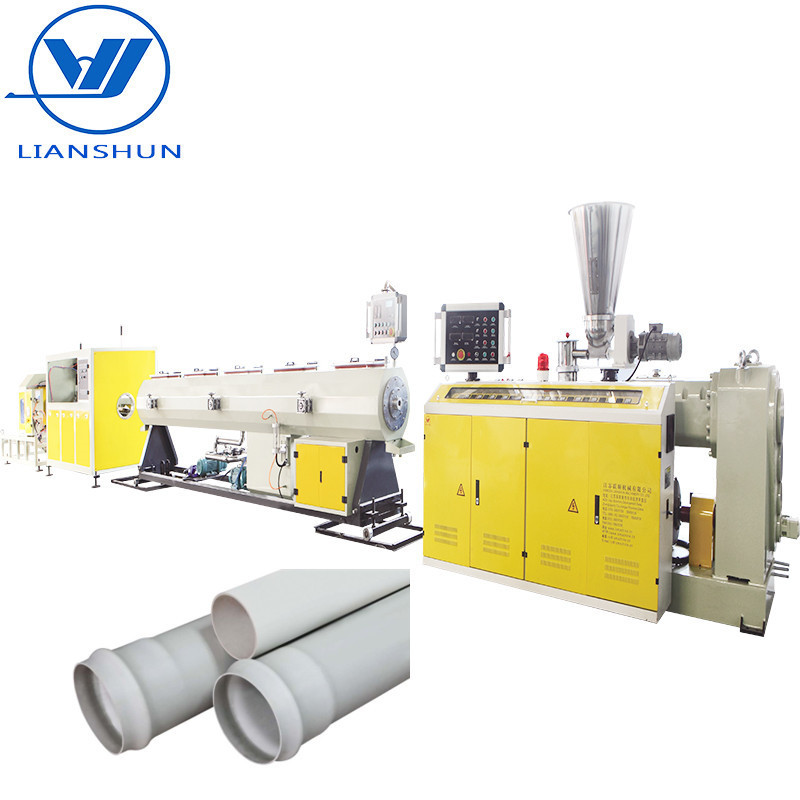

Professional LIANSHUN MACHINERY Plastic PVC Pipe production line
This PVC pipe production line is mainly used in manufacturing the pipe for water supply pipe and drainage pipe in the field of agricultrual and constructional plumbing, cable laying etc.This producion line is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off device, cutter and stacker, etc. The extruder and haul-off device adopt imported AC frequency control device, vacuum pmp and haul-off motors adopt high-quality brand. The haul-off device methods are two-claw, three-claw, four-claw, six-claw, etc. You may choose saw blade cutting type or planetary cutting type. It is additonally attached with the length couter and intensify device. The equipment is with the reliable performance and high production efficiency.
Main Technical Parameters:
|
Item |
Extruder |
Pipe diameter ( mm ) |
Motor power ( kw ) |
Capacity ( kg/h ) |
L/D |
|
PEG-63 |
SJ65 |
20-63 |
37 |
80-150 |
33: 1 |
|
PEG-110 |
SJ65 |
20-110 |
55 |
100-200 |
33: 1 |
|
PEG-160 |
SJ75 |
50-160 |
75 |
150-250 |
33: 1 |
|
PEG-250 |
SJ60 |
50-250 |
90 |
400-500 |
38 : 1 |
|
PEG-315 |
SJ90 |
110-315 |
160 |
280-400 |
33: 1 |
|
PEG-450 |
SJ75 |
200-450 |
160 |
600-800 |
38: 1 |
|
PEG-630 |
SJ90 |
315-630 |
250 |
800-1000 |
38: 1 |
|
PEG-800 |
SJ150 |
450-800 |
360 |
600-1300 |
33: 1 |
|
PEG-1000 |
SJ150 |
630-1000 |
380 |
800-1500 |
33: 1 |
|
PEG-1200 |
SJ120/SJ90 |
800-1200 |
450 |
900-1800 |
33: 1 |
|
MODEL |
PVCG-50 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
16-50 |
50-160 |
75- 250 |
90-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-6 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
100 |
120 |
150 |
200 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
