Quick Details
-
Brand Name:
-
Vanch
-
Read range:
-
0-6m
-
Interface:
-
RS232/RS485/WG/TCPIP/WIFI
-
RF Output:
-
20-30dBm
-
Size:
-
235*235*58mm
-
Weight:
-
1KG
-
Antenna Gain:
-
7 dBi
-
Shell:
-
ABS+PC
-
Product Name:
-
PR9200 Integrated RFID UHF Reader
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vanch
-
Read range:
-
0-6m
-
Interface:
-
RS232/RS485/WG/TCPIP/WIFI
-
RF Output:
-
20-30dBm
-
Size:
-
235*235*58mm
-
Weight:
-
1KG
-
Antenna Gain:
-
7 dBi
-
Shell:
-
ABS+PC
-

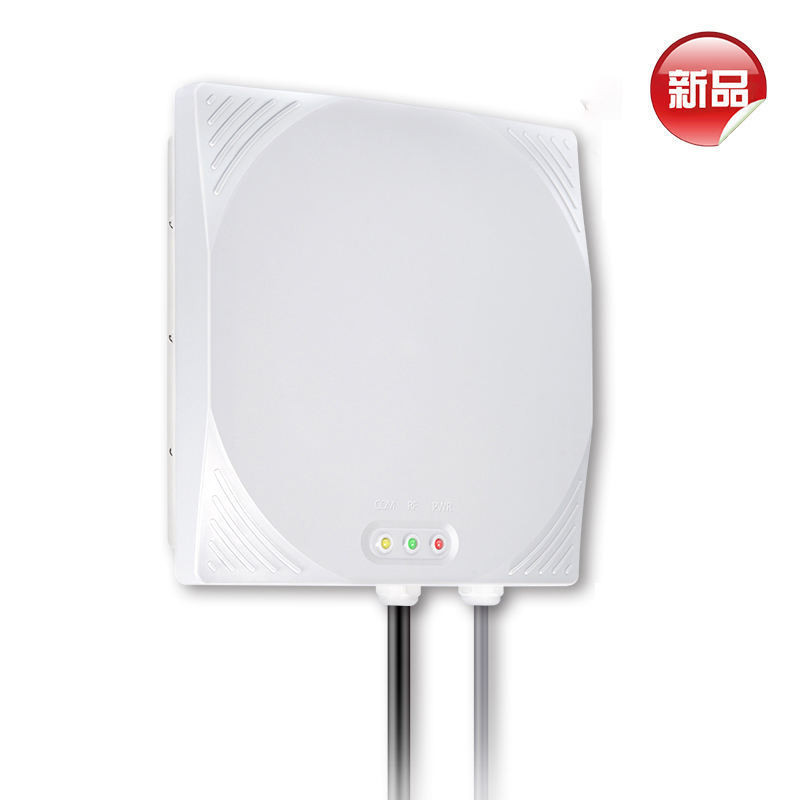

Product Name:
-
PR9200 Integrated RFID UHF Reader
Product Description
Specification
|
Model#
|
|
|
|
VI-83TS
|
High cost-effective all-in-one machine based on self-developed separation device RF circuit
|
|
|
UHF RFID parameter（VI-83TS）
|
|
|
|
RRF radio frequency
|
Based on VANCH's independent research and development technology
|
|
|
Frequency Range
|
902～928MHz or 865～868MHz (can be adjusted according to different countries or regions)
|
|
|
Built-in antenna
|
7dbi circularly polarized antenna
|
|
|
Air interface protocol
|
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
|
|
|
Output Power
|
30dBm (±1dBm) adjustable
|
|
|
Output power adjustment
|
1dBm step (set by VANCH software)
|
|
|
Reading distance
|
Reading distance 3~5 meters, writing distance >50cm (Test label: Impinj E41b)
|
|
|
Multi-tag reading speed
|
>50 sheets/second (peak value)
|
|
|
Regional support
|
U.S., Canada, and other regions that comply with U.S. FCC Part 15 regulations
Europe and other regions that comply with ETSI EN 302 308 China, India, Japan, South Korea, Malaysia, Taiwan |
|
|
Electric Parameter （VI-83TS）
|
|
|
|
CPU control chip
|
ARM（STM32F107 Cortex-M3）
|
|
|
Interface Type
|
(RJ45, RS485, RS232, Wiegand interface) standard configuration, and (wireless WIFI, Bluetooth) optional;
|
|
|
Bluetooth communication
|
Bluetooth 4.2 (optional)
|
|
|
WiFi
|
IEEE802.11b/g/n (optional)
|
|
|
Tips:
|
For more information, please consult online customer service, thank you
|
|
|
|
|||
Application and Cases
FAQ
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q : What is your payment term?
Q : What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
