Quick Details
-
Model Number:
-
LW26GS Pad-lock type rotary switches
-
Max. Current:
-
125A
-
Mechanical Life:
-
10,000,000times
-
supply:
-
600000pcs/month
-
Quality Assurance::
-
2 years
-
Color:
-
red
-
Have stock:
-
can be custmize
-
Service:
-
OEM/ODM
-
Type:
-
LW26GS 20A 4P rotary selector switch
-
Catagory:
-
automatic transfer switch
-
Weight:
-
0.20kg
-
Position:
-
Customized
-
Shape of panel board:
-
Tetragonum / Round automatic transfer switch
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU Pad-lock type rotary switches
-
Model Number:
-
LW26GS Pad-lock type rotary switches
-
Max. Current:
-
125A
-
Mechanical Life:
-
10,000,000times
-
supply:
-
600000pcs/month
-
Quality Assurance::
-
2 years
-
Color:
-
red
-
Have stock:
-
can be custmize
-
Service:
-
OEM/ODM
-
Type:
-
LW26GS 20A 4P rotary selector switch
-
Catagory:
-
automatic transfer switch
-
Weight:
-
0.20kg
-
Position:
-
Customized
-
Shape of panel board:
-
Tetragonum / Round automatic transfer switch
-
Certification:
-
ce
Our Company
Building
Details Images
Introduction

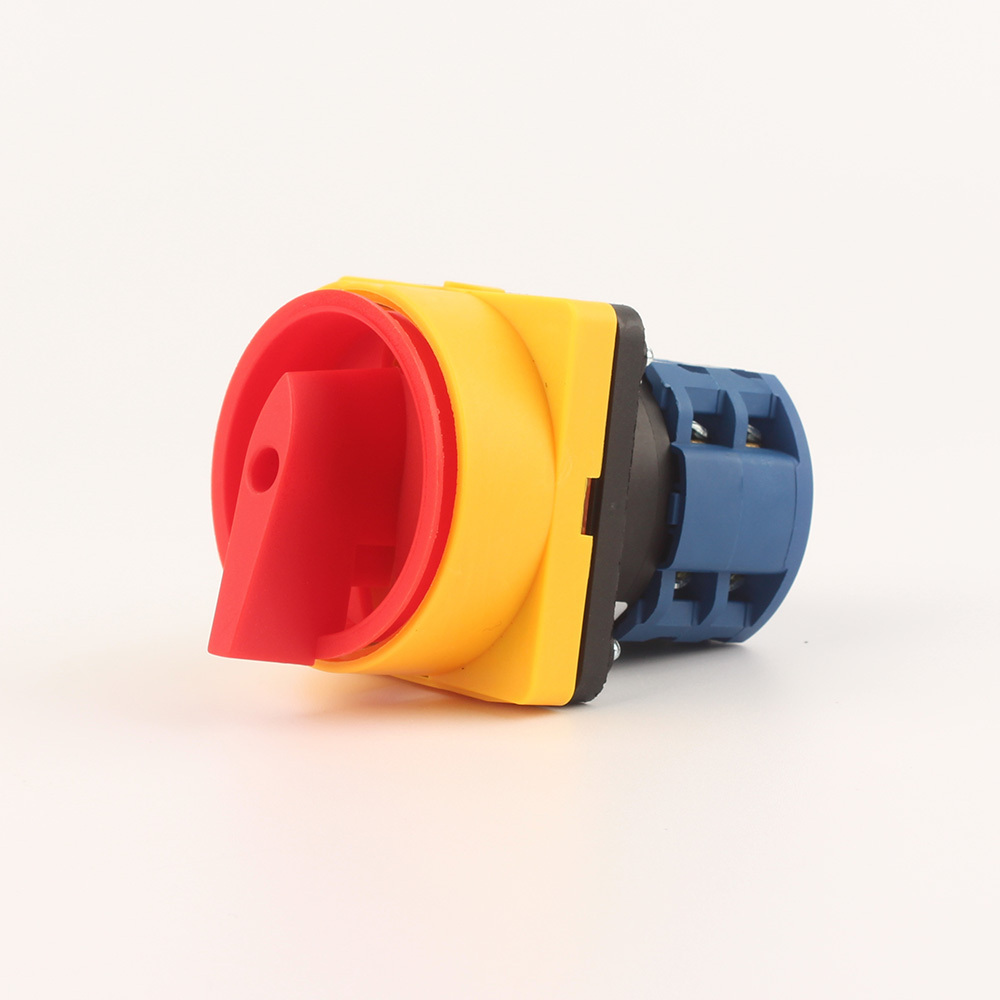

LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches.Installed in equipment where it requires a
pad-lock to lock the switch in certain position.For instance,to fix the switch in ON position,to prevent the unauthorized
personnel from operating the swith.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.
LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches.Installed in equipment where it requires a
pad-lock to lock the switch in certain position.For instance,to fix the switch in ON position,to prevent the unauthorized
personnel from operating the swith.
LW26GS series Pad-lock type switch complies with the GB 14048.3 and IEC 60947.3.
Product Description
Specification
Mechanical life
Mechanical life without load:0.3×106times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-13 to 0.01×104times operation frequency is 300 times/h.
AC-3 to 0.1×104times operation frequency is 120 times/h.
AC-4 to 0.1×104times operation frequency is 120 times/h.
Mechanical life without load:0.3×106times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-13 to 0.01×104times operation frequency is 300 times/h.
AC-3 to 0.1×104times operation frequency is 120 times/h.
AC-4 to 0.1×104times operation frequency is 120 times/h.
