Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern/Simple/High-end
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Shanghai China
-
Brand Name:
-
Aludream
-
Model Number:
-
Please consult support staff
-
Product name:
-
ACP PVDF Aluminum Composite Panel 2mm~12mm ACM Sheet
-
Raw material:
-
Aluminum plastic
-
Color:
-
Customized
-
Coating:
-
PE PVDF NANO
-
MOQ:
-
200m2
-
Panel thickness:
-
2-12mm
-
Aluminum Thickness:
-
0.05-0.50mm
-
Width:
-
Max 2000mm
Quick Details
-
Warranty:
-
More than 5 years
-
Size:
-
As your require, 1220x2440mm or 1500x3000mm or custom
-
Project Solution Capability:
-
Others
-
Application:
-
Apartment
-
Design Style:
-
Modern/Simple/High-end
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Shanghai China
-
Brand Name:
-
Aludream
-
Model Number:
-
Please consult support staff
-
Product name:
-
ACP PVDF Aluminum Composite Panel 2mm~12mm ACM Sheet
-
Raw material:
-
Aluminum plastic
-
Color:
-
Customized
-
Coating:
-
PE PVDF NANO
-
MOQ:
-
200m2
-
Panel thickness:
-
2-12mm
-
Aluminum Thickness:
-
0.05-0.50mm
-
Width:
-
Max 2000mm
Product Description

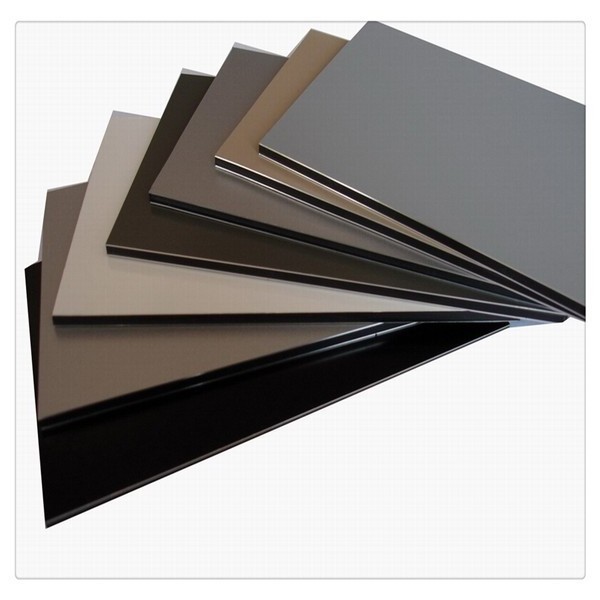

Aludream Aluminum Composite Panel Description
Aludream Aluminum composite panel is composed of non-toxic and low density polyethylene core between two sheets of aluminum by using composite production line.The surface is coated with either fluorocarbon resin (KYNAR 500) or PE resin. Panel is produced with various core thicknesses in a continuous lamination process.
|
SPECIFICATIONS
|
|
|
|
Aluminum Thickness
|
0.03-0.50 mm
|
|
|
Max Width
|
2000 mm
|
|
|
Max Length
|
11500mm
|
|
|
Core
|
11500mm
|
|
|
Paint Finish
|
PE, PVDF, FEVE
|
|
|
Data Sheet
|
|
|
|
|
|
|||||
|
Thickness [mm]
|
2
|
3
|
4
|
5
|
6
|
|||||
|
Aluminum Skin [mm]
|
0.21
|
|
0.50
|
|
|
|||||
|
Weight[Kg/m
2
]
|
2.70
|
3.70
|
5.71
|
6.71
|
7.71
|
|||||
|
Section Modulus W [cm
3
/m]
|
0.91
|
1.25
|
1.75
|
2.10
|
2.75
|
|||||
|
Rigidity EJ [kNcm
2
/m]
|
880
|
1250
|
2400
|
3250
|
5900
|
|||||
|
Width [mm]
|
1220 / 1250 / 1500 / 2000
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Technical Properties
|
|
|
|
|
|
|||||
|
Alloy
|
|
|
A1100/A3003
|
|
|
|||||
|
Modulus of Elasticity
|
|
|
7,000 kg / mm
2
|
|
|
|||||
|
Tensile Strength of Cover Sheets[N/mm
2
]
|
|
|
Rm >= 130
|
|
|
|||||
|
Proof Stress [N/mm
2
]
|
|
|
Rp0.2 >= 90
|
|
|
|||||
|
Elongation
|
|
|
A50 >= 5%
|
|
|
|||||
|
Linear Expansion
|
|
|
2.4mm/m at 100
0
C Temperature
|
|
|
|||||
|
Yield Strength
|
|
|
15.5 kg / mm
2
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Test Value
|
|
|
|
|
|
|||||
|
Bending Strength
|
|
|
119 Mpa
|
|
|
|||||
|
Bending Modulus of Elasticity
|
|
|
3.48 x 10
4
|
|
|
|||||
|
Penetrating Resistance
|
|
|
9.9 KN
|
|
|
|||||
|
Shearing Strength
|
|
|
32.8 Mpa
|
|
|
|||||
|
180
0
Peel Strength
|
|
|
11.4 N / mm
|
|
|
|||||
|
Thermal Expansion Cofficient
|
|
|
1.6 x 10
-5
|
|
|
|||||
|
Temperature of Thermal
|
|
|
112
0
C
|
|
|
|||||
|
Temperature Resistance
|
|
|
-40
0
C to +80
0
C
|
|
|
|||||
Color Chart
