- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
iStartek
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
mini router 4g wifi dongle with sim card slot
-
Size:
-
98mm * 28mm* 10mm
-
The antenna:
-
built-in
-
Weight:
-
32.6g
-
Power Voltage:
-
9V/12 V 1.0A-2.0A
-
Wireless communication Speed:
-
upload speed:150Mbps, upload speed:50Mbps (Category 4)
-
Number of WiFi access:
-
Up to 8 WiFi connections
-
Working humidity:
-
5% - 65%
-
Working temperature:
-
-10°C to 60°C
-
Warranty:
-
12 Months
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
iStartek
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
mini router 4g wifi dongle with sim card slot
-
Size:
-
98mm * 28mm* 10mm
-
The antenna:
-
built-in
-
Weight:
-
32.6g
-
Power Voltage:
-
9V/12 V 1.0A-2.0A
-
Wireless communication Speed:
-
upload speed:150Mbps, upload speed:50Mbps (Category 4)
-
Number of WiFi access:
-
Up to 8 WiFi connections
-
Working humidity:
-
5% - 65%
-
Working temperature:
-
-10°C to 60°C
-
Warranty:
-
12 Months

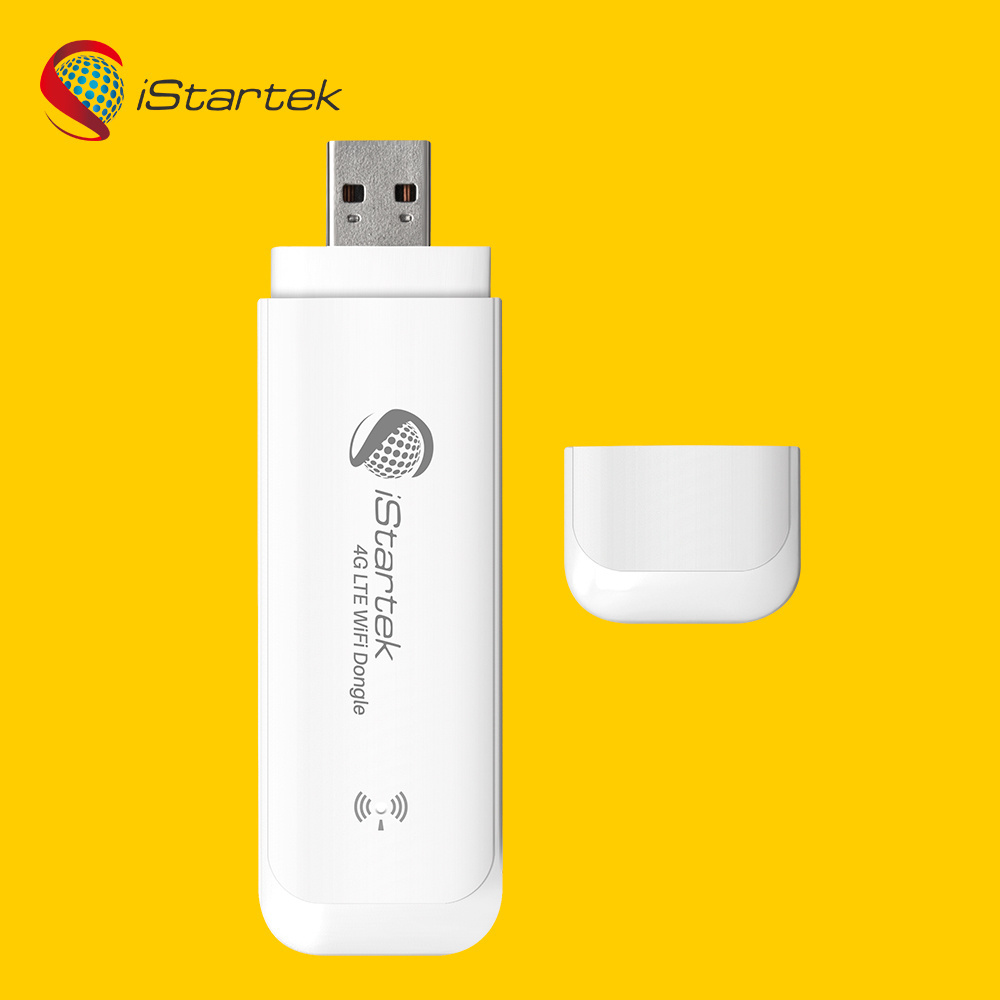

150M High speed Internet USB Charging mini router 4g wifi dongle with sim card slot
Click us to Send Inquiry: Cheapest Wireless Routers From Factory
|
Mini Compact Portable UFI Plug and Play, support various types of rechargeable devices |
|
Power Supply by Computer Can be charged from the computer through the usb interface |
|||
|
USB Charging By Adapter/Power Bank USB2.0 Common interface support for desktops, notebooks |
No Need to Install Driver Just connect directly to the laptop's USB port to transmit data |
||||
|
150M High-speed Internet It can support LTE Cat4 with up to 150Mbit/s for downlink and 50Mbit/s for uplink |
Support 8 Connections It could broadcast a Wi-Fi signal and allow you to securely connect up to 8 devices a same time |
|||||
|
Support WPA/WPA2 WIFI Encryption WiFi routers support a variety of security protocols to secure wireless networks |
Diversity Antenna
Inbuilt diversity antenna to catch more faster and stable signal |
|||||
|
Quite Low Price
Quite low price By strong supply chain |
Management Page Rich software management settings |
What Benefits You Can Get from Choosing Our Products?
1.
Sell UFI device hardware and Sim Cards at the same time, with traffic recharge profit.
2. Have CE, FCC, ISO9001 quality certificate with 100% strict quality control to reduce after-sales cost.
3.
Meet
most
main market requirement.
4. OEM and ODM service available for projects.
Basic Specifications
|
Size |
98mm * 28mm* 10mm |
|
WLAN |
IEEE 802.11 b/g/n/, 2.4GHz, Up to 8 WIFI connections |
|
USIM |
1 * 1.8V/3V USIM 3FF physical card Built-in 5mm*6mm e-SIM card, maximum 2 |
|
LED Indicator |
Network indicator*2, Wi-Fi indicator*1 |
|
USB Port |
TYPE A USB |
|
Power Supply |
5V/1A |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
|
Humidity |
5% ~ 95% |
4G / 3G / 2G Technical Specifications
|
Access Standard |
TD-LTE/FDD/TDD/WCDMA |
|
Protocol Standard |
LTE FDD/TDD Rel 9 CAT4 |
|
Bands |
UF200 FDD: B1/B3/B5/B8/ TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8
UF200 E LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 WCDMA: B1/B8
UF200 A LTE: B2/B4/B5/B7/B8/B28A/B28B WCDMA: B2/B4/B5/B8
More 4G bands customizable |
|
Speed |
LTE FDD: Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD: Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA: Max 21Mbps(D)/ Max 5.76Mbps(UL); |
|
Receive Sensitivity |
Refer to 3GPP protocol |
|
Maximum Transmit Power |
LTE FDD: 23dBm±2dB; LTE TDD: 23dBm±2dB; WCDMA: 24dBm+1dB/-3dB; |
|
Antenna |
Inbuilt antenna |
WiFi Parameter
|
Protocol standard |
IEEE 802.11b/g/n |
|
Bandwidth |
20MHz,40MHz |
|
Frequency |
2.4G |
|
Speed |
802.11b:11Mbps 802.11g:54Mbps 802.11n:150Mbps |
|
Receive Sensitivity |
-82dBm in 802.11b -72dBm in 802.11g -66dBm in 802.11n |
|
Maximum Transmit Power |
15dBm in 802.11b 13dBm in 802.11g 12dBm in 802.11n |
|
Antenna |
Inbuilt antenna |
|
Number of WiFi access |
Up to 8 WiFi connections |
Q: I already have a mobile phone to share hotspot, why should I buy the UF200 portable WiFi dongle?
A : 1. UF200 4G WiFi Dongle will help you to save your Phone battery, unlike sharing hostpot by mobile phone which will drain your battery very faster.
2. UF200 4G Pocket Router will help you save money by only using data , no need to add credit for Voice and SMS cost like on Mobile Phone.
Q: Do you provide customer LOGO?
A : Yes, we can provide customer LOGO on firmware and hardware.
Q: Do you accept PCBA orders only?
A : Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Q: Do you provide firmware support?
A : Sure thing, unlike other companies which are buying solutions from the design company, we have our own firmware development team to support you in 100%.
Q: Do you....?
A : Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
