Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
3/4/5
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
300x200x100mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
30
-
MODEL:
-
PVC-3020F
-
Interface:
-
USB Port
-
Spindle Motor:
-
500W
-
Max. working stroke:
-
XYZ=300*200*100mm
-
Acceptable material thickness:
-
≤100mm
-
Rack material:
-
15mm PVC + corner brace connection
-
Table material:
-
Aluminum alloy T table + Water tank
-
Stepper motor and drive:
-
57HS56
-
Repeat positioning Accuracy:
-
0.02mm
-
System requirements:
-
Win-XP / Win 7 Win 8 Win10
Quick Details
-
Working Table Size(mm):
-
300*200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
3/4/5
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
300x200x100mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
30
-
MODEL:
-
PVC-3020F
-
Interface:
-
USB Port
-
Spindle Motor:
-
500W
-
Max. working stroke:
-
XYZ=300*200*100mm
-
Acceptable material thickness:
-
≤100mm
-
Rack material:
-
15mm PVC + corner brace connection
-
Table material:
-
Aluminum alloy T table + Water tank
-
Stepper motor and drive:
-
57HS56
-
Repeat positioning Accuracy:
-
0.02mm
-
System requirements:
-
Win-XP / Win 7 Win 8 Win10
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts , stepping motor , spindle Free Warranty
Model and Technical Parameters
|
MODEL |
PVC-3020F |
|||
|
Attribute |
3axis |
4axis |
5axis |
|
|
Axis |
3axis |
4axis |
4axis |
|
|
Interface |
USB Port |
USB Port |
USB Port |
|
|
Spindle Motor: |
500W |
500W |
500W |
|
|
Weigh |
27 |
31 |
33 |
|
|
Max. working stroke |
XYZ=300*200*100mm |
|||
|
Acceptable material thickness |
≤ 100mm |
|||
|
15mm PVC + corner brace connection |
||||
|
Table material: |
Aluminum alloy T table + Water tank |
|||
|
Rail type |
X Y Z 1204 ball screw, Square line rail track , three-axis is 20 mm square wire track, |
|||
|
Spindle motor |
500W DC spindle , 0-12000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
27kg |
|||
|
4th Axis Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|

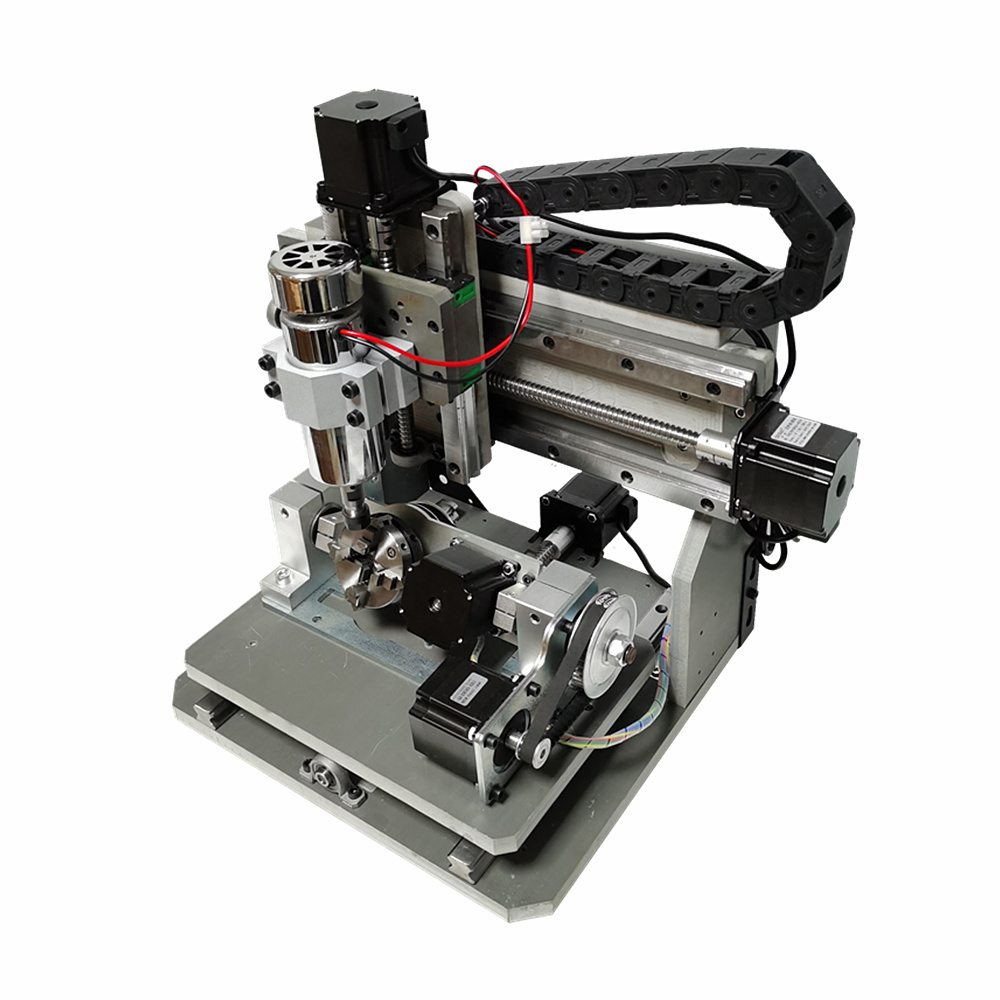

5th Axis Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
C. 25-30 workdays shipping from China to Russian customers.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
