Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6230*2365*3752mm
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
0.9CBM
-
Product name:
-
XGMA Telescopic Long Arm Loader with Backhoe Excavator XG765E
-
Color:
-
Yellow
-
Quality:
-
High quality
-
Usage:
-
Construction
-
Transmission:
-
Hydraulic - Mechanical
-
Load and Unload Mode:
-
Front Discharge
-
Walking Mode:
-
Wheeled
-
Transport Package:
-
Container Roro Bulk Break Shipment
-
HS Code:
-
8429510000
Quick Details
-
Engine Brand:
-
Imported engine
-
Power:
-
75 KW
-
Brand Name:
-
Imported engine
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6230*2365*3752mm
-
Machine Weight:
-
7400 kg
-
Bucket capacity:
-
0.9CBM
-
Product name:
-
XGMA Telescopic Long Arm Loader with Backhoe Excavator XG765E
-
Color:
-
Yellow
-
Quality:
-
High quality
-
Usage:
-
Construction
-
Transmission:
-
Hydraulic - Mechanical
-
Load and Unload Mode:
-
Front Discharge
-
Walking Mode:
-
Wheeled
-
Transport Package:
-
Container Roro Bulk Break Shipment
-
HS Code:
-
8429510000
1.Feature:
1.Small turning radius, flexible steering, quick response.
2.The easy-to-control digging arm locking mechanism and the special design that the digging device is placed over center point makes the machine more safer to transport and more balanced to drive.
3.The large colored glass, small cabin noise, independent heat & A/C system and large cabin space brings the driver much comfort.
4.The special optional working device like breaking hammer can make the machine multi-functional.
5.The four-gear synchronized electro-hydraulic gear shifting transmission box which is specially designed for backhoe loader can quickly shift the gear according to condition of road surface.
6.The hydraulic multi-disc wet type brake is safe and reliable with long service life.
2.Parameter :
| Description | Unit | XG765E | ||
| Engine | Brand | Pkins | ||
| Model | 1104C-44T | |||
| Type | Four-stroke cycle, water-cooling, in line arrangement, direct-injection | |||
| Rated power | kW | 74.5 | ||
| Rated speed | rpm | 2200 | ||
| Max. torque | N.m | 392 | ||
| Fuel consumption per hour | g/kW.h | ≤235 | ||
| Performance | Rated load | kg | 1800 | |
| Bucket capacity | m3 | 0.9 | ||
| Operating weight | t | 7.4 | ||
| Dump clearance at full lift | mm | 2680 | ||
| Dumping reach | mm | 620 | ||
| Discharge angle | ° | 45 | ||
| Max. breakout force | KN | 42 | ||
| Lifting time of lift arm | s | 4 | ||
| Total cycle time | s | 8.2 | ||
| Min. turning radius (in carry position) | mm | 3250 | ||
| Overall dimensions(L×W×H) | mm | 7095*2085*3500 | ||
| Travel Speed | Forward | I | km/h | 0-5.8 |
| II | km/h | 0-10.5 | ||
| III | km/h | 0-20 | ||
| IV | km/h | 0-40 | ||
| Reverse | I | km/h | 0-7 | |
| II | km/h | 0-12.5 | ||
| III | km/h | 0-24 | ||
| IV | km/h | 0-47 | ||

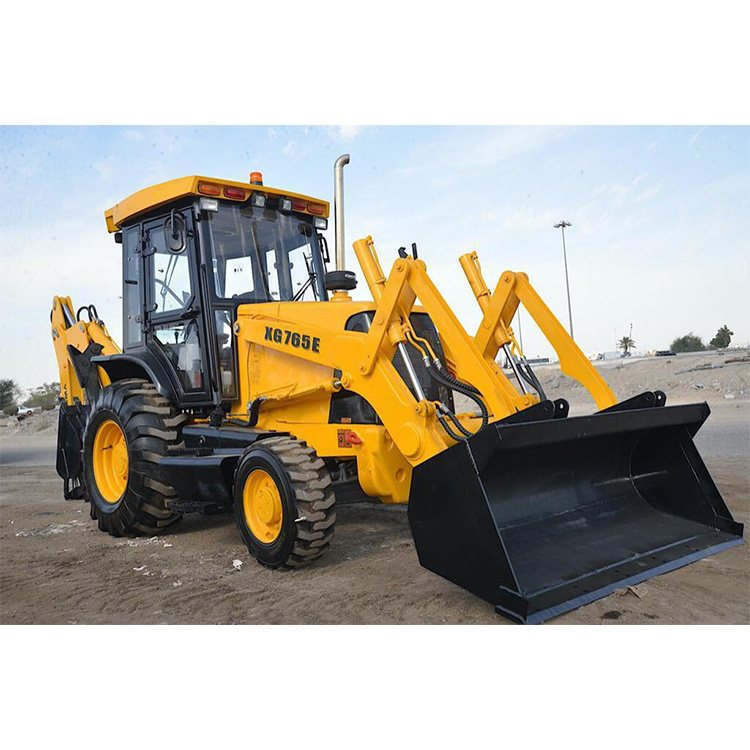

3.Photo :
