Scope of application
|

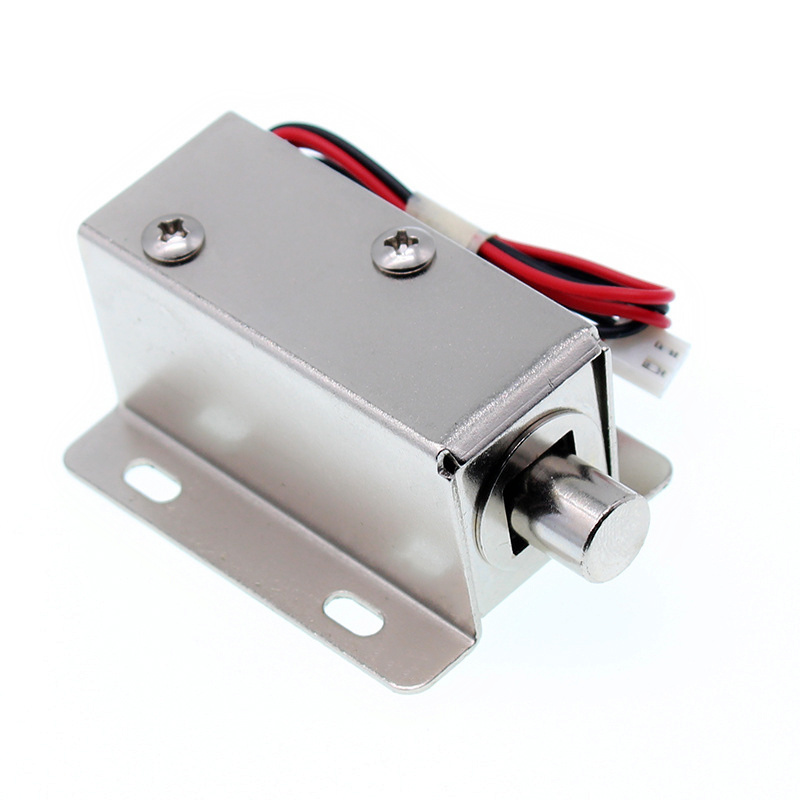

Small Cabinet
|
|
|
|
Standard test condition
|
Ambience
|
Ambience temperature: 20±2℃
|
|
|
|
|
Relative humidity: 65RH±5%
|
|
|
|
|
Atmospheric pressure: 1013mbr
|
|
|
|
Power supply
|
Stabilized power source
|
|
|
|
Load
|
Counter weight
|
|
|
Test mode
|
Attraction force
|
Plunger to be vertical and load down
|
|
|
|
Residual magnetism
|
Plunger to be vertical and load down
|
|
|
|
Holding force
|
plunger to be vertical and load down
|
|
|
Appearance
|
Dimension
|
54*42*28cm
|
|
|
Rated parameter
|
Voltage
|
DC12V
|
|
|
|
Current
|
0.83A(at DC12V 20℃)
|
|
|
|
Wattage
|
10W
|
|
|
|
DC Resistance
|
14Ω±10% at 20℃
|
|
|
|
Duty cycle
|
Electrify 50%
|
|
|
|
Insulation class
|
A class
|
|
|
Electronic characteristics
|
Force
|
Stroke 10mm ≥2.5N (incipient value)
|
|
|
|
|
|
|
|
|
Residual magnetism
|
after DC12V applied shall be return at weight of
Iron rod 20gf (perpendicular direction) |
|
|
|
Insulation resistance
|
between coil and frame DC500V narmal temperature /
humidity,100MΩ megger |
|
|
|
Withstand voltage
|
between coil and frame AC500V(50/60Hz)1Min or AC1200V (50/60Hz)1Sec
|
|
|
|
Temperature rise
|
after DC12V applied by resistance method 60 deg Max
|
|
|
|
Life
|
Repetitious operation for 0.5 million cycle (continuous at DC12V)
|
|
|
|
Lead-wire strength
|
adding 0.5kgf (random direction) not chip off
|
|
|
|
Operation temperature / humidity
|
-5 to +55 Centigrade 5%RH -- 85%RH
|
|
