Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GiantLin
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3650*2450*2950mm
-
Warranty:
-
12 Months
-
Weight (KG):
-
4500 kg
-
Product Name:
-
Automatic Cement Interlocking Paver Brick Production Line
-
Weight:
-
4500-15000KG
-
Pallet size:
-
960*550mm
-
Molding cycle:
-
15s
-
Color:
-
Optional
-
Block Type:
-
Hollow & solid block, paving brick, curbstone
-
Advantage:
-
Automatic hydraulic block production line
-
Packing:
-
Nude in 40HQ container
-
Raw material:
-
Q235 steel
-
Investment about:
-
Big amount investment
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
7680 Pcs/8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GiantLin
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3650*2450*2950mm
-
Warranty:
-
12 Months
-
Weight (KG):
-
4500 kg
-
Product Name:
-
Automatic Cement Interlocking Paver Brick Production Line
-
Weight:
-
4500-15000KG
-
Pallet size:
-
960*550mm
-
Molding cycle:
-
15s
-
Color:
-
Optional
-
Block Type:
-
Hollow & solid block, paving brick, curbstone
-
Advantage:
-
Automatic hydraulic block production line
-
Packing:
-
Nude in 40HQ container
-
Raw material:
-
Q235 steel
-
Investment about:
-
Big amount investment

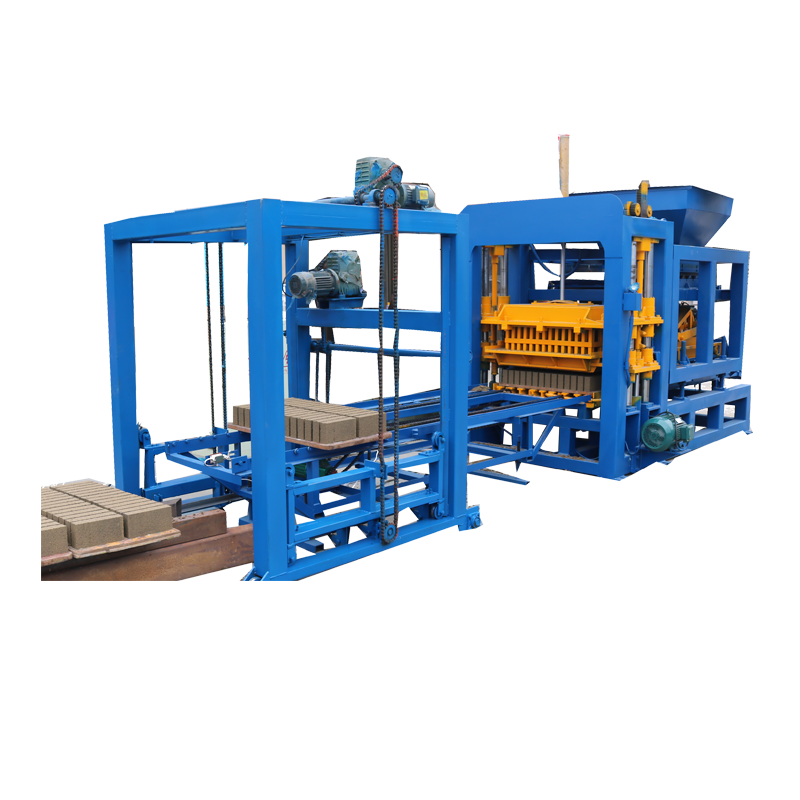

Automatic Cement Interlocking Paver Brick Production Line
1. QT4-15 automatic hydraulic hollow block production line machine production flow:
a. Raw material (1): use wheelloader (2) delivery into batching machine (5), need 1 worker
b. Cement delivery into mixer (6), from cement silo (3) by cement screw conveyor (4)
c. Mixer (6) ixing material, then delivery to brick machine (9) by conveyor (7); here need 1 worker
d. After produce blocks, block receiver (10), delivery blocks to stacker (11)
e. Forklift (12) delivery blocks to curing area (13), need 1 worker
f. Curing area (13): Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers
g. After curing, take blocks out from pallet, pallet delivery to Pallet feeding machine (8) by forklift (12)
Blocks laying in block stock area
h. Sell blocks: Sell blocks and management; 1 worker
Total need about 5-6 workers in QT4-15 automatic interlocking block machine factory.
2. GiantLin QT4-15 hydraulic cement hollow block production plant introduction:
| Item | Name | Detail | Technical Info |
|---|---|---|---|
| A |
QT4-15 Brick machine |
Host machine (Power: 27.7kw) 1. Pallet feeding system 2. Material feeding system 3. 8" hollow block mold |
1. Production capacity: 7680Pcs/8h 2. Fully automatic, hydraulic system, big capacity 3. 15s produce one pallet blocks 4. Rated pressure: 21mpa 5. Full automatic, automatic, interligent,save labor 6. Multi function: Hollow, solid block, paver, houdi |
| B. Hydraulic station | |||
| C. PLC controller | |||
| Spart parts & Trolley | |||
| D | Conveyor | 8m; 1.5kw | Load weight/meter: 100kgs/m |
| E | Mixer | JS500; 25.1kw/h | Production capacity: 23-28cbm/h |
| F | Batching machine | PLD800; 2 hoppers; 9kw | Weight raw material weight ratio automatically |
| G | Block receiver | 3m; 2kw | Delivery blocks from block machine to stacker |
| H | Stacker | Laying blocks; 3kw | Laying 4-5 pallets per time |
| M | Color system | Color feeding machine (M); 0.75kw | Hydraulic control, automatic |
| Conveyor; 0.75kw; 3m | Delivery color to color feeding machine | ||
| Color mixer; 7.5kw | Diameter:1.2m | ||
| Total: QT4-15 block production line total power: 618.4 kw/8h; total need 5-6 workers in factory | |||
3 . Concrete blocks and paving bricks design and production capacity:
QT4-15 concrete block production line production capacity show:
| Item | Block | Production capacity | Photo |
| 1 |
Hollow/Solid block 400-200-200mm |
4 pcs/mold
7680 pcs/8h |
|
| 2 |
Hollow/Solid block 400-150-200mm |
5
pcs/mold
9600 pcs/8h |
|
| 3 |
Hollow/Solid block 400-100-200mm |
7
pcs/mold
13440 pcs/8h |
|
| 4 |
Houdi block 450-120-200mm |
5
pcs/mold
9600 pcs/8h |
|
| 5 |
S shape paver 225-112.5-60mm |
12 pcs/mold
23040 pcs/8h |
|
| 6 |
I shape paver 200-160-60mm |
10 pcs/mold
19200 pcs/8h |
|
| 7 |
Holland paver 200-100-60mm |
14 pcs/mold
26880 pcs/8h |
4. Customers visit factory, check hollow block machines photos:
5. GiantLin concrete hollow block machine load container:
6. How to find your suitable block mahcine,please click here:
