* 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
* AC power supply
* Forwarding performance: 96 Mpps
* Switching capacity: 128 Gbps/336 Gbps
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
S5735-L
-
Place of Origin:
-
Guangdong, China
-
Input power:
-
AC 600W:8A DC 1000W:30A
-
Dimensions (length*width*height) (mm):
-
43.6 mm x 442.0 mm x 420.0 mm
-
Chassis height(U):
-
1U
-
Storage temperature:
-
-40°C to +70°C (-40°F to +158°F)
-
Operating altitude:
-
0-5000 m (0-16404 ft.)
-
Noise:
-
< 65 dB(A)
-
Fans:
-
4, Fan modules are pluggable
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
HW
-
Model Number:
-
S5735-L
-
Place of Origin:
-
Guangdong, China
-
Input power:
-
AC 600W:8A DC 1000W:30A
-
Dimensions (length*width*height) (mm):
-
43.6 mm x 442.0 mm x 420.0 mm
-
Chassis height(U):
-
1U
-
Storage temperature:
-
-40°C to +70°C (-40°F to +158°F)
-
Operating altitude:
-
0-5000 m (0-16404 ft.)
-
Noise:
-
< 65 dB(A)
-
Fans:
-
4, Fan modules are pluggable

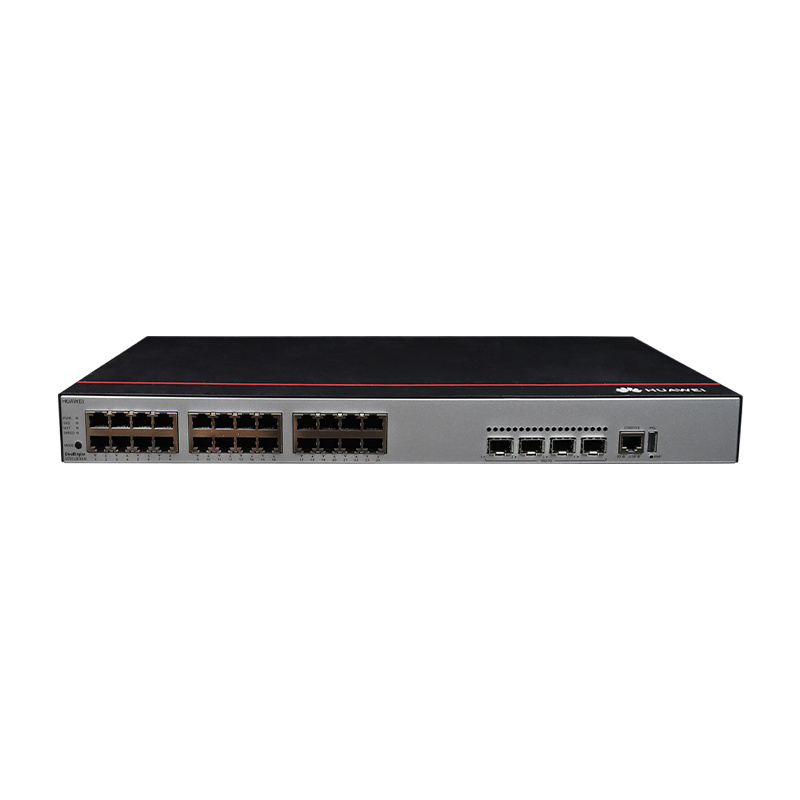

CloudEngine S5735-L Series Switches
Designed for enterprise campus network access and gigabit to the desktop, CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
Built on next generation, high-performance hardware and powered by Versatile Routing Platform (VRP), the switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Built on next generation, high-performance hardware and powered by Versatile Routing Platform (VRP), the switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
* 48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports
* AC power supply
* PoE+
* Forwarding performance: 132 Mpps
* Switching capacity: 176 Gbps/432 Gbps
* AC power supply
* PoE+
* Forwarding performance: 132 Mpps
* Switching capacity: 176 Gbps/432 Gbps
Silent Energy-Saving Design
Multiple energy-saving technologies, such as port dormancy, automatic port power adjustment, and fanless options achieve gigabit to the desktop in an energy-efficient way.
Simplified Network O&M
Super Virtual Fabric (SVF), with plug-and-play capabilities, virtualizes the core/aggregation switch, access switch, and Access Point (AP) into a single logical device for simplified network Operations and Maintenance (O&M).
Diversified Security Control
802.1X, Media Access Control (MAC) address, and Portal authentications, dynamically deliver user policies — Virtual Local Area Network (VLAN), Quality of Service (QoS), and Access Control List (ACL) — and also provide comprehensive mechanisms to fend off Denial of Service (DoS) and user-targeted attacks.
|
Item
|
CloudEngine
S5735-L24T4S-A1 |
CloudEngine
S5735-L24P4S- A1 |
CloudEngine
S5735-L24T4X- A1 |
CloudEngine
S5735-L24P4X- A1 |
|
Fixed port
|
24 x
10/100/1000Base-T ports, 4 x GE SFP ports |
24 x
10/100/1000Base- T ports(PoE+), 4 x GE SFP ports |
24 x
10/100/1000Base- T ports, 4 x 10 GE SFP+ ports |
24 x
10/100/1000Base- T ports(PoE+), 4 x 10 GE SFP+ ports |
|
Dimensions (H x W x D)
|
43.6 mm x 442 mm x 220 mm
|
43.6 mm x 442
mm x 220 mm |
43.6 mm x 442 mm x 220 mm
|
43.6 mm x 442
mm x 220 mm |
|
Chassis height
|
1 U
|
1 U
|
1 U
|
1 U
|
|
Chassis
weight (including packaging) |
3.34 kg
|
3.91 kg
|
3.48 kg
|
3.93 kg
|
|
Power supply type
|
Built-in AC power
|
Built-in AC power
|
Built-in AC power
|
Built-in AC power
|
|
Rated voltage range
|
100 V AC to 240 V AC, 50/60 Hz
|
100 V AC to 240 V AC, 50/60 Hz
|
100 V AC to 240 V AC, 50/60 Hz
|
100 V AC to 240 V AC, 50/60 Hz
|
|
Maximum
voltage range |
AC input: 90 V AC to 264 V AC, 45 Hz to 65 Hz
|
AC input: 90 V AC to 290 V
AC, 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high- voltage DC certification) |
AC input: 90 V AC to 290 V
AC, 45 Hz to 65 Hz |
AC input: 90 V AC to 290 V
AC, 45 Hz to 65 Hz High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high- voltage DC certification) |
|
Maximum
power consumption |
47.6 W
|
53.2W(without PD)
433.2W(with PD,PD Power consumption of :380W） |
45.6 W
|
53.8W(without PD)
433.8W(with PD,PD Power consumption of :380W） |
|
Noise
|
39dB (A)
|
50dB (A)
|
39dB (A)
|
50dB (A)
|
|
Long-term
operating temperature |
0-1800 m
altitude: -5°C to +50°C |
0-1800 m
altitude: -5°C to +50°C |
0-1800 m
altitude: -5°C to +50°C |
0-1800 m
altitude: -5°C to +50°C |
