Quick Details
-
Application:
-
Outdoor duct and conduit
-
Product name:
-
Outdoor Optic Fiber Cable
-
Color:
-
Black
-
Certification:
-
CE/ROHS/ISO9001
-
Jacket:
-
PE Jacket
-
Length:
-
Custom Length
-
Cable Structure:
-
Multi-Loose Tube
-
Fiber options:
-
ITU G652D ,G657A,OM1,OM2,OM3,OM4
-
Strength member:
-
Central Steel Wire or Fiberglass reinforced plastic (FRP)
-
Packing:
-
Wooden Drum
Quick Details
-
Brand Name:
-
HX
-
Model Number:
-
HX-GL2
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Outdoor duct and conduit
-
Product name:
-
Outdoor Optic Fiber Cable
-
Color:
-
Black
-
Certification:
-
CE/ROHS/ISO9001
-
Jacket:
-
PE Jacket
-
Length:
-
Custom Length
-
Cable Structure:
-
Multi-Loose Tube
-
Fiber options:
-
ITU G652D ,G657A,OM1,OM2,OM3,OM4
-
Strength member:
-
Central Steel Wire or Fiberglass reinforced plastic (FRP)
-
Packing:
-
Wooden Drum
|
|
|
G.652
|
G.655
|
50/125 μm
|
62.5/125 μm
|
|||||
|
Attenuation (+20°C)
|
@850nm
|
|
|
≤3.0dB/km
|
≤3.3dB/km
|
|||||
|
|
@1300nm
|
|
|
≤1.0dB/km
|
≤1.0dB/km
|
|||||
|
|
@1310nm
|
≤0.36dB/km
|
≤0.40dB/km
|
|
|
|||||
|
|
@1550nm
|
≤0.22dB/km
|
≤0.23 dB/km
|
|
|
|||||
|
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|||||
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|||||
|
Numerical aperture
|
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|||||
|
Optical fiber cable cut-off wavelength
|
|
≤1260nm
|
≤1450nm
|
|
|
|||||
|
Applicable: pipeline, overhead
|
|
|
|
|
|
|||||
|
Optic fibre cable
(in increments of 2 fibers)
|
Number of fibers
|
Number of casings
|
Number of filling ropes
|
Fiber optic cable diameter
(mm)
|
|
GYTA-2~6
|
2~6
|
1
|
4
|
9.2
|
|
GYTA-8~12
|
8~12
|
2
|
3
|
9.2
|
|
GYTA-14～18
|
14~18
|
3
|
2
|
9.2
|
|
GYTA-20~24
|
20~24
|
4
|
1
|
9.2
|
|
GYTA-26~30
|
26~30
|
5
|
0
|
9.2
|
|
GYTA-32~36
|
32~36
|
6
|
0
|
9.7
|
|
GYTA-38～48
|
38~48
|
4
|
1
|
10.5
|
|
GYTA-50~60
|
50~60
|
5
|
0
|
10.5
|
|
GYTA-62~72
|
62~72
|
6
|
0
|
11.5
|
|
GYTA-74~84
|
74~84
|
7
|
1
|
13.2
|
|
GYTA-86～96
|
86~96
|
8
|
0
|
13.2
|
|
GYTA-98~108
|
98~108
|
9
|
1
|
14.6
|
|
GYTA-110~120
|
110~120
|
10
|
0
|
14.6
|
|
GYTA-122~132
|
122~132
|
11
|
1
|
16.5
|
|
GYTA-134~144
|
134~144
|
12
|
0
|
16.5
|
|
GYTA-146~216
|
146~216
|
13-18
|
5-0
|
16.5
|
|
GYTA-288
|
288
|
24
|
0
|
16.5
|
|
Fiber Optic Cable Weight
(kg/km)
|
allowable tensile force
long term/short term
(N)
|
allowable flat pressure
long term/short term
(N/100mm)
|
bending radius
static/dynamic
(mm)
|
|||
|
80
|
600/1500
|
300/1000
|
10D/20D
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
80
|
|
|
|
|||
|
97
|
1000/3000
|
|
|
|||
|
109
|
|
|
|
|||
|
109
|
|
|
|
|||
|
126
|
|
|
|
|||
|
153
|
|
|
|
|||
|
153
|
|
|
|
|||
|
182
|
|
|
|
|||
|
182
|
|
|
|
|||
|
221
|
|
|
|
|||
|
221
|
|
|
|
|||
|
222
|
|
|
|
|||
|
283
|
|
|
|
|||
|
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
|
|
|
|
|||
Characteristics:
·Steel jacket offers high tension and crush resistance s
pecial gel in the tube offers critical protection for the fibers
·With steel central strength member
·PE jacket itself prevents UV,and UV material can be added
·to perform much better It's avalable under high and low temperatures
·anti-aging
Applications:
·Conduit/buried
·Connecting communication equipments
·Mulfi-cores wiring systems in data centers
Standard:

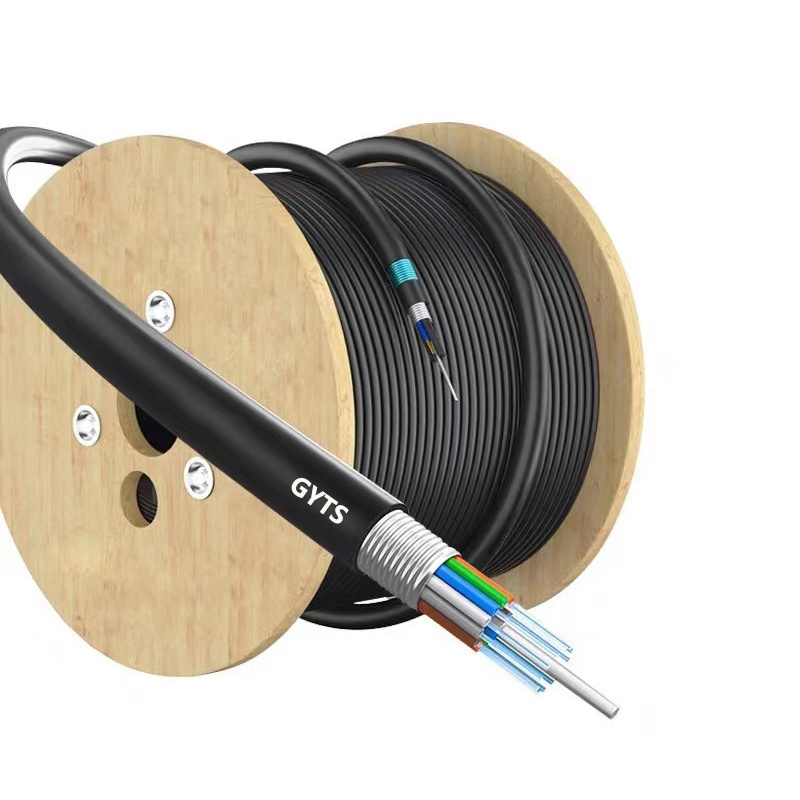

·GYTS complies with YD/T901-2009 and IEC 60794-1 standards
·YD/T 901-2009 & IEC 60794-1
