Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2650*1450*1750MM
-
Weight:
-
1000 kg
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Application:
-
Poultry Farm,Pets,Fish Farm
-
Color:
-
Blue and Yellow
-
Advantage:
-
High Capacity
-
Output:
-
0.35-0.40t/h
-
Main Power:
-
22-30 KW
-
Feeding Power:
-
11 KW
-
Modulating Power:
-
1.5 KW
-
Raw material:
-
Flour,corn meal,soybean meal,maize meal
-
Name:
-
Floating Fish Feed Pellet Machine
Quick Details
-
Max. Capacity:
-
500 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hanson
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2650*1450*1750MM
-
Weight:
-
1000 kg
-
Function:
-
Aniaml Feed Puffed Pellet Machine
-
Application:
-
Poultry Farm,Pets,Fish Farm
-
Color:
-
Blue and Yellow
-
Advantage:
-
High Capacity
-
Output:
-
0.35-0.40t/h
-
Main Power:
-
22-30 KW
-
Feeding Power:
-
11 KW
-
Modulating Power:
-
1.5 KW
-
Raw material:
-
Flour,corn meal,soybean meal,maize meal
-
Name:
-
Floating Fish Feed Pellet Machine
Poultry pellet production line/small feed mill plant/feed processing machine for cow pig chicken

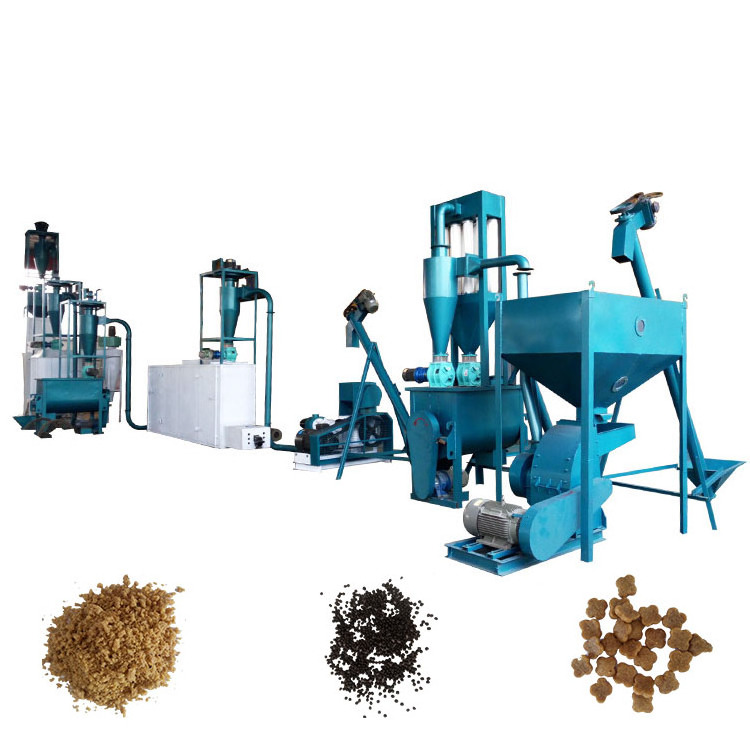

Fish Feed Production line Introduction
1.The whole fish feed production line including Crusher-Mixer-Fish feed machine-Dryer-Cooler-Oil spray machine-Packing machine.
2.The line min.capacity is 30-40 kg/h,max.capacity is 3-4 t/h.
3.The whole line is proper for medium or large farm,factory.
4.The line can use to make floating or sinking fish feed,pet feed,chicken feed etc.
Poultry pellet production line/small feed mill plant/feed processing machine for cow pig chicken
|
Model |
Screw diameter |
Capacity |
Main power |
Feeding power |
Cutting power |
Conditioning power |
|
DSP60 |
φ60mm |
180-200kg/h |
15kw |
0.75kw |
0.75kw |
0.37kw |
|
DSP70 |
φ70mm |
250-300kg/h |
18.5kw |
0.75kw |
0.75kw |
1.5kw |
|
DSP80 |
φ80mm |
350-400kg/h |
22kw |
1.1kw |
0.75kw |
1.5kw |
|
DSP90 |
φ90mm |
500-600kg/h |
37kw |
1.1kw |
1.1kw |
2.2kw |
|
DSP120 |
φ120mm |
700-800kg/h |
55kw |
1.1kw |
1.1kw |
2.2kw |
|
DSP135 |
φ133mm |
1000-1500kg/h |
75kw |
1.5kw |
2.2kw |
2.2kw |
|
DSP160 |
φ155mm |
1800-2500kg/h |
90kw |
2.2kw |
2.2kw |
3.5kw |
|
DSP200 |
φ195mm |
3000-4000kg/h |
132kw |
2.2kw |
3.0kw |
4.5kw |
Production line procedure
| Name | Introduction | Picture |
| Crusher |
The crusher machine is mainly used for grinding the raw materials like soybean,maize etc. |
|
| Mixer | The mixer machine is mainly be used to mix all kinds of raw material evenly, such as wheat meal, corn meal,sorghum meal,bone meal,meat meal and so on,it also can mix other micro- ingredients such as vitamins, amino acids, trace elements and other feed additives. | |
| Fish feed pellet machine | The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab. | |
| Dryer | The dryer can lower the temperature and moisture content of the feed pellet. | |
| Cooler | The cooler is adopting the counter-flow cooling principle,it can reduce the high temperature and moisture content,for large capacity fish feed production line,this is an necessary machine.For small capacity,the pellet can cool naturally. | |
| Oil spray machine | The oil spray machine is use to spray oil onto the surface of the feed pellet.First the smell can attract the fish to eat the pellet.Second it is better for storage. | |
| Packing machine | The packing machine can packing the finished feed pellet into bags,and 1-50kg per bag,thus it is more convenient for storage and transport.The process including filling,weighing,sealing. |
1. According to different purposes, you can choose aquatic particles and pets, animal particles.
2. According to different animals, as well as different stages of growth, you can choose different sizes, different types of particles.
