Quick Details
-
Mold Height(mm):
-
220 - 520 mm
-
Ejector Stroke(mm):
-
110 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
707 cm³
-
Injection Rate (g/s):
-
220 g/s
-
Injection Weight (g):
-
755 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
65 mm
-
Screw L/D Ratio:
-
18.5
-
Weight (KG):
-
8000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
480 mm
-
Model Number:
-
HY-2400
-
Brand Name:
-
HANYU
-
Power (kW):
-
36 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Injection Moulding Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Name:
-
Vertical Injection Molding Machine
-
Keyword:
-
Pet Preform Injection Making Machine
-
Product:
-
Household Appliances Injection Molding Machine
-
Used for:
-
Plasic Products
-
Plastic Type:
-
Thermoplastic
-
Clamping Force (kN):
-
2400
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
520mm
-
Distance between Tie Bars(Height)(mm):
-
520mm
-
Plasticizing Capacity(g/s):
-
30
-
Mold Height(mm):
-
220 - 520 mm
-
Ejector Stroke(mm):
-
110 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
707 cm³
-
Injection Rate (g/s):
-
220 g/s
-
Injection Weight (g):
-
755 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
65 mm
-
Screw L/D Ratio:
-
18.5
-
Weight (KG):
-
8000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
480 mm
-
Model Number:
-
HY-2400
-
Brand Name:
-
HANYU
-
Power (kW):
-
36 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Injection Moulding Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Name:
-
Vertical Injection Molding Machine
-
Keyword:
-
Pet Preform Injection Making Machine
-
Product:
-
Household Appliances Injection Molding Machine
-
Used for:
-
Plasic Products
-
Plastic Type:
-
Thermoplastic
-
Clamping Force (kN):
-
2400
Product Description
|
|

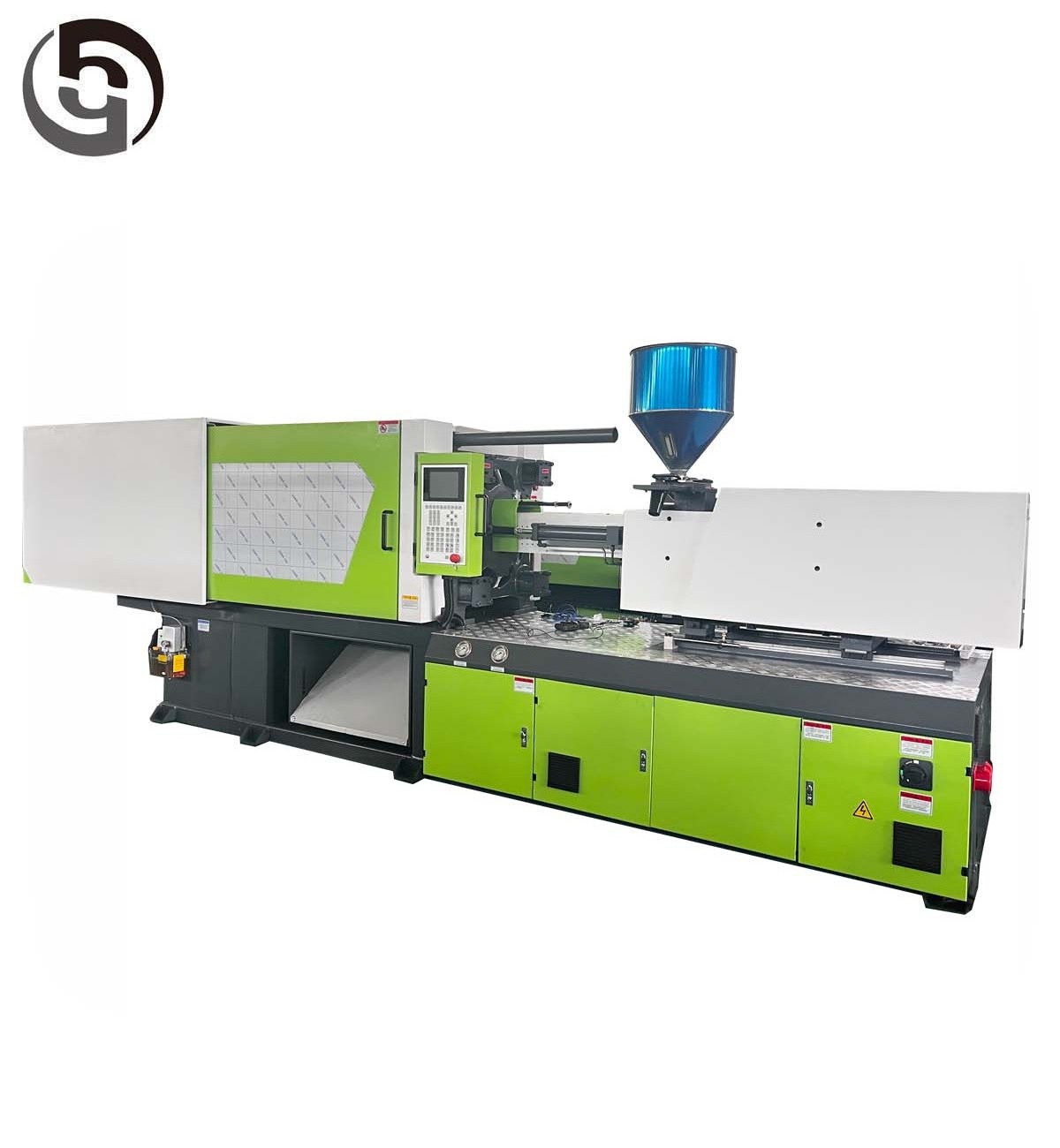

HY-2400 INJECTION MACHINE
|
|
|
||
|
Injection Unit
|
Model
|
A
|
B
|
||
|
|
Screw Diameter
|
60mm
|
65mm
|
||
|
|
Screw L/D Ratio
|
1:20 L/D
|
1:18.5 L/D
|
||
|
|
Injection Volume
|
707 cm³
|
830 cm³
|
||
|
|
Shot Weight
|
643g
|
755g
|
||
|
|
Plasticizing Capacity
|
220 g/s
|
242 g/s
|
||
|
|
Injection Pressure
|
30 g/s
|
34 g/s
|
||
|
|
Screw Speed
|
142 MPA
|
121 MPA
|
||
|
Clamping Unit
|
Clamping Force
|
2400KN
|
|
||
|
|
Opening Stroke
|
480MM
|
|
||
|
|
Space Between Tie-bars
|
520*520MM
|
|
||
|
|
Max. Mould Height
|
520MM
|
|
||
|
|
Min. Mould Height
|
220MM
|
|
||
|
|
Ejector Stroke
|
110MM
|
|
||
|
|
Hydraulic Ejection
|
70KN
|
|
||
|
General
|
Pump Pressure
|
16MPA
|
|
||
|
|
Motor Power
|
22KW
|
|
||
|
|
Heater
|
14.75KW
|
|
||
|
|
Machine Dimension(L*W*H)
|
5.8*1.5*2.2M
|
|
||
|
|
Machine Weight
|
8T
|
|
||
Related Products
Preform mold
Our Factory
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
