Quick Details
-
Weight:
-
400KG
-
Dimension(L*W*H):
-
1600*1700*1300MM
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Output capacity:
-
6m3/h
-
Working form:
-
S valve
-
Filling height:
-
0.7m
-
Particle size:
-
15mm max
-
Pressure Max:
-
15Mpa
-
Working pressure:
-
10Mpa
-
Hydraulic oil cooling:
-
Air cooling
-
Vertical distance:
-
25m max
-
Horizontal distance:
-
40m max
-
Pipe diameter:
-
80mm
-
Certification:
-
ISO
Quick Details
-
Power Type:
-
Electric
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Weight:
-
400KG
-
Dimension(L*W*H):
-
1600*1700*1300MM
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Output capacity:
-
6m3/h
-
Working form:
-
S valve
-
Filling height:
-
0.7m
-
Particle size:
-
15mm max
-
Pressure Max:
-
15Mpa
-
Working pressure:
-
10Mpa
-
Hydraulic oil cooling:
-
Air cooling
-
Vertical distance:
-
25m max
-
Horizontal distance:
-
40m max
-
Pipe diameter:
-
80mm
-
Certification:
-
ISO

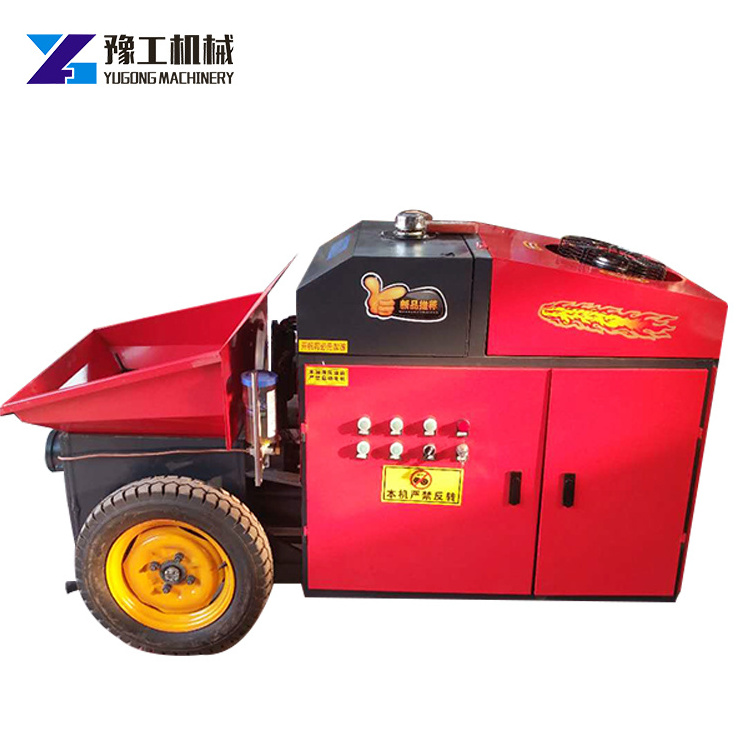

High performance mini concrete mixer pump mobile
The new type of secondary structural concrete pump is suitable for conveying fine-grained concrete in super high-rise building and column casting in construction floor group. It is the smallest concrete pump in China at present, mainly for some special construction conditions or narrow space. Construction conditions are affected by equipment size Of the limitations resulting in inconvenient construction or difficult to complete the construction progress and well-designed high-tech products.
Product details
| Output capacity | 6m3/h |
| Working form | S valve |
| Filling height | 0.7m |
| Particle size | 15mm max |
| Pressure Max | 15Mpa |
| Working pressure | 10Mpa |
| Hydraulic oil cooling | Air cooling |
| Vertical distance | 25m max |
| Horizontal distance | 40m max |
| Pipe diameter | 80mm |
| Product Keywords | mini concrete mixer pump,mini concrete pump,mobile concrete mixer |
Product display :
Spare parts
Product Application:
Concrete pumps are widely used in water conservancy projects, hydropower projects, slope support, underground construction operations, the basic filling project, the construction of large group of buildings and the construction of column pouring mortar and other ordinary buildings. Low cost, high work efficiency, saving a lot of labor and material resources for buyers.
Packing and Shipping
